Dyeing Equipment Cases: Dye Vessel & Nozzle Component Protection

Transit damage to dyeing equipment rarely shows up as a broken part. It shows up as invisible corrosion and loss of accuracy: pitting on a vessel inner wall, rust blocking a nozzle micro-orifice, a score across a flange sealing face, rust bloom on a guide roller, or chloride stress-corrosion cracking beside a stainless steel weld. None of these are obvious at goods-in inspection, yet all of them surface on the first fabric batch after start-up as shade variation, streaks, dye spots, and batch-to-batch colour differences. The conclusion is unambiguous: dyeing equipment is a wet-process, aggressive-chemical, precision-sensitive asset. The packaging for vessels, nozzles, piping, and drive parts must deliver four capabilities at once - divided-cavity location, chemical isolation, sealed moisture control, and vibration-damped support. A crate stuffed with filler, stretch wrap, or bare parts tied together does not qualify as packaging.

A dyehouse is itself a corrosive environment. Dyestuffs, Glauber salt, soda ash, caustic soda, hydrogen peroxide, acetic acid, levelling agents, and chelating agents persist in the air and in condensate, so equipment surfaces are permanently in a wet electrolyte condition. Between the factory gate and the dyehouse, those same parts must survive a sea crossing, dockside rain and snow, the condensation that beads on cold stainless every night inside a container, and several rounds of transfer handling. Packaging that considers only impact while ignoring chemistry and humidity places the equipment directly in the worst possible exposure. This article is written for printing and dyeing machinery builders, dyeing machine component suppliers, dyehouse retrofit buyers, and export project owners. It sets out graded protection schemes for dye vessels and nozzle-class components, material compatibility criteria, insert and sealing design, standard-based validation routes, and on-site acceptance points, and it explains the engineering capability JUNZHJIA offers in custom inserts and OEM/ODM supply.

Table of Contents

• 1. Why Dyeing Equipment Components Need a Dedicated Parts Case
• 2. Dye Vessel and Nozzle Component List with Protection Grading
• 3. Failure Modes: Corrosion, Orifice Blockage, Deformation and Sealing-Face Damage
• 4. The Dyehouse Chemical Environment and Material Compatibility
• 5. Size and Weight Boundaries: Vessels, Nozzles and Piping
• 6. Dyehouse Parts Case Structure and Corrosion-Resistant Material Selection
• 7. Insert Design: Contoured Cradles, Isolated Cavities and Chemical Isolation
• 8. Precision Protection for Nozzles, Injectors and Valve Assemblies
• 9. Sealing and IP Rating Decisions for Dyehouse Duty (IEC 60529 / GB/T 4208)
• 10. Humidity and Residual-Dye Control: Moisture, Colour Carryover and Cleanliness
• 11. ISO 9227 Salt Spray Validation in a Dyeing-Chemical Atmosphere
• 12. Vibration and Shock Validation Path for Long Vessels and Nozzles
• 13. Stacking, Lifting and Unpacking Acceptance in a Wet-Process Plant
• 14. OEM/ODM Customization and Life-Cycle Management for Dyehouse Cases
• Frequently Asked Questions
• Conclusion & Related Reading

1. Why Dyeing Equipment Components Need a Dedicated Parts Case

A dyeing machine is a classic combination of wet process, aggressive chemistry, and high precision. Its components leave the factory already machined to demanding accuracy, and much of that accuracy is squandered at the packaging and transfer stage.

A dye vessel keeps its precision on the inside. The value of a vessel body, cylinder, or head is not in the weight of stainless steel but in the internal surface roughness, roundness, weld soundness, and the flatness of the flange sealing face. The smoother the inner wall, the less dyestuff and auxiliaries can cling to it and the easier it is to rinse clean. Once pitting or a score appears on that wall, residual liquor lodges in the defect and becomes a shade that cannot be washed out, directly causing colour variation between batches.

A nozzle or injector keeps its precision in a micro-orifice. Nozzles on overflow dyeing machines, air-flow nozzles on air-jet machines, and injector orifices commonly have bore diameters in the millimetre or sub-millimetre range. Orifice roundness and internal finish govern dyeing uniformity. A blockage, a rust film, or a burr at the orifice distorts the jet flow field and produces water-mark patterns, streaks, and crease marks on the fabric.

Flange and sealing faces tolerate zero error. Once a flange sealing face is dented or scored, even a new gasket may not seal reliably. High-temperature, high-pressure dyeing machines operate at elevated pressure and temperature, so a sealing-face defect can progress to leakage or even liquor blow-out, which is a safety risk rather than merely a quality issue.

Vessel ovalisation is the hardest responsibility to assign. Once a dye vessel is ovalised by transit compression, it shows up on line as periodic crawling and left-right shade variation, but whether the defect came from a machining roundness error, a local transit crush, or site lifting force is rarely known until weeks after start-up, by which time all three parties disagree and the site holds no evidence. Recording vessel roundness readings, insert cradle clearances, and flange-cap impression status on the signed opening-inspection sheet ties every anomaly to a specific time and owner, in essence building a traceable chain of responsibility.

Key reminder: damage to dyeing equipment components is cheap to prevent and expensive to reverse. Replacing one nozzle may not cost much, but the downgrading of an entire greige batch and the missed delivery window that follow are often dozens of times the packaging investment.

Boundary statement: everything described here is outer transport packaging. It does not participate in the design or manufacture of the dyeing machine, and it changes neither the machine's mechanical behaviour nor its process or safety performance. Compliance and certification of the equipment body itself, including any pressure-equipment requirements, remain governed by the applicable regulations and standards rather than by this packaging specification.

For a dyeing machinery builder or a component supplier, a well-designed parts case also doubles as standardised tooling: a case series dimensioned by vessel diameter and nozzle family cuts storage and circulation cost by far more than the unit price of the case itself. The reuse assessment method is discussed in protective case service life and reuse years.

2. Dye Vessel and Nozzle Component List with Protection Grading

Sensitivities differ sharply between dyeing components, so grade each item before packing rather than mixing everything into one box.

The table shows that inner-surface integrity, micro-orifice cleanliness, and sealing-face flatness form the three physical protection themes for dyeing components, while chemical isolation and humidity control form a fourth theme running through every part.

3. Failure Modes: Corrosion, Orifice Blockage, Deformation and Sealing-Face Damage

Failures caused by packaging defects typically appear days to weeks after the line starts, and they are hard to trace. The main modes fall into eight groups.

Pitting and crevice corrosion. The passive film on stainless steel breaks down locally in chloride-bearing environments, producing pits. Crevices such as flange interfaces, the space between bolt and gasket, and weld undercut are the most vulnerable locations. When marine salt fog is combined with a chloride-containing dyehouse atmosphere, the risk rises markedly.

Chloride stress-corrosion cracking. Austenitic stainless steel cracks when tensile stress, chloride ions, and elevated temperature coexist. Weld heat-affected zones are high-incidence locations. Chloride-bearing contaminants in packaging, including some low-grade foams, recycled paper, and certain cleaning agent residues, can act as the chloride source.

Nozzle micro-orifice rust blockage and edge damage. Once a micro-orifice rusts or is plugged with fibre dust, cleaning is extremely difficult. When the orifice edge is struck by a hard object, the resulting burr distorts the flow field and cannot be repaired on site.

Vessel inner-wall scores and dents. Hard contact between the inner wall and section steel, bolts, tools, or the case wall, repeated under vibration, creates long scores and local dents that destroy inner-wall roughness, trap residual liquor in the defects, and cause shade variation across batches.

Flange sealing-face damage. A sealing face is a mirror-grade mating surface. A raised burr or a dent prevents the gasket from seating evenly and leads to leakage at elevated temperature and pressure.

Thin-wall deformation. Air nozzles, baffles, and flow guides have low bending stiffness. Local compressive load or unsupported spans readily produce plastic deformation that cannot be recovered.

Guide roller surface and rubber layer damage. Roller surface roughness and rubber hardness directly govern fabric tension and friction. Scores snag the fabric, and compression marks cause running run-out.

Electrical moisture ingress and insulation drop. Inverters, control boards, and sensors are moisture sensitive. Condensation driven by container day-night temperature swings markedly reduces insulation resistance and can cause tripping on energisation or component corrosion.

4. The Dyehouse Chemical Environment and Material Compatibility

When selecting packaging materials for dyeing equipment, chemical compatibility must rank alongside impact resistance as a primary criterion.

Contact and non-contact contamination. Packaging materials can affect equipment through two routes: direct contact transfer of residual chemicals, plasticisers, or sulphides, and volatile species that concentrate inside a sealed case and then condense onto metal surfaces. Inserts should therefore use low-outgassing, low-sulphur, low-chloride closed-cell materials rather than low-grade recycled stock that may release corrosive vapours.

Awareness of the stainless passive film. The corrosion resistance of stainless steel comes from its passive surface film. Once that film is contaminated with free iron, for example by mixing with carbon steel parts, handling with carbon steel tools, or direct contact with an unprotected carbon steel case, a contamination site forms and rust appears as soon as moisture is present. Mixing materials in one case is the most common and most easily overlooked error in dyeing equipment packaging.

Chemical tolerance of non-metallic parts. Seals (NBR, EPDM, FKM, PTFE, graphite), rubber roller covers, hoses, and sight glasses differ widely in their tolerance to solvents, acids, alkalis, and ozone. They should be packed separately by material and must not be left in prolonged contact with plasticiser-bearing materials.

Pre-treatment of residual liquor and auxiliaries. Rinsing and drying must be completed before dispatch. If dyestuff, levelling agent, or acid and alkali liquor remains on a surface, it will continue to absorb moisture inside a sealed case and form an electrolyte film, corroding far faster than a dry, clean surface would.

5. Size and Weight Boundaries: Vessels, Nozzles and Piping

Dyeing components span an enormous size range, from a few millimetres for an orifice part to several tonnes for a vessel body. Packing strategy must be graded accordingly.

Three grading principles apply. First, grade by handling method: below 25 kg a single person can lift; 25 to 50 kg needs two people or an aid; above 50 kg requires lifting points or forklift pockets. Second, grade by stiffness: thin-wall parts and slender tube bundles need multi-point support with spacing controlled to an empirical maximum of one third of the component length, to avoid amplification of first-mode bending resonance. Third, grade by sensitivity: sealing faces, micro-orifice parts, and electrical parts should be cased separately and never mixed with heavy items, sharp-edged parts, or unprotected carbon steel.

6. Dyehouse Parts Case Structure and Corrosion-Resistant Material Selection

Dyeing equipment parts cases face a triple demand of heavy load, precision, and corrosion resistance, so the case structure must balance load capacity, stiffness, weight, and chemical inertness.

Four selection criteria. First, impact and low-temperature toughness: rotomoulded PE retains useful toughness at low temperature and suits heavy loads over outdoor routes. Second, seal compatibility: gasket material (EPDM, silicone, neoprene) must match the temperature, ozone, and contaminant conditions of the transport route. Third, chemical inertness and low outgassing: avoid regrind with a high proportion of sulphur- or chlorine-bearing additives. Fourth, flame retardancy and static control: for cases holding electrical parts, assess the material against the UL94 flammability classification, and for cases containing control boards assess surface resistance and specify antistatic inserts; the relevant design points are covered in ESD shielded protective case design.

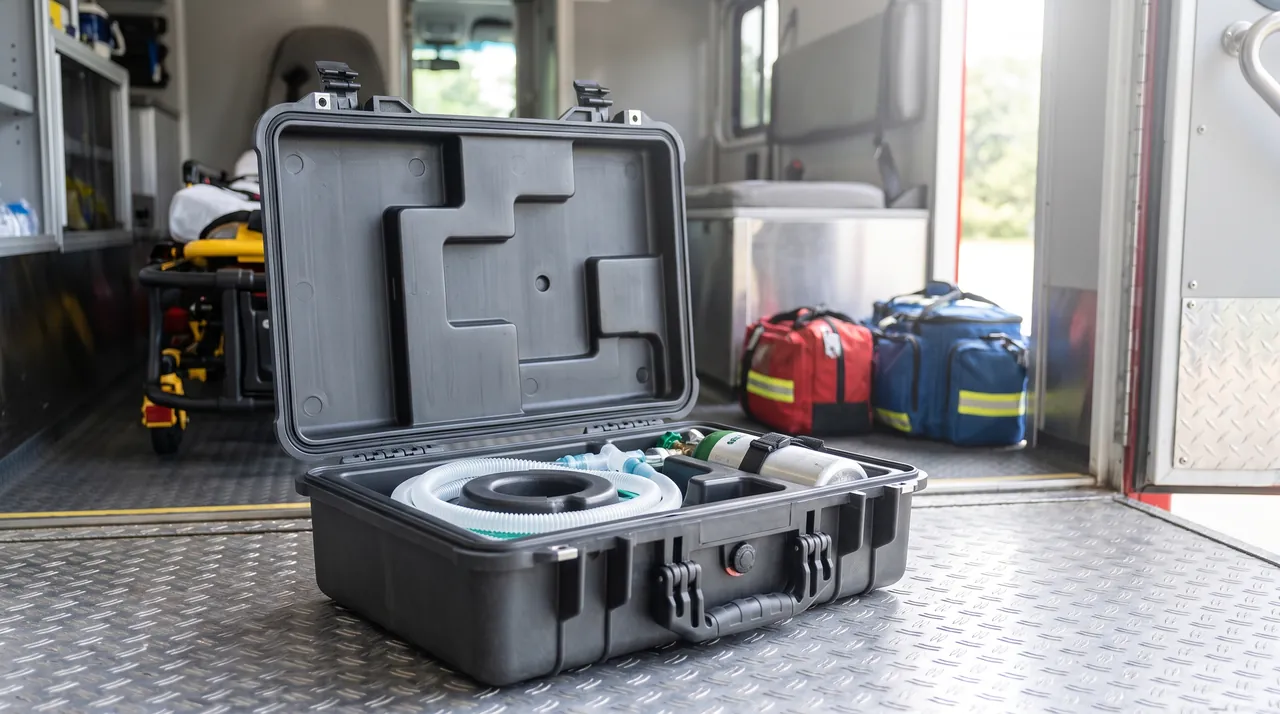

7. Insert Design: Contoured Cradles, Isolated Cavities and Chemical Isolation

The insert is the functional core of a parts case. For dyeing components it must solve four problems at once: location, cushioning, isolation, and cleanliness.

Vessel bodies: horizontal half-round cradle. When a vessel body lies horizontally, the insert surface in contact should be a contoured channel covering more than a half circle, creating surface contact to lower contact stress. Cradle positions should avoid welds and nozzle openings, and axial stops at both ends prevent sliding. The vessel mouth and flange face must receive a soft protective cap; tape must never be applied directly to a sealing face.

Nozzles and micro-orifice parts: one piece per cavity. Micro-orifice parts must occupy a dedicated cavity with a 3 to 5 mm gap to the cavity wall, lined with low-hardness EVA or flocked fabric. Orifices receive a dedicated plug in PE or silicone; cotton waste and paper wadding are prohibited because they shed debris.

Valve assemblies and fittings: compartments plus end caps. Valve blocks go one per compartment, ports receive protective caps, and threaded areas are wrapped in anti-rust paper. Pipework is grouped by bend radius and must never be forced into the case.

Electrical parts: moisture and ESD double layer. First into an ESD shielding bag, then into a foil barrier bag with desiccant, then into a damped insert cavity. Gasket material and compression design are covered in protective case seal materials and gasket selection.

Isolation design: material zoning. Stainless parts, carbon steel parts, non-metallic parts, and electrical parts should be separated inside one case by physical dividers, preventing iron-transfer contamination and electrostatic risk.

8. Precision Protection for Nozzles, Injectors and Valve Assemblies

Nozzles are the "low unit cost, high consequence" components of dyeing equipment, and they demand particularly careful protection.

Protecting orifice geometry comes before protecting appearance. Orifice roundness and edge chamfer determine the jet flow field. The core packaging principle is zero contact at the orifice: a dedicated plug should support the orifice from inside or from its inner edge rather than pressing and sealing from outside.

Preventing secondary contamination. Nozzles removed from service usually carry residual liquor. They must be cleaned, dried, and only then packed. A damp nozzle can show rust spots within 72 hours inside a sealed bag.

Preventing mutual collision. If nozzles of the same size are heaped in one compartment, transport vibration causes them to rub and strike each other's orifices. The practical rule is one slot per piece with slot spacing at least 1.2 times the nozzle maximum outer diameter.

Concentricity protection for injectors and mixers. Injectors are often built from several telescoping pipe sections whose concentricity and clearance govern mixing efficiency. They should be fixed by end-face stops at both ends with elastic support at mid-span, preventing relative displacement of the sections.

Valve pilot orifices and sealing faces. Solenoid and pneumatic valve pilot orifices are extremely small and need filter-style protective caps; valve seat sealing faces should receive soft protective films.

Quantified drying and rust prevention. A humidity indicator card and an appropriate quantity of desiccant (silica gel or molecular sieve) should be placed inside the sealed bag so that relative humidity at arrival stays below 40 percent. The humidity indicator card is the most economical and effective evidence for goods-in acceptance.

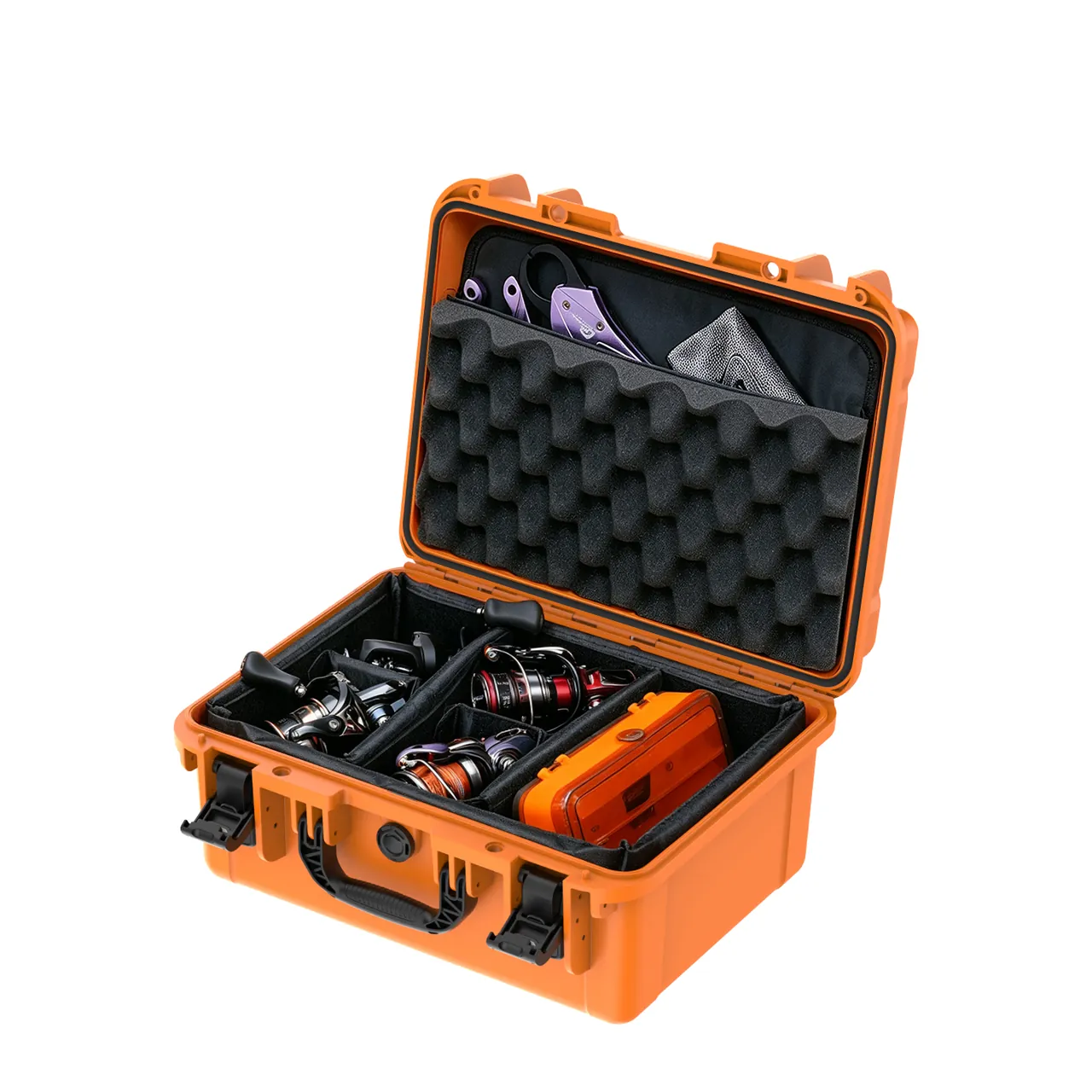

9. Sealing and IP Rating Decisions for Dyehouse Duty (IEC 60529 / GB/T 4208)

Ingress protection is a core specification for dyeing equipment parts cases, but it is important to understand what it does and does not prove.

IEC 60529 and GB/T 4208 describe one and the same system. The two documents give the IP code identical meanings: the first digit deals with solid foreign objects and dust (0 to 6), the second with water (0 to 9). Dyeing equipment cases sit mostly at IP65 and IP67.

Three cautions that decide whether the rating is worth anything. First, an IP code says nothing about corrosion. IP67 proves that water does not get in; it does not prove that chloride will not pit the vessel wall, which has to be argued separately through something like ISO 9227. Second, an IP code says nothing about shock, so mechanical performance needs ISTA or GB/T 4857 evidence behind it. Third, tightness carries its own penalty: a fully sealed cavity builds a pressure differential whenever temperature or barometric pressure moves, which can make the lid hard to open or pull the gasket out of position, so routes with a wide differential generally deserve a pressure equalisation valve; the trade-off is set out in protective case pressure equalisation valve function and selection.

10. Humidity and Residual-Dye Control: Moisture, Colour Carryover and Cleanliness

For dyeing components, humidity control is not only about rust prevention; it directly affects whether colours carry over.

Why humidity is the number one enemy of dyeing equipment. A wet surface forms an electrolyte film that raises the rate of stainless pitting, carbon steel rusting, and coating corrosion by an order of magnitude. At the same time, a humid environment re-dissolves residual dyestuff and auxiliaries and allows them to migrate, producing colour carryover.

A three-level moisture strategy for a dyehouse package. At component level, rinse and dry, then coat carbon steel with rust-preventive oil and cap every machined face. At unit level, bag a piece or a group in foil with desiccant and a humidity indicator card, choosing the desiccant mass from the bag volume and the expected transit time rather than from habit. At case level, rely on a gasket that holds its compression, add a pressure equalisation valve so night-time cooling does not suck the wall inward, and top up with slow-release desiccant inside the cavity.

Cleanliness and particulate control. Cleanliness for hydraulic and pneumatic parts can be managed along the ISO 4406 particle contamination level approach. The packing area should be remote from cutting, grinding, and woodworking zones, and no wood shavings or foam debris should be present inside the case.

Materials that must stay out of a dyeing parts case. Timber in direct contact with a flange face is forbidden, because the wood holds moisture against a mirror surface. Newsprint and recycled paper are equally unsuitable as filler, since their ink and chloride content cannot be controlled and will transfer to stainless. Sulphur-cured rubber and low-grade regrind foam release corrosive vapours inside a closed cavity. Cotton waste and felt must never be used to plug a micro-orifice, because the fibres they shed are almost impossible to remove.

Opening, cleaning, and verification. On arrival, unpack in sequence from outside to inside and from top to bottom, rinse with clean compressed air or deionised water where the inner vessel wall requires it, and then check for surface residue; the method is described in protective case cleaning and maintenance practice.

11. ISO 9227 Salt Spray Validation in a Dyeing-Chemical Atmosphere

Both the dyehouse and the marine transport route are aggressive corrosion environments, so salt spray testing is an important basis for validating case and component corrosion protection.

ISO 9227 neutral salt spray (NSS), read through a dyehouse lens. The test sprays a 5 percent sodium chloride solution, held at pH 6.5 to 7.2, into a chamber maintained at 35 degrees Celsius. Durations of 24, 48, 96, 240, and 480 hours form the usual menu. What matters commercially for a dyeing project is that salt spray hours cannot be converted into years of outdoor service; the result serves as a comparison tool between candidate schemes and a consistency check across repeat batches, not a service-life prediction.

Test subjects should be layered. Validate separately: the case metal hardware (hinges, latches, lifting points); the insert and gasket materials; and representative component samples such as a flange coupon or a carbon steel bolt. Only layered data can localise the corrosion source.

Optional advanced methods. For export projects on tropical and oceanic routes, cyclic corrosion testing, which alternates salt spray, drying, and humid phases, reflects real atmospheric corrosion behaviour more closely than continuous salt spray.

Result criteria and how to write them into the order. Judgement normally rests on hours to first red rust, or on corrosion-spot count per unit area read against a rating chart. Write the method, the duration, the pass threshold, and the consequence of failure into the purchase order; an order that merely says the case must "pass salt spray" gives the dyehouse no basis on which to reject a marginal delivery.

Specific relevance to stainless steel. Type 316L generally performs better than 304 in NSS, but pitting and crevice corrosion in chloride environments still require a combination of passivation treatment, prevention of iron contamination, and maintenance of dryness.

12. Vibration and Shock Validation Path for Long Vessels and Nozzles

Beyond corrosion and humidity, mechanical damage remains a primary risk for dyeing components and must be validated with reproducible test methods.

The GB/T 4857 series, applied to a vessel-and-nozzle case. Stacking, fixed-frequency and random vibration, horizontal impact and drop, and water spray are the test families a dyeing parts case most often needs. For a long vessel body the vibration run is decisive, because cradle spacing and axial stops are what stop the body creeping inside the insert; for a micro-orifice nozzle box the drop sequence carries more weight. Implementation points are set out in GB/T 4857 transport packaging testing for protective cases.

The ISTA series, chosen by how the case actually travels. ISTA procedures are layered by distribution format: Series 1 covers non-simulation integrity performance, Series 2 partial simulation, Series 3 general simulation, and Series 6 member-specific protocols. A dyeing retrofit leaving an inland plant as a full container load usually lands on a different series from one moving as groupage with repeated transfer handling. Selection guidance is covered in ISTA transport testing procedures and protective case validation.

ASTM D4169, for multi-leg routes into North America. Rather than a single fixed sequence, ASTM D4169 builds the test profile from the declared distribution cycle, which suits a dyeing retrofit that travels by truck, rail, and sea before it reaches the dyehouse. The assurance level and the distribution cycle must be stated in the test plan, because an undeclared cycle yields a result nobody can reproduce; see ASTM D4169 distribution cycle testing for protective cases.

Three checks that must follow testing. First, functional check: nozzle flow, valve actuation, electrical insulation. Second, geometric check: flange sealing-face flatness, vessel roundness, thin-wall part flatness. Third, cleanliness check: presence of insert debris, foreign objects, and condensate traces inside the case.

Where MIL-STD-810H fits the dyeing case. Dyeing vessels and nozzles care most about behaviour under the combined "dye-liquor residue + auxiliary erosion + humidity-heat cycling" duty, and MIL-STD-810H assembles temperature-humidity cycling, humid heat, salt fog and vibration-shock methods into a referenceable set of environmental test methods. Citing it to describe the humidity-heat and vibration test conditions along the dyehouse-to-sea route is a reasonable methodological citation; it must still be stated clearly that it is only an environmental-adaptability verification method, not equivalent to military certification, and it does not imply any military approval of the product. See MIL-STD-810H environmental testing and protective case compliance.

The cases described here serve only as outer transport packaging. They are not part of the equipment's own design or manufacturing, and do not alter the equipment's mechanical or process performance; safety and certification requirements for the equipment itself remain governed by the applicable regulations and standards.

Southeast-Asia humidity and inland-plateau transit combinations. A dyeing vessel or nozzle exported to Southeast Asia first endures the "high humidity + high salinity + sustained container heat" dyehouse-to-port leg; if it then transits to an inland plateau, the same case must also face low pressure and sharp day-night temperature swings. The former accelerates stainless pitting and dye-residue migration together, the latter tests case-material toughness and gasket low-temperature flexibility — once the gasket hardens and loses rebound, a case that passed in the south may leak in the north. Material and seal selection are covered in protective cases in extreme temperature environments.

13. Stacking, Lifting and Unpacking Acceptance in a Wet-Process Plant

Size the base case for the container, not the truck. A dyeing retrofit exported in a 40-foot container is stacked higher, and for far longer, than the same crate would be on a domestic run, and the lowest case in the column absorbs the whole upper load plus weeks of sustained vibration. Work the base load out as stacked layers multiplied by unit weight multiplied by a factor of at least two, then print the permitted stack height on all four sides.

Lifting a vessel case without distorting it. A vessel body weighing several hundred kilograms must never be slung from a single point, because the resulting bending moment ovalises the shell. Mark the permitted two-point or four-point configuration on the case, insist that the sling passes through the designated fittings rather than around the body, and make sure the forks of a forklift enter the pallet pockets fully so the base is not crushed locally. Wheeled heavy-duty case selection is covered in protective case wheels and trolley handle structure.

Orientation and attitude marking. Dyeing components often have a definite "this way up" requirement, for example vertical pumps and some sensors. Mark all four sides and fit a tilt indicator inside the case so that any overturning during transit can be identified at arrival.

Unpacking sequence for a dyehouse delivery. Photograph the case exterior and the tilt indicator before anything is opened. Break the seal, then read and record the humidity indicator card while the cavity is still closed. Take out the small precision items and the electrical parts before the vessel body, tick off the packing list against what is present, and confirm that every orifice plug and port cap came back. Finally, run a free-iron check on the stainless surfaces with a ferroxyl test solution or, as a quick first indication, a magnet.

Case recovery and reuse. Reusable cases should be cleaned, dried, and inspected for gasket and latch condition after recovery, and assessed for lock replacement or upgrade per protective case lock and customization options. A spot seal check before reuse is recommended.

Preventing the most common human-caused damage. On site, the most frequent damage does not come from transport at all but from unpacking and secondary handling: cutting deep into the insert with a utility knife, levering stainless parts with a carbon steel pry bar, dropping removed bolts onto the vessel inner wall, and using one forklift to move both stainless and carbon steel parts. These practices should be explicitly prohibited in the work instruction.

14. OEM/ODM Customization and Life-Cycle Management for Dyehouse Cases

How a dyehouse insert project actually runs. It starts with the component schedule - vessel diameters and wall thicknesses, nozzle bore sizes, unit weights, and the transport route with its environmental conditions. Design then fixes case structure, cavity layout, and the sealing and desiccant strategy. Prototyping follows, normally as CNC-milled EVA or a die-cut laminate, and its real purpose is to prove that a heavy vessel body can be lifted out by two people without levering against the insert; process detail is in EVA foam insert custom process. Functional validation then covers the seal (target IP rating), vibration and shock (ISTA or GB/T 4857), and salt spray (ISO 9227) where the contract asks for it. Pilot batch, acceptance, and volume delivery close the sequence.

Acceptance rules for repeat dyehouse orders. Once a case becomes standard tooling, incoming inspection should be decided by sampling rather than by 100 percent checking: AQL plans work well, with the inspection list covering appearance, insert cavity dimensions, gasket compression, seal integrity, and marking. Two substitution risks deserve explicit clauses, because both are common in this market - regrind EVA passed off at a density it does not have, and ordinary PE shipped in place of LLDPE; see how to identify genuine versus inferior protective cases and custom case acceptance and AQL sampling plans.

Tooling economics for a vessel range. A dyehouse rarely buys one case; it buys a series that covers cylinder diameters from, say, 300 mm to 1200 mm. Whether each size justifies its own mould or should share a common shell with different inserts is a straightforward amortisation question once annual volumes are known; see protective case custom mould cost analysis.

Keeping a case register. Note the date each case enters service, the number of trips it has made, any repair, and the date the gasket was last changed; the humidity indicator card reading on each arrival is a useful early-warning field to record alongside them. Service life assessment is covered in protective case service life and reuse years.

JUNZHJIA engineering capability. JUNZHJIA is the protective-case brand of Kexin New Materials (Guangdong) Co., Ltd., and works directly with dyeing machinery builders and component suppliers. Starting from vessel and nozzle models, the JUNZHJIA engineering team designs contoured cradles that avoid weld seams and nozzle openings, divides a case into chemically zoned cavities, and matches gaskets and pressure equalisation valves to the model. Test documentation for IP rating, vibration and shock, and ISO 9227 salt spray is available for export projects, and labelling, instructions, and traceability coding are produced to the destination country's requirements. Wholesale, agency, and OEM/ODM supply are all supported.

Frequently Asked Questions

Q: What exactly is the difference between a dyeing equipment parts case and an ordinary toolbox?

A: The difference lies mainly in four areas. First, chemical compatibility: an ordinary toolbox considers only mechanical protection, whereas a dyeing equipment parts case must have its insert, gasket, and label materials assessed for compatibility with dyestuffs, acids, alkalis, and oxidising agents so that no leachable or chlorine- or sulphur-bearing species contaminates stainless parts. Second, moisture control: an ordinary toolbox normally has no desiccant, humidity indicator card, or pressure equalisation valve, yet a dye vessel or nozzle can show rust spots within 72 hours in a damp sealed environment. Third, inner-surface protection: an ordinary toolbox uses grid foam or cut-to-size sponge, while dyeing components need contoured cradles and a zero-contact orifice design. Fourth, validation requirements: dyeing equipment cases normally must supply IP rating, vibration and shock, and salt spray test documentation so that the machinery builder can hand it to the end user. It is therefore closer to a combined tooling and packaging asset than a simple storage container.

Q: What problems are most likely to occur on vessel inner walls and flange sealing faces in transit?

A: The typical inner-wall problems are scores and dents. When the vessel contacts section steel, bolts, or any hard unprotected object, repeated micro-motion under vibration produces long scores and local dents that destroy the inner-wall roughness, trap residual liquor in the defects, and create a shade that cannot be washed out, directly causing colour variation between batches. The flange sealing face is a zero-tolerance item: once a mirror-grade mating surface takes a dent or a raised burr, even a new gasket will not seat evenly, and under high temperature and pressure the defect progresses to leakage or blow-out, which is a safety risk. There are also two hidden risks. The first is free-iron contamination: mixing stainless with unprotected carbon steel, or handling stainless with carbon steel tools, creates a contamination site that rusts as soon as moisture appears. The second is chloride stress-corrosion cracking, where weld residual-stress zones crack when chloride and temperature coexist. The countermeasures are surface-contact cradles, soft protective caps on sealing faces, material zoning, and dry moisture-controlled packaging.

Q: How should nozzles and injectors be fixed so their orifices are neither blocked nor damaged?

A: The core principles are zero contact at the orifice and one piece per cavity. First, an orifice plug should support the orifice from inside or from its inner edge rather than pressing and sealing from outside, because external pressure can alter the edge chamfer and roundness. Second, no compartment should ever hold two or more nozzles; sustained micro-motion under vibration makes them rub together and strike each other's orifices, so the practical rule is slot spacing of at least 1.2 times the nozzle maximum outer diameter. Third, leave a 3 to 5 mm gap between the nozzle and the cavity wall and line it with low-hardness EVA or flocked fabric to avoid hard contact. Fourth, never plug micro-orifices with cotton waste, paper wadding, or felt, because these shed debris and leave fibre residue inside the orifice. Fifth, nozzles removed from service carry residual liquor, so they must be cleaned and dried before being bagged with desiccant and a humidity indicator card. Sixth, where an injector is built from several telescoping pipe sections, fix it with end stops at both ends and elastic mid-span support to prevent relative displacement that would degrade concentricity.

Q: Why is a timber crate unsuitable for dyeing equipment components?

A: Timber crates present four difficult problems for dyeing equipment packaging. First, outgassing and contamination: wood and its preservative treatments can release organic acids, chlorides, or sulphides that concentrate inside a sealed crate and then condense on stainless surfaces, becoming a trigger for pitting and stress-corrosion cracking; some timber packaging also carries pest and mould risk. Second, debris shedding: wood shavings and fibres that enter nozzle micro-orifices or valve pilot passages are extremely hard to remove and cause restricted flow and malfunction. Third, poor controllability: cushioning, location, and sealing in a timber crate depend heavily on manual filling, so consistency and traceability between batches are weak, making it hard to support IP rating claims and reproducible transport testing. Fourth, cross-border compliance: exported timber packaging normally must satisfy ISPM 15 heat-treatment or fumigation requirements, adding process steps and cost. By comparison, a plastic or composite case with custom inserts, gaskets, and a pressure equalisation valve offers clear advantages in cleanliness, sealing, reproducibility, and batch consistency, and it is far easier to develop into a standard case series.

Q: What protection rating should a parts case achieve? Is IP65 enough?

A: It depends on how the case travels and where it will be opened. For an inland retrofit moved by truck between plants, IP54 or IP65 is usually sufficient: dust tight and protected against water jets is enough to survive loading in the rain. For a sea freight delivery that will sit on a dock or be handled in the wet, IP67 - dust tight and able to survive 30 minutes at one metre - is the practical floor. IP68 only makes sense if the case will genuinely be immersed, and the conditions must then be agreed in writing. Three cautions matter more than the digit itself. An IP code says nothing about corrosion, so a case holding stainless nozzles still needs an ISO 9227 salt spray assessment. It says nothing about impact, so the mechanical claim rests on ISTA or GB/T 4857 evidence. And a fully sealed case traps a pressure difference, so on a long sea route the lid may be hard to open and the gasket may be drawn out of its groove - a pressure equalisation valve solves both problems at once while still keeping water out.

Q: How can salt fog corrosion and condensation be prevented during marine transport?

A: Treat it as three separate problems, because they fail independently. Contamination is the first: rinse and dry the parts before dispatch, keep carbon steel oiled and stainless passivated, and cap every machined flange face so nothing touches it. Moisture is the second: bag each piece or group in foil with a desiccant load sized to the bag volume and the transit duration, add a humidity indicator card, and aim for a reading below 40 percent on arrival. The cavity is the third: choose an EPDM or silicone gasket that holds its compression, add a pressure equalisation valve so that night-time cooling does not pull the gasket out of place, and include slow-release desiccant in the case. Handling discipline does the rest - keep the case off the container floor and away from the walls, never stow it beside rusty metal or drums of chemicals, and unpack as soon as it arrives. If corrosion performance is contractual, name the ISO 9227 method, the duration, and the pass criterion in the order rather than leaving them to be argued after a failure.

Q: Will insert materials react with dyestuffs or chemicals?

A: They can, so selection must include a compatibility assessment. There are three common risk classes. The first is plasticiser and additive migration: low-grade PVC and regrind foam can release plasticisers, sulphides, or halogens that concentrate inside a sealed case, contaminate stainless surfaces, and initiate pitting, so inserts should preferably use low-outgassing, low-chloride, low-sulphur closed-cell PE or EVA. The second is moisture uptake and residue: open-cell foam absorbs moisture and chemicals and becomes a corrosion source in long-term use, so closed-cell material is preferable wherever precision parts are contacted. The third is variation in chemical tolerance: where an insert may contact solvents or strong acids and alkalis, each material must be assessed individually, since EVA tolerates many acids and alkalis but is sensitive to some organic solvents, and rubber roller covers and seals each have their own limits. The practical approach is to list explicitly which chemicals the insert will contact, by what route (vapour, condensate, or direct contact) and for how long, ask the supplier for a material compatibility statement, and for critical parts run a small-scale immersion or vapour exposure trial to confirm no discolouration, deformation, or leaching before volume use.

Q: What information is needed to customise an insert, and how long does prototyping take?

A: Six things make a quotation accurate rather than optimistic. First, the component schedule with 3D models in STEP, IGES, or the native CAD format. Second, photographs or, better, the physical parts, because models and castings often disagree. Third, unit weight and centre of gravity, which decide where a part is supported and which way it is restrained. Fourth, the route: sea, road, or air; how many times the case is transhipped; and the temperature and humidity range it will meet. Fifth, the compliance target - IP rating, whether salt spray or transport testing is required, and any export documentation. Sixth, marking and traceability: label wording, language, coding rules, and the documents that travel with the case. Where no model exists yet, a layout can be built by measuring the parts. Prototyping then follows scheme confirmation, a CNC-milled or die-cut prototype, a trial fit, and revision. Elapsed time depends on cavity complexity, material availability, and how many revision rounds are needed; validate ease of removal at the first prototype, because an over-tight cavity is usually discovered on the dyehouse floor rather than in the workshop.

Conclusion & Related Reading

The real value of a dyeing equipment parts case is invisible: it is measured by the four failure routes it closes off - chloride pitting, condensation, micro-motion, and impact. For dyeing machinery builders and component suppliers, building a standard case series by component family and freezing insert and sealing schemes as standard tooling is a practical route to reducing both quality risk and storage cost. For dyehouse retrofit buyers, specifying IP rating, salt spray, and transport test methods and acceptance criteria in the procurement agreement is the most effective way to move acceptance disputes forward into the contract stage.
