Injection Molding Machine Parts Cases: Screw, Barrel & Hydraulic Component Protection

The real job of an injection molding machine parts case is not to hold parts, it is to keep the screw straight, the barrel bore undamaged, and the hydraulic valves uncontaminated. The three common spare-part families on an injection molding machine fail for completely different reasons. A screw is a slender part with a large length-to-diameter ratio, typically between 20:1 and 25:1, and its worst enemies are bending and edge chipping. A barrel is a heavy-wall tube with a nitrided or bimetallic liner, and it is most vulnerable to bore scratching, damage to the flange sealing face, and long-term moisture corrosion. Hydraulic components such as servo valves, proportional valves, piston pumps, hydraulic motors, and cylinders are most vulnerable to contamination, because a particle only a dozen microns across can jam a servo valve spool. The correct approach is therefore to design along three lines at once: classify by part, grade by surface, and separate by environment. Long items need anti-bending support compartments, machined surfaces need soft-contact isolation, and hydraulic parts need clean, moisture-controlled compartments. Putting everything into one generic wooden crate defeats all three.

In real plants, spare parts are rarely lost while they are running. They are lost in the interval between removal and reinstallation. A screw is pulled out of the barrel, leaned against a wall, and two days later its straightness is gone. A barrel flange is nicked by a forklift during handling, and after reinstallation the heating bands cannot reach temperature. A servo valve is removed without capping the ports, shop dust enters the spool clearance, and after reassembly the pressure fluctuates. When these failures are added up, the resulting downtime usually costs an order of magnitude more than the spare parts themselves. This article works through the sequence of failure mechanisms, case rating, insert structure, standards verification, and shop-floor handling practice, so that maintenance supervisors, spare-parts storekeepers, and purchasing staff can apply it directly.

Table of Contents

• 1. What an Injection Molding Parts Case Must Actually Solve: Failure Mechanisms by Part Family
• 2. Screw Protection: Bending and Edge Chipping Risks Created by a High L/D Ratio
• 3. Barrel Protection: Bore, Flange Register, and Nitrided Layer
• 4. Hydraulic Component Protection: Cleanliness Is the First Metric
• 5. How to Set the Case Rating: IP Protection, Impact Resistance, Temperature, and Flame Retardancy
• 6. Insert Structure Design: Long-Item Compartments, Vertical Compartments, and Layered Compartments
• 7. Standards and Transport Verification: GB/T 4857, ISTA, IEC 60529, and MIL-STD-810H
• 8. A Seven-Step Selection Method
• 9. Shop-Floor Handling, Storage, and Recommissioning
• 10. Common Misconceptions
• 11. Incoming Inspection and Routine Maintenance Checklist
• Frequently Asked Questions
• Conclusion & Related Reading

1. What an Injection Molding Parts Case Must Actually Solve: Failure Mechanisms by Part Family

Parts that travel in the same box can fail through entirely different logic. The first step in selection is therefore not measuring dimensions but writing down, for each part family, what it fears most.

The problem with a generic wooden crate is that it satisfies exactly one dimension: floor area. Wooden crates have rough internal walls, absorb moisture, cannot hold a fixed orientation, and cannot isolate machined surfaces. The crate itself also deforms during forklift handling and presses back against the parts. For a major-overhaul spare-parts set for a mid-size injection molding machine, the surface damage rate caused by wooden crates is routinely underestimated in practice, because the damage only becomes visible at the installation and commissioning stage.

The design objective can therefore be stated in one sentence: isolate the critical surfaces of every part family from impact, vibration, moisture, and contamination in the transport chain. That sentence determines every parameter choice that follows.

2. Screw Protection: Bending and Edge Chipping Risks Created by a High L/D Ratio

The screw is the most demanding spare part on an injection molding machine, for a simple combination of reasons: it is long, it is slender, it is expensive, and its surface carries a hard but brittle functional layer.

2.1 Bending: Destroyed by Support Points, Not by Load

The self-weight deflection of a horizontally unsupported screw grows with the fourth power of the span and falls with the fourth power of the diameter. In other words, halving the number of support points can increase deflection by more than an order of magnitude. For a screw 45 mm in diameter and 2200 mm long, the difference in residual straightness between a single mid-span support and four evenly spaced supports is measured in orders of magnitude, not percentages.

What makes this worse is that screw damage is often plastic rather than elastic. A short unsupported period may only produce elastic deflection that springs back once supported. But if the screw experiences a forklift bump while unsupported, or is stored long-term leaning against a wall on two or three contact points, local stress can exceed yield and produce permanent set. Once permanent bending occurs, the installed screw shows uneven clearance against the barrel, localised shear overheating, and unstable plastication. The only remedies are straightening at the manufacturer or scrapping the screw.

Three field-proven practices follow from this:

• Keep support spacing at or below one quarter of the screw length. A 2200 mm screw should have at least five support sections, counting both ends and three intermediate points.
• Use soft, arc-conforming cradles. EVA-lined or polyurethane-lined V-blocks and half-round cradles spread contact pressure across the whole arc instead of concentrating it on a single line of contact.
• Never allow a screw to sit with one end inserted into a bushing and the other end unsupported. This is the single most common and most damaging handling error.

2.2 Edges and Functional Layers: High Hardness Is Not Impact Resistance

Modern injection screws are frequently nitrided at the thread edges, or hardfaced with bimetallic alloys or tungsten carbide overlays. Surface hardness above HRC 55 is common, but high hardness means high brittleness and high notch sensitivity. When a hard surface layer is struck by a hard, pointed object, the damage mode is not denting but chipping. A chipped edge becomes a dead zone in the melt channel, where material accumulates, degrades, and generates black specks.

2.3 The First Action After Removal Determines All Downstream Cost

When a screw is pulled from the barrel, its surface temperature may still be above 80 degrees Celsius and it carries a film of residual polymer. The correct sequence is cool, purge, apply rust preventive, place in cradle, place in case. Skip the first two steps and residual polymer cures inside the case and bonds to the cradle blocks. Put the screw in while hot and the case and insert undergo a thermal cycle that accelerates foam aging while the enclosed volume produces condensation, which accelerates corrosion rather than preventing it.

3. Barrel Protection: Bore, Flange Register, and Nitrided Layer

A barrel looks like a simple heavy-wall tube, but its precision requirements are demanding. Bore-to-outer-diameter concentricity, bore cylindricity, and the runout of the flange register face all directly affect screw clearance and assembly accuracy.

3.1 Three Surfaces That Must Not Be Touched

• The bore cylindrical surface. This is the working surface that mates with the screw and carries the nitrided layer. Any axial score creates localised shear and material accumulation. The remedy is soft plugs or protective caps at both ends of the bore, shaped with a slight taper so that a hard edge never presses directly on the bore mouth.
• The flange register and sealing face. This is the locating surface that mates with the head and nozzle seat. A dent of even 0.1 mm can cause leakage after assembly or uneven heating across the face. The face must be fitted with a protective cap, and the cap must be soft, not a bare metal plate.
• Thermocouple holes and heating band mounting surfaces. These holes are small and their mouths deform easily. Once deformed, temperature measurement becomes inaccurate. Small holes should be plugged to keep debris and oil out.

3.2 Vertical or Horizontal Placement

Whether a barrel travels vertically or horizontally in the case should follow its length and wall thickness:

Whichever orientation is chosen, the principle is the same: turn point loading into area loading, and area loading into evenly distributed arc loading. This is precisely why arc-shaped clamp inserts outperform flat pads in barrel cases, and the same reasoning is developed in the guide to custom foam inserts.

3.3 Rust Prevention: Barrels Rust More Easily Than Screws

The barrel bore is nitrided or bimetallic, but the outer diameter, flange, and threaded holes are usually plain alloy steel. A freshly machined surface with no mill scale develops rust spots quickly above 60 percent relative humidity. Three things must be done together: a thin film of rust-preventive oil on working surfaces, a vapour-phase corrosion inhibitor inside the case, and adequate desiccant with a humidity indicator card.

4. Hydraulic Component Protection: Cleanliness Is the First Metric

In an injection molding machine hydraulic system, servo valves and proportional valves are the most expensive and the most delicate components. They almost never fail from wear. They fail from contamination.

4.1 Cleanliness Codes Are Not Abstract

Hydraulic fluid solid particle contamination is usually expressed as a three-number ISO 4406 code, corresponding to the population of particles larger than 4, 6, and 14 microns respectively. The following typical control targets for injection molding machine systems can be used as a reference point during spare-part storage and handling:

These figures represent common industry ranges and should always be confirmed against the machine builder's documentation. Their purpose here is to make one point: a case that keeps dust out is not automatically a case that keeps hydraulic parts clean. The particle sources inside the case must also be controlled, including insert debris, paper fibres, rust flakes, and operator clothing fibres.

4.2 Four Rules for Hydraulic Parts

1. Cap every port. All pressure, return, drain, and pilot ports must receive a plug or dust cap immediately after removal. Never improvise with cotton waste or adhesive tape.
2. Do not open what does not need opening. Do not remove valve end covers in the field for inspection. Once the spool and sleeve clearance is exposed to shop air, the risk far outweighs any benefit.
3. Fix the orientation. Servo and proportional valves have no strict orientation requirement, but they are extremely sensitive to impact. They need dedicated compartments, all-round cushioning, and no sharing with heavy parts.
4. Control moisture and condensation. Residual oil film inside hydraulic parts adsorbs water during temperature cycling. Place desiccant in the case and allow the closed case to equalise to ambient temperature before opening when moving from a cold environment into a warm shop.

4.3 Accumulators and Cylinders

An accumulator is a pressure vessel component. Before transport it must be depressurised to the state specified by the machine builder, and it must be clearly marked on the outside of the case. This is a safety requirement, not a packaging preference. On cylinders, the piston rod is a chrome-plated precision surface, and protection follows the same logic as a barrel bore: the full stroke length of the chrome surface must be covered by a soft sleeve along its entire length, not just at the two ends.

5. How to Set the Case Rating: IP Protection, Impact Resistance, Temperature, and Flame Retardancy

How much protection a spare part needs depends on the transport and storage environment it will pass through. Case rating can be approached along four dimensions.

5.1 Protection Rating: Choosing Between IP65 and IP67

Ingress protection ratings are defined in IEC 60529 and, in China, in GB/T 4208. The first digit covers solids and the second covers water. A first digit of 5 means dust protected, where ingress is not fully prevented but is insufficient to interfere with operation; 6 means dust tight. A second digit of 5 means protected against water jets, and 7 means protected against temporary immersion.

• IP65 suits domestic road transport, ordinary workshops, and covered storage. It resists dust and water jets from any direction.
• IP67 suits sea freight, open or semi-open yard handling, high-rainfall regions, and sites where short-term immersion is a realistic risk, for example yard flooding.

For injection molding spare parts, if the case may experience condensation inside a sea freight container, or will be handled outdoors for short periods, it is worth going directly to IP67. Nightly condensation inside shipping containers is common, and a water-jet rating does not cover condensation or immersion. The practical meaning of these ratings is discussed further in the guide to IP67 protective cases.

5.2 Impact Resistance: The Case Must Survive First

The case is the first cushioning stage. If the wall cracks during a drop, the best internal cushioning is irrelevant. Assess wall thickness and rib layout, corner reinforcement, and the overlap depth between lid and base at the parting line. The design logic of sealing and shock-absorbing structures shows up very directly here: the seal lip must sit at the point of highest local stiffness, because deformation during impact will otherwise misalign the lip and destroy the seal.

5.3 Temperature and Material

Ambient temperature around an injection molding shop can exceed 40 degrees Celsius in summer and fall below minus 20 degrees Celsius in northern plants in winter. The behaviour of common engineering plastics is roughly as follows:

One easily missed detail deserves repeating: case material and insert material must be chosen as a pair. A hard case with an overly hard insert transmits impact straight to the part. A soft case with an overly soft insert deforms before the insert does anything useful. Material selection is explored further in the discussion of engineering plastics for protective cases.

5.4 Flame Retardancy and Other Compliance

Where cases are stored long-term near electrical rooms, distribution rooms, or areas with fire requirements, the case material can be specified to meet a UL94 flame retardancy classification, commonly UL94 V-0, V-1, or V-2, with supporting material evidence from the supplier.

5.5 Pressure Equalisation Valve

If a parts case will be shipped by air, or moved between high and low altitude sites, the pressure differential across the case can make the lid difficult to open or impose abnormal long-term load on the seal. A pressure equalisation valve solves this, and its principle and configuration are covered in the note on pressure equalisation valves for protective cases.

6. Insert Structure Design: Long-Item Compartments, Vertical Compartments, and Layered Compartments

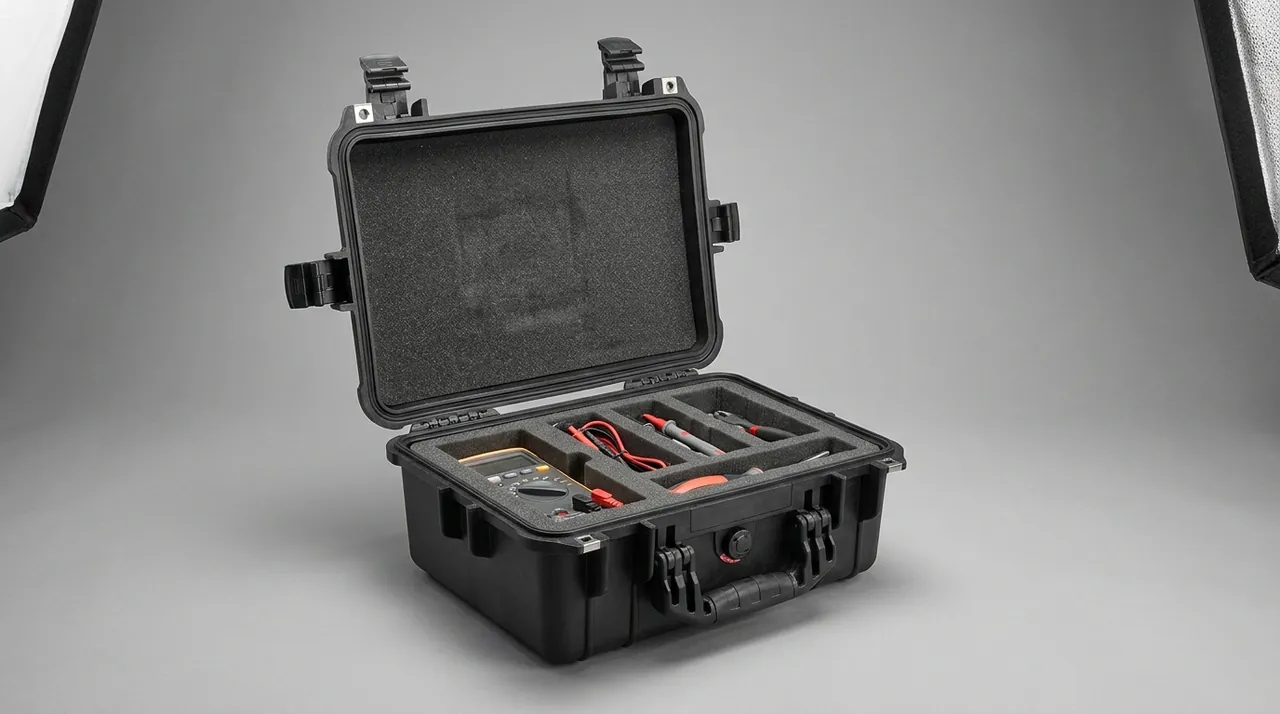

Once the case body is settled, the insert decides success or failure. Insert design can be broken down into three compartment types and four material families.

6.1 Three Compartment Types

6.2 Four Insert Material Families

• EVA foam. Closed cell, good rebound, machinable by CNC or thermoformed, and the most common material for long-item cradles and precision cavities. Density can be tuned to part weight.
• EPE pearl foam. Light, inexpensive, adequate cushioning. Suitable as secondary cushioning or for one-way transit, but it compresses and collapses under long-term load.
• EPP expanded polypropylene. Outstanding shape recovery, well suited to repeated handling and long-term vehicle vibration.
• Polyurethane. Can be cast in place around complex geometry and is abrasion resistant, but an unsuitable density selection makes it too hard.

It is worth stressing that an insert is not better simply because it is softer. Wrap a hydraulic valve in soft foam and it will slowly migrate inside the case and strike the walls repeatedly. The correct approach is a slightly soft contact surface combined with sufficiently rigid support, so that the part is held in place without being compressed. This mirrors the logic used for precision instruments and is explored in the discussion of the custom EVA foam insert process.

6.3 Two Structures That Are Often Forgotten

• Finger recesses. Every cavity should have two symmetrical finger recesses so that operators never resort to a screwdriver to pry a part out.
• Label areas and checklist cards. Leave a writable, erasable label area beside each cavity for the part number, machine model, removal date, and source machine serial number. This embeds spare-part management into the physical structure, which is far more reliable than a sheet of paper taped to the outside of the case.

7. Standards and Transport Verification: GB/T 4857, ISTA, IEC 60529, and MIL-STD-810H

A protection scheme cannot rest on the impression of sturdiness. It needs test evidence. The relevant standards fall into three layers.

The first layer is basic transport packaging testing. The GB/T 4857 series specifies fundamental test methods for transport packages, covering drop, stacking, vibration, and impact, and is the most commonly used basis in China. For the practical application, see the note on how GB/T 4857 transport packaging testing applies to protective cases.

The second layer is distribution cycle simulation. ISTA procedures such as ISTA 2A and 3A, and ASTM D4169, combine vibration, drop, and stacking sequences to simulate cumulative damage across a real distribution chain. This is closer to reality than any single test, as explained in the overview of ISTA transport testing procedures.

The third layer is environmental conditioning. MIL-STD-810H is an environmental test method standard, and its methods can be used to evaluate behaviour under high temperature, low temperature, thermal shock, humidity, vibration, shock, and salt fog. It must be stated clearly that citing this standard is only a reference to environmental test methods and does not imply any military certification. The correct reading is set out in the note on MIL-STD-810H environmental verification.

Beyond these three layers, if the shipment includes regulated dangerous goods such as grease, cleaning agents, or rust preventives carried with the case, the applicable transport regulations such as ADR and IMDG determine the classification and packaging requirements. Guidance is available in the note on hazmat transport case compliance.

Write three things into the contract: the test items and reference standards, the acceptance criteria, and how test reports will be supplied. For example: drop testing per GB/T 4857.5, drop height selected according to the package mass band, and after testing no case cracking, latches still functional, and no internal part displacement. Only then is there a shared language at acceptance.

8. A Seven-Step Selection Method

Compressed into an executable sequence, everything above becomes seven steps:

1. List the spare parts. Record every part that will travel together, its individual weight, its outline dimensions, and whether it has protruding shafts or flanges.
2. Mark the critical surface of each part. Write down in one sentence what that part fears most, and let that determine its isolation level.
3. Map the transit route. In-plant handling, domestic road, sea freight, air freight, or long-term storage. The route determines the IP rating and whether a pressure equalisation valve is needed.
4. Set the case envelope. Long-item length determines the case length-to-width ratio; total weight determines wall thickness, ribbing, and whether castors are needed. Cases longer than about 1.5 m usually need castors and a telescopic handle for practical handling.
5. Define the insert scheme. Combine long-item, vertical, and layered compartments, and choose materials based on individual part weight and handling frequency.
6. Define auxiliary items. Desiccant and humidity indicator cards, vapour-phase corrosion inhibitor, port plugs, label areas, checklist cards, and lifting markings.
7. Define verification and acceptance. Sampling ratio, inspection items, and acceptance criteria. It is sensible to follow AQL sampling logic, as described in the note on custom case acceptance and AQL.

If the spare-part models are stable and volumes are large, tooling a custom molded insert usually pays off. If machine models are mixed and the list changes often, start with a modular approach. The economics are discussed in the analysis of custom case mold cost, and supplier evaluation is covered in how to choose a case OEM factory.

9. Shop-Floor Handling, Storage, and Recommissioning

The final step is handling discipline. The following points cause the most problems in practice.

9.1 Handover Between Removal and Packing

The people who remove parts are usually not the people who pack them. Fix a handover card inside the case recording the removal date, the machine serial number, the reason for removal, the observed condition at removal, and the person responsible. The benefit appears months later, when the set is recommissioned and someone needs to know how long the parts have been in the case and whether any abnormal event occurred in the meantime.

9.2 Lifting and Moving

• Long parts must be lifted at two points. Single-point lifting is forbidden because it induces bending.
• Never sling a case directly around the body walls. Stress concentration at the sling contact point can crack the case. Use a pallet or base frame instead.
• Do not drop cases on landing, particularly cases holding barrels or servo valves.

9.3 Storage Environment

Keep the storage area below 60 percent relative humidity, with no standing water on the floor. Cases should not sit directly on the ground; use pallets or racking. Stacking height should follow the case design load and stacking test results, and cases holding long items or precision hydraulic parts should never be at the bottom of a stack.

9.4 Checks Before Recommissioning

1. Inspect the humidity indicator card and desiccant condition immediately after opening.
2. Check insert cavities for collapse or loose debris.
3. Check screw straightness by rolling on a surface plate or dedicated fixture, and inspect for surface rust.
4. Check the barrel bore for scoring and the flange face for dents.
5. Check hydraulic port plugs for integrity and corrosion.
6. Clean and flush according to the machine builder's instructions before installation.
7. Record abnormalities and arrange repair or replacement as needed.

10. Common Misconceptions

• Misconception one: one large case for everything. Long items and precision valves share a space, and the long items act as hammers in transit. The valves are the first casualties.
• Misconception two: lashing the screw to the case wall with rope. The knot creates a point load while the screw remains unsupported, maximising bending risk.
• Misconception three: more foam is always safer. An overly soft insert allows the part to migrate and strike repeatedly; an overly hard insert removes cushioning entirely.
• Misconception four: a waterproof case guarantees a dry interior. Parts placed in wet, hot, or humid condition will still rust. Rust prevention requires surface preparation, a vapour-phase inhibitor, and desiccant together.
• Misconception five: leaving ports uncapped until installation day. Once contamination enters the spool clearance it is very difficult to remove, and rework costs far more than a plug.
• Misconception six: storing packed cases outdoors long term. Ultraviolet exposure embrittles most engineering plastics and shortens case life significantly. Factors affecting service life are discussed in the note on protective case service life.
• Misconception seven: choosing a case on capacity alone. If a case is too heavy or too tall, workers will not use it properly, and the parts end up stored carelessly anyway.

11. Incoming Inspection and Routine Maintenance Checklist

Incoming inspection

1. No cracks, sink marks, or flash on the case body, and corner reinforcement intact.
2. Latches, hinges, handles, and castors operate smoothly with no play when closed. How to judge hinge and latch sealing is described in the note on case hinges, latches, and seals.
3. Seal gasket continuous, with no joint misalignment or scoring, producing an even compression mark when the lid closes.
4. Insert matches the parts, and shaking the closed case produces no sense of internal movement.
5. Accessories complete: desiccant, humidity indicator card, corrosion inhibitor, port plugs, label areas, checklist cards.
6. Documentation complete: packing list, material statement, and any required test reports.

Routine maintenance

1. Clean the interior after each use, leaving no oil or debris. Cleaning methods are described in the guide to cleaning a protective case correctly.
2. Inspect the seal gasket periodically and apply a small amount of silicone grease.
3. Replace or regenerate desiccant as soon as it changes colour, and shorten the interval during humid seasons.
4. Reapply rust-preventive oil on schedule, especially on screws and barrels in long-term storage.
5. Replace inserts immediately on collapse, tearing, or debris shedding.
6. Repair or retire the case immediately on cracking, latch failure, or seal aging.

Frequently Asked Questions

Q: What support spacing should be used for an injection molding screw transport case?

A: The field-proven practice is to keep support spacing at or below one quarter of the screw length, meaning a 2200 mm screw should have at least five support sections. The reason is that self-weight deflection of a slender part grows with the fourth power of the span, so doubling the span can increase deflection by more than an order of magnitude. Three other factors matter as much as spacing. First, the cradles must be equal height, equal radius, and collinear; otherwise the screw is twisted into a wave shape. Second, the contact surface should be a conforming V or half-round profile so contact is distributed over an area rather than a line. Third, the case must travel in a level attitude, never with one end raised. One final point: position the supports on cylindrical sections and avoid the thread edges and mixing elements, then mark the cradle positions so that the screw is returned to the same locations every time.

Q: Should a barrel be stored vertically or horizontally in the case?

A: The decision should follow length and wall thickness rather than habit. Shorter barrels with thicker walls suit vertical placement, which has a small footprint but requires a bottom locating seat and an upper restraint ring with all-round cushioning to prevent tipping under vibration. Longer barrels with a high length-to-diameter ratio suit horizontal placement, which has a lower centre of gravity, but requires equidistant arc cradles supporting the full length and a support pad under the flange so the flange never cantilevers. Whichever orientation is used, avoid leaning the barrel at an angle, because it concentrates load locally and allows gradual sliding under vibration. Independently of orientation, two items are mandatory: a soft protective cap on the flange register and sealing face, and bore plugs at both ends. Settle the orientation before the insert is designed, because the cradle layout, the restraint positions, and the case height all follow from that decision, and changing orientation later usually means new tooling rather than a minor adjustment. Whichever orientation is finally used, photograph the loaded barrel before closing the lid so that the next person to pack it can reproduce the same arrangement exactly.

Q: What level of cleanliness does a case need for hydraulic servo valves?

A: The core requirement is controlling particle contamination. Ports must be capped with a plug or dust cap immediately after removal, and never improvised with cotton waste or adhesive tape, because fibres and adhesive residue go straight into the valve. The insert material inside the case should not shed particles; paper fibres, wood dust, and ordinary open-cell sponge debris are all contamination sources, so closed-cell foam with sealed edges is recommended. Double wrapping is also advisable: wrap the valve in clean corrosion-inhibiting film first, then place it in the cavity, creating two barriers. Desiccant controls internal humidity and prevents residual oil film from adsorbing water. Finally, change field habits: do not remove valve end covers in the field for inspection, because once the spool and sleeve clearance is exposed to shop air, the risk is far greater than any benefit. Flush according to the machine builder's instructions before reassembly. It is also worth keeping a small stock of spare plugs inside the case, because the originals are easily lost during a busy changeover.

Q: Should an injection molding parts case be IP65 or IP67?

A: It depends mainly on the environmental boundary of transport and storage. IP65 resists dust ingress and water jets from any direction, which covers domestic road transport, covered workshop handling, and ordinary warehouse storage. IP67 adds temporary immersion resistance and a higher dust-tight class, making it suitable for sea freight, open or semi-open yard handling, high-rainfall humid regions, and sites with flooding risk. A key practical point is that the day-night temperature swing inside a sea freight container produces condensation on the outside of the case, and in that environment a higher-rated case has more margin. If the spare parts are expensive and downtime is costly, going directly to IP67 is sensible, because the extra cost is small compared with a single corrosion rework. Rating definitions should be read against GB/T 4208 or IEC 60529. A further consideration is the storage location itself, since a case kept in a covered warehouse has a very different exposure profile from one kept beside an open loading bay, and the rating should reflect the worst case rather than the average. If the specification is being written for the first time, state the rating together with the test method and the acceptance criterion, so that the requirement can be verified rather than assumed.

Q: How often should desiccant inside the case be replaced?

A: There is no fixed interval, because it depends on ambient humidity, how often the case is opened, and the type of desiccant. The workable approach is to let an indicator decide. Place a humidity indicator card or small hygrometer inside the case, and keep relative humidity below 60 percent with an ideal band of 40 to 55 percent. Choose desiccant with a colour indicator and replace or regenerate it as soon as the colour changes. During the rainy season, and in humid southern regions, the replacement interval should be noticeably shorter, and more frequent opening shortens it further. Two further points are often overlooked. Desiccant must be in packaging that breathes but does not shed dust, so that granules do not scatter into the insert. And desiccant should be fixed in a dedicated compartment rather than left loose, because otherwise it acts like a small hammer striking the parts throughout transit.

Q: Is a coat of rust-preventive oil enough for long-term screw and barrel storage?

A: Usually not. Three layers are recommended. The first is surface preparation: purge, wipe, and dry before packing, because hand sweat and residual polymer are the starting points of corrosion, then apply a thin, even film of rust-preventive oil. Thin is better than thick, because a heavy film sags under gravity and traps contaminants. The second is vapour-phase protection: use a vapour-phase corrosion-inhibiting film or paper inside the enclosed volume. It releases inhibitor continuously and reaches places an oil film cannot, such as thread roots and bores. The third is humidity control: use adequate desiccant and a humidity indicator card to hold relative humidity below 60 percent inside the case. Together these three layers, plus avoidance of sharp temperature cycling and condensation, are what make storage beyond six months realistic. For very long storage, some plants also keep a simple humidity log so that seasonal trends become visible and the desiccant cycle can be adjusted before a problem appears.

Q: How many cases should a major-overhaul spare-parts set for one machine require?

A: Design by classification rather than by convenience, and the answer is usually not one case. A common arrangement uses three or four. One long-item case holds the screw and piston rods with multi-point cradles. One vertical case holds the barrel and nozzle seat with a locating seat and restraint ring. One precision case holds servo valves, proportional valves, sensors, and electrical items in layered cavities with desiccant. One accessory case holds fasteners, seals, heating bands, and tools. Splitting the set does more than match protection levels to parts: it also improves handling, because replacing a screw requires moving one light case rather than a single heavy crate. The only cost is a higher total case price, and against a single mixed-packing spare-part failure that trade-off is usually clear. Keep the cases within a common handling footprint so that one pallet or trolley can move the whole set, and label each case with its contents rather than relying on memory. One practical warning: if cases are purchased separately over time, confirm that the insert drawings remain under revision control, because a silent change in cradle geometry can undo the protection the set was designed around.

Q: How can a buyer judge whether a protective case supplier is reliable?

A: Start with four verifiable points. First, can the supplier provide complete material statements and test reports, for example the test method behind an IP rating, flame retardancy evidence for the case material, and transport test reports. Second, is the supplier willing to design against your parts list and confirm drawings, rather than quoting a standard off-the-shelf size. Third, what insert manufacturing capability exists, including CNC machining or thermoforming, and whether non-standard structures such as long-item cradles can be produced. Fourth, how consistent is delivery; a small trial order followed by sampling can verify dimensional accuracy, gasket condition, and insert fit. JUNZHJIA, manufactured by Kexin New Materials (Guangdong) Co., Ltd., offers one-stop capability from product design and mold making through injection molding to insert and liner fabrication, and can supply structural proposals and supporting documentation against an injection molding spare-parts list. It is also reasonable to request a sample insert section or a small trial case before committing to a full order, because insert quality is best judged by handling a real part in a real cavity.

Conclusion & Related Reading

The selection logic for an injection molding machine parts case comes down to three lines: classify by part, grade by surface, and separate by environment. For slender parts such as screws and piston rods, the core issue is bending resistance: keep support spacing at or below one quarter of part length, make cradles equal height and equal radius, and never allow an unsupported or leaning span. For heavy-wall tubes such as barrels, the core issue is the three surfaces that must not be touched, namely the bore cylindrical surface, the flange register and sealing face, and the thermocouple holes, while replacing point contact with area contact in either orientation and building rust prevention from surface preparation, vapour-phase inhibitor, and desiccant together. For precision parts such as hydraulic valves, the core issue is cleanliness: cap ports immediately, use double wrapping, choose non-shedding cavity materials, and never open a valve in the field. Case rating follows the transit route, and for sea freight or outdoor handling go directly to IP67. Verification should be built on standards such as GB/T 4857, ISTA, and ISO 4406 with criteria that can be judged pass or fail, and remember that MIL-STD-810H is cited only as an environmental test method reference and implies no military certification. Finally, build checklist cards, label areas, and humidity indicators into the case structure itself, so that management discipline becomes a physical constraint. That is the part that makes spare-part protection work over the long run. JUNZHJIA, manufactured by Kexin New Materials (Guangdong) Co., Ltd., founded in 2014 in Zhongshan, Guangdong, operates an approximately 18,000 square meter factory with more than 80 production machines and over 100 employees. The protective case line covers more than 150 specifications, achieves IP67 capability, can be verified against MIL-STD-810H environmental test methods, holds ISO9001 certification, and complies with REACH and RoHS requirements. With more than 20 patents, the company provides one-stop OEM and ODM customization from design and tooling through injection molding to inserts and logo printing, and can supply long-item cradle and layered insert solutions against an injection molding spare-parts list. For volume quotations, specification requests, and customization enquiries, please use the contact page or the enquiry form on this site.
