Abrasive & Consumable Cases: Grinding Wheel, Paper & Cut-Off Disc Protection

Most transit damage to abrasives and consumables is not a case that cracks. It is three hidden damage types that occur while the outer package still looks intact: chipped wheel edges, warped moisture-laden cut-off discs, and creased or crushed sandpaper. These defects only surface on the workshop floor as vibration, burn marks and fragmentation. Grinding wheels and cut-off discs are classic consumables that are hard yet brittle, moisture-sensitive, impact-sensitive and pressure-sensitive. A conventional vitrified or resin wheel can sustain a micro-crack from a side impact or drop; that micro-crack may then grow into catastrophic breakage under high-speed rotation. A cut-off disc as thin as paper warps once it absorbs moisture and cuts off-track. Sandpaper and belts lose abrasive once folded. Specifying a case for these consumables is therefore not about impact resistance. The core objectives are prevent edge chipping, control humidity, preserve flatness and enforce strict compartment isolation. Any scheme that stacks wheels under mutual load, leaves cut-off discs bare and damp, or folds sandpaper is simply wrong.

This article is written for procurement, packaging and warehouse staff at abrasive manufacturers, hardware-tool distributors, and metalworking and woodworking companies. It provides a selection and acceptance method that can be applied directly: damage-mode analysis, lining design for the three consumable families, humidity control, sealing and ingress protection, transport-test standards, a packing SOP and supplier evaluation criteria. All figures quoted are typical industry values or empirical ranges; the governing inputs are always the product specification, diameter and thickness, and the transport route. JUNZHJIA supplies custom-moulded inserts, OEM and ODM programmes, and supporting test documentation for abrasive and consumable cases.

Table of Contents

• 1. Why Abrasives Are Hard yet Brittle, Moisture-Sensitive, Impact-Sensitive and Pressure-Sensitive
• 2. Five Typical Transit Damage Modes
• 3. Grinding Wheel Cases: Edge, Bore and Balance Protection
• 4. Cut-Off Disc Cases: Upright Storage, Separation and Moisture Control
• 5. Sandpaper and Belt Cases: Flatness and Surface Protection
• 6. Consumable-to-Case Selection Matrix
• 7. Lining and Divider Materials Compared: EVA, PE Foam, Corrugate and Honeycomb
• 8. Sealing and Ingress Protection: IEC 60529 and GB/T 4208
• 9. Humidity Control: Mechanism, Desiccant and Barrier Packaging
• 10. Transport Test Basis: ISTA, GB/T 4857, ASTM D4169 and MIL-STD-810H
• 11. Standard Packing Workflow (SOP)
• 12. OEM/ODM Customisation and Supplier Evaluation
• Frequently Asked Questions
• Conclusion and Further Reading

1. Why Abrasives Are Hard yet Brittle, Moisture-Sensitive, Impact-Sensitive and Pressure-Sensitive

Abrasives are the teeth of manufacturing, yet almost every category combines high strength with high brittleness, a contradictory property. Take a conventional vitrified-bond grinding wheel: its compressive strength can be high, but its bending and impact resistance are far weaker, and it carries sintering stress and micro-porosity internally. Once subjected to a drop impact or lateral squeeze, it may first develop a micro-crack invisible to the eye, which then grows under centrifugal and thermal stress during high-speed rotation, typically at line speeds of 30 to 80 m/s, causing breakage and injury. The industry holds a clear safety baseline for wheel transport precisely because of this hidden-crack-then-breakage failure chain.

From an engineering standpoint, the risks for these consumables split into four chains.

1. Edge chain: wheel outer diameter, cut-off disc edge, shaped tool corners. These are the thinnest and most stress-concentrated zones; an impact chips them, and the chip becomes an imbalance source under rotation.
2. Humidity chain: resin-bonded products, fibre-reinforced cut-off discs, and sandpaper or belt backing are extremely humidity-sensitive. After damp exposure, cut-off discs warp, sandpaper curls, and adhesive layers soften, degrading both flatness and bond strength.
3. Pressure chain: stacking, piling and over-tight straps. Thin consumables permanently deform under sustained pressure, losing flatness and causing vibration or off-track cutting at installation.
4. Management chain: mixed specifications, missing labels, missing batch records. When the right specification cannot be found on the floor, the wrong diameter is used, hurting both process and safety.

A core understanding: the acceptance criterion for an abrasive case is first whether it preserves geometric integrity, surface dryness and specification legibility after unpacking, not whether the case itself is dented. Shell strength is only the baseline. Geometric integrity and moisture control are where the value lies.

A competent case must therefore answer four questions at once. Does the edge have independent clearance and cushioning? Is the interior moisture-controlled and dry? Are thin discs stored upright and separated without load? Can people isolate by specification without error and without mixing? The sections below work through these four questions.

2. Five Typical Transit Damage Modes

In after-sales and workshop feedback, transit damage to abrasives clusters tightly into five modes. Understanding them is the first step in selection because each dictates where the lining must apply force and where the shell must be reinforced.

All five share a property: the damage occurs in transit but is usually discovered only at installation or issue. A warped cut-off disc or a chipped wheel edge may go unnoticed until mounted, causing vibration, burn or breakage. Leading abrasive manufacturers therefore adopt a specification-zoning and moisture-sealing strategy, blocking risk at the factory exit.

It is worth noting that the ranking of damage modes depends strongly on the transport mode. Domestic short-haul road transport is dominated by handling shock and stacking. Export sea freight is dominated by humidity and salt fog, and the condensation from the container day-night temperature cycle is the greatest threat to cut-off discs and sandpaper. The same batch of wheels should use a different moisture scheme for domestic distribution than for export by sea, which is why hot, humid and cold-weather case design deserves its own treatment.

3. Grinding Wheel Cases: Edge, Bore and Balance Protection

A grinding wheel is the representative of heavy, hard and brittle among abrasives. Made of abrasive, bond and reinforcement, its diameter ranges from tens of millimetres to over a metre, with wide thickness variation and most carrying a centre mounting hole and balance requirements. Wheel case design must solve four things: zero edge impact, zero bore and mounting-face compression, zero displacement, moisture and impact protection.

Edge protection. The wheel outer diameter is the most vulnerable zone. Two methods are common. The first is an independent edge clearance groove, in which the EVA or structural-foam lining is routed with a circular recess matching the wheel diameter so the entire OD sits in a buffer ring away from the case wall. The second is whole-wheel wrapping, enclosing the wheel in felt or soft sleeve before placement to avoid contact with neighbours. Either way, the principle is zero point contact along the OD; even a 1 mm chip becomes an imbalance source at high speed, causing vibration and noise and, in severe cases, breakage.

Bore and mounting face. The centre hole and both mounting faces are the critical interface with the flange. They need independent support and must not be compressed. The lining should form a boss or sleeve at the centre so the mounting face stays suspended. For wheels with balance weights, add extra restraint on the weighted side to prevent the weight loosening and changing dynamic balance. Following cushion lining and case floor interaction, the load path should be wheel to rigid block to case floor to pallet, not weight pressed onto soft foam that sinks and shifts.

Moisture and separation. Although wheels are more moisture-tolerant than cut-off discs, resin-bonded and fibre-reinforced wheels still fear prolonged high humidity. Place desiccant inside and separate multiple wheels in the same case vertically; never pile them under mutual load. For mixed specifications, place in separate cells and label. The zoning thinking is developed in removable divider systems.

For distributor cases that survive many cycles, print specification, quantity and stacking limit on the inside of the lid; this is essential warehouse and issue information. JUNZHJIA typically builds these consumable cases with a moulded EVA insert plus moisture barrier film, issuing an insert drawing by wheel diameter and thickness for approval before tooling.

4. Cut-Off Disc Cases: Upright Storage, Separation and Moisture Control

A cut-off disc, including fibre-reinforced resin discs and ultra-thin stainless discs, is the extreme representative of thin, brittle and moisture-sensitive. Its thickness is often only 1 to 3 mm while its diameter reaches 100 to 400 mm, a large diameter-to-thickness ratio. Its transport difficulty is the opposite of a wheel: the weight is modest, but it warps, chips and absorbs moisture extremely easily. The design logic centres on upright separation plus rigorous moisture control.

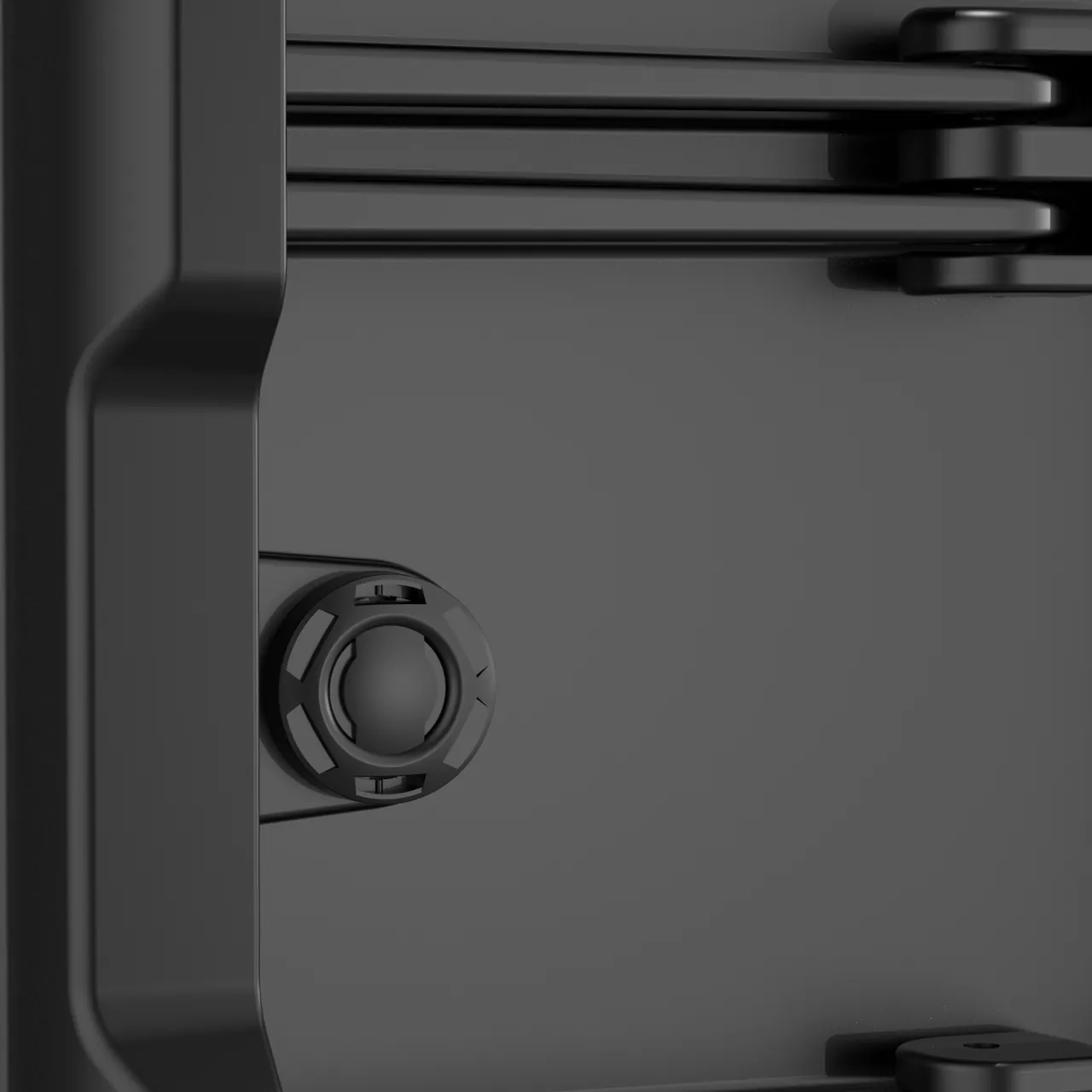

Upright separation. Cut-off discs must never be laid flat and stacked. The correct method is upright insertion: mill multiple vertical slots matching the disc diameter into the lining, insert each disc independently with a soft spacer between, preventing both edge chipping from contact and permanent deformation from piling. Slot depth should support the lower half of the disc, with an elastic pressure strip on top to prevent tipping. The zoning method is detailed in removable divider systems.

Edge protection. The disc OD edge is a high-frequency chip zone. The slot mouth should be soft-edged, felt or EVA faced, to avoid hard contact. Keep a buffer gap between the case wall and the disc edge; never let the edge press against the wall.

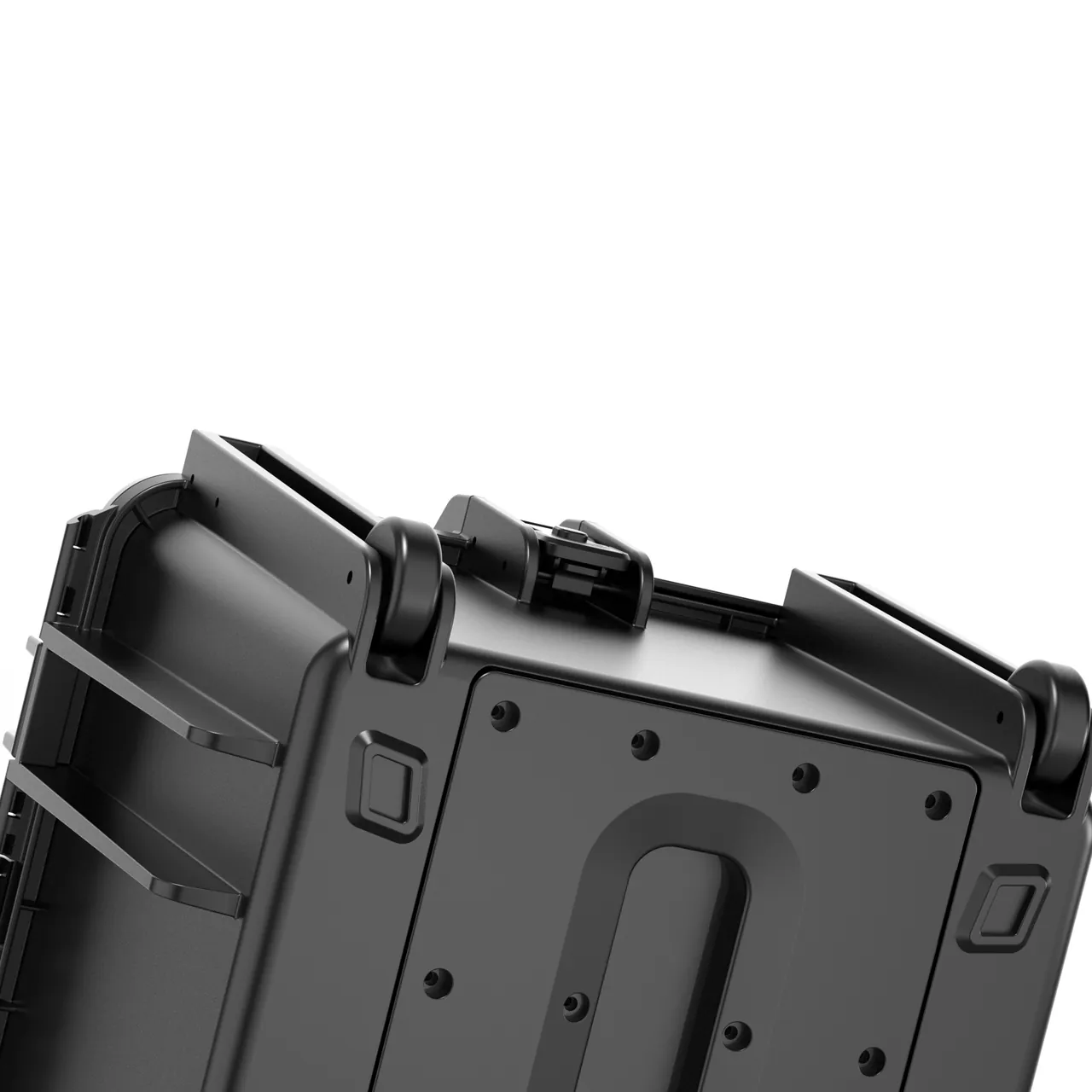

Rigorous moisture control. Cut-off discs are extremely humidity-sensitive; after damp exposure they lose flatness, cut off-track or even break. Apply three moisture barriers: first, a case rated to IP67 protection; second, efficient desiccant plus a humidity indicator card inside; third, load the whole batch into a high-barrier moisture-proof bag with a small desiccant and seal before casing. This double encapsulation is a mature practice for long-haul sea freight, and related sealing ideas appear in seal and shock case solutions.

5. Sandpaper and Belt Cases: Flatness and Surface Protection

Sandpaper, cloth, belts, flap discs and non-woven pads, the soft abrasives, differ again from wheels and cut-off discs: they do not chip, but they fear folding, abrasive loss and backing moisture. Their cases centre on preserving flatness and protecting the surface.

Preserve flatness. Sandpaper should lie flat in stacks, clamped between rigid flat plates top and bottom, never bent. Belts should be rolled or hung to avoid dead-fold creases, where the abrasive layer fractures and the backing cracks. The case needs a flat support layer; never stack heavy objects on sandpaper. Long rolls can be fixed on a core with a vertical cradle to prevent rolling deformation.

Protect the surface. The abrasive face must not rub against hard objects; it should rest on a soft pad, felt or non-woven facing, and never face-to-face against another abrasive face. Flap-disc blades are fragile at the edge and need separate cells to avoid mutual gnawing. Related anti-compression design appears in seal and shock case studies.

Moisture and mould. Sandpaper and belt backing, whether paper, cloth or composite, curls, softens at the adhesive and may mould once damp. Place desiccant and control interior humidity; for export sea freight consider a pressure equalisation valve to reduce condensation.

6. Consumable-to-Case Selection Matrix

The matrix below gives selection guidance for common abrasives so procurement and packaging engineers can locate an answer quickly. The values are typical recommendations; the product specification, diameter, thickness and actual route always govern.

One empirical rule governs selection: any thin, soft or highly brittle consumable must be assumed to require preserved geometry and surface integrity after unpacking. Therefore the lining must provide edge clearance, upright storage for thin parts, soft facing and specification separation. This single rule eliminates most installation vibration and breakage incidents.

7. Lining and Divider Materials Compared: EVA, PE Foam, Corrugate and Honeycomb

The lining is the skeleton of an abrasive case. The same shell with a different lining can differ by an order of magnitude in protection. Common materials each have a valid range.

The selection logic reduces to three steps. Define the form first, meaning disc, thin sheet, roll or shaped part. Then define the risk, meaning edge chip, moisture or crease. Finally define handling frequency, since one-way shipment can favour rigidity while repeated cycles favour toughness. For abrasives there is an extra dimension, moisture resistance: lining and dividers should use closed-cell, moisture-tolerant materials, laminated with a high-barrier film at critical layers.

The full route from 3D data to finished insert is covered in EVA insert customisation process and custom foam insert design guide. JUNZHJIA normally issues an insert proposal drawing for approval against the product specification before tooling. Flammability requirements for lining materials can be clarified at enquiry stage following UL94 flame-rating thinking.

8. Sealing and Ingress Protection: IEC 60529 and GB/T 4208

Abrasives face widely varying transport environments. Domestic distribution is mostly dry overland freight, while export sea freight faces high humidity, salt fog and temperature swing. The goal of sealing design is a match to the environment, not maximum tightness.

What the IP code means. IEC 60529 uses two digits: the first for solids (0-6) and the second for water (0-9K). The equivalent Chinese standard is GB/T 4208. Typical configurations are as follows.

• IP54: limited dust protection, splash resistant. Suitable for short domestic routes with covered transport.
• IP65: dust tight, water-jet resistant. Suitable for the large majority of wheels and abrasives on domestic and near-sea routes.
• IP67: dust tight, short-term immersion, typically 1 m for 30 minutes. Suitable for high-humidity-sensitive consumables such as cut-off discs and sandpaper on sea freight, open-air storage and high-humidity regions.
• IP68: continuous immersion. Needed only for extreme outdoor scenarios.

Important note: an IP rating verifies that external water does not enter. It says nothing about internal condensation. A sealed case can still condense internally across a day-night temperature cycle, so high-humidity-sensitive consumables such as cut-off discs and sandpaper should also carry desiccant and a humidity indicator, with a pressure equalisation valve where the differential is large.

Seal selection. Case sealing relies on gasket profiles, commonly silicone, EPDM or foamed TPE. Silicone offers the best temperature and weathering resistance but costs more. EPDM balances ageing and weatherability for outdoor duty. Foamed TPE has low compression set and suits cases that open frequently. The cross-section must match the case groove, as set out in hinge, latch and seal selection. Seals are wear items and belong on the spare-parts list; replacement interval follows open-close count and storage environment, which is one of the drivers of overall protective case service life.

Latches and hinges. Abrasive cases often open frequently for issue, so latches should be convenient and reliable. Heavy wheel cases have heavy lids, so latch count must match lid stiffness; when lid length exceeds 800 mm, three or more latches are advisable to prevent mid-lid lift and seal failure.

9. Humidity Control: Mechanism, Desiccant and Barrier Packaging

Humidity is the defining subject for abrasive cases; the moisture-control mechanism and actions must be written into the SOP, not left to "looks dry".

Moisture mechanism. Resin-bonded and fibre-reinforced materials are hygroscopic; absorbed water changes dimensions and lowers strength. Sandpaper and belt backing curls and softens at the adhesive once damp. The day-night temperature cycle inside a container forms condensation inside a sealed case, a hidden yet lethal moisture source. Therefore moisture control is not merely "keep it out of the rain"; it is controlling the absolute humidity inside the case below a critical value.

Desiccant and indicator. Place sufficient desiccant, such as silica gel or montmorillonite, with quantity calculated from case volume and transit days, plus a humidity indicator card whose colour on arrival reveals whether the interior was ever damp. For high-humidity-sensitive consumables such as cut-off discs and sandpaper, desiccant is nearly mandatory.

Barrier packaging. A high-barrier film, such as an aluminium-plastic laminate, sharply reduces water-vapour transmission. For long-haul sea freight, load the consumables into a high-barrier moisture-proof bag with a small desiccant, heat-seal, then case it. This double encapsulation isolates interior humidity fluctuation outside the bag. Related sealing ideas appear in seal and shock case solutions.

Temperature-humidity management and testing. The effectiveness of a moisture scheme should be verified by temperature-humidity cycling. The temperature-humidity test methods of MIL-STD-810H can be referenced (note: environmental test basis only, not military certification; see MIL-STD-810H environmental test compliance) to assess condensation risk under temperature swing.

10. Transport Test Basis: ISTA, GB/T 4857, ASTM D4169 and MIL-STD-810H

"Our cases are strong" is not an acceptable statement. An acceptable statement is that the case passed a specific test sequence under a named standard. Four families of standards are commonly used.

The ISTA series. The International Safe Transit Association grades procedures by package format and weight. Consumables shipped as cases or pallets typically reference ISTA 3E for unitised loads or ISTA 3B for less-than-truckload distribution; single cases suit ISTA 2A or 2B. The value of ISTA lies in sequencing: conditioning, then shock or drop, then vibration, then inspection, as explained in ISTA transport testing procedures.

The GB/T 4857 series. These Chinese standards cover vibration, shock, stacking and drop for transport packages. Domestic acceptance documents reference them heavily; practical application is set out in GB/T 4857 transport packaging.

ASTM D4169. This ASTM standard assigns test intensity by distribution cycle and is widely used for North American market validation, covered in ASTM D4169 distribution cycle testing.

MIL-STD-810H. Its environmental test methods, covering vibration, shock, temperature, humidity and salt fog, are frequently cited. This must be stated clearly: MIL-STD-810H is used here as a source of environmental test methodology and does not imply that any product has obtained military certification. See MIL-STD-810H environmental test compliance.

Where UL94 applies. UL94 is a flammability classification for plastics, used to rate case plastic parts, insert materials and gaskets. Some customers specify flame-retardant packaging, so clarify at enquiry. On test documentation: write test items, standard numbers, sample quantities, acceptance criteria and report issuer into the contract annex so responsibility boundaries stay clear if a dispute arises.

11. Standard Packing Workflow (SOP)

The same materials produce different outcomes depending on who packs them. Writing the packing process as an SOP and confirming a first article is the most economical investment for reducing transit loss. The workflow below applies to wheels, cut-off discs, sandpaper and belts.

1. Verify and sort. Confirm specification, quantity and batch; zone by diameter, thickness and grit to avoid mixing and misuse.
2. Initial inspection. Check wheels for visible cracks and chips; cut-off discs for warping; sandpaper for creases. Rejects stay out of the case.
3. Pre-fit the lining. Place recesses, slots and spacers per position markings; confirm nothing is loose or misplaced. Trial-fit and record the first article.
4. Position and fix. Drop wheels into edge recesses with the bore suspended; insert cut-off discs upright into slots with spacers; clamp sandpaper flat and fix belts rolled. No piling or folding.
5. Moisture encapsulation. Load high-humidity-sensitive consumables into a high-barrier bag with desiccant and seal; place desiccant and a humidity indicator card in the case.
6. Accessories and documents. Include a specification list and certificate; label multi-spec consumables.
7. Seal and record. Check the gasket for damage or debris. Close latches with uniform perimeter load. Apply this-way-up and moisture-protection labels. Photograph the packed case and archive.

Field experience: packing photographs are among the most effective evidence for arrival-chipping or warping disputes. Take four fixed-angle images: empty lined case, consumables in position, moisture encapsulation, closed case exterior.

People and tools. Large-diameter wheels need dedicated handling fixtures; never roll or throw them by hand. During trial fitting, keep a rubber mallet and marker to confirm fit.

12. OEM/ODM Customisation and Supplier Evaluation

Abrasive cases are a many-specification, high-volume, low-unit-cost category. An abrasive plant may hold over a hundred wheel specifications and dozens of cut-off disc diameters, while distributors need to sort by brand and specification. This structure means the procurement strategy should be built around standard case types, variable linings and interchangeable labels.

Standardise the case, specify the lining. Start with a few standard case sizes graded by diameter and piece count to cover most consumables, then adapt specific specifications through custom linings. The tooling-amortisation logic is worked through in custom case mould cost analysis.

Five dimensions for supplier evaluation.

1. Engineering capability: can the supplier issue an insert drawing from the specification table, run a trial fit, and design a moisture scheme?
2. Materials and process: batch consistency of EVA and structural-foam density, planar stiffness of dividers, gasket cross-section and hardness.
3. Test capability: can the supplier provide vibration, drop, stacking, IP water and temperature-humidity records, or work with a third party?
4. Delivery and capacity: peak-season flexibility and lead-time reliability.
5. Quality system: batch inspection rules, appearance criteria and non-conforming material handling, using the sampling practice in custom case acceptance and AQL.

On OEM and ODM. Abrasive plants and distributors often want their own brand on the packaging. Cooperation must clarify appearance marking, tooling ownership and cost sharing, minimum order quantity, exclusivity and specification confidentiality. Specification data and production schedules are core assets; sign a non-disclosure agreement and define return and destruction obligations if the project ends.

Enquiry checklist. A practical enquiry should include consumable specification with diameter and thickness, pieces per case, transport mode and route, re-use cycles, storage environment, target IP rating, moisture requirement, marking requirements and annual volume. The more complete the input, the closer the proposal is to production-ready, as discussed in how to choose a protective case OEM factory.

JUNZHJIA normally works in this sequence for abrasive cases: accept the specification table or take a physical impression, issue an insert drawing and case configuration proposal, confirm the first article by trial fitting, then move to volume production with batch inspection and supporting test documentation. For long-term customers, a specification archive is maintained so repeat orders for the same specification reuse the approved design. Case castors and trolley handles are covered in case castors and trolley handle options and latch customisation in case lock customisation options.

Frequently Asked Questions

Q: Grinding wheels are so brittle. How should they be secured in transit without chipping the edge?

A: The primary principle for wheel securing is zero point contact along the entire outer diameter and zero compression on the bore and mounting face. The most robust engineering approach is an independent edge clearance groove: route the EVA or structural-foam lining with a circular recess matching the wheel diameter so the whole OD sits in a buffer ring away from the case wall. For large-diameter or high-value wheels, wrap the whole wheel in felt or a soft sleeve before placement to avoid contact with neighbours. Never lay wheels flat under mutual load or let two wheel ODs knock side by side, because even a 1 mm chip becomes an imbalance source at high-speed rotation, typically 30 to 80 m/s line speed, causing vibration and noise and, in severe cases, breakage. The centre hole and both mounting faces should be supported by a boss or sleeve and suspended without compression; wheels with balance weights need extra restraint on the weighted side to prevent dynamic-balance change. Finally, control displacement: lock the wheel with a shaped lining, and treat straps as auxiliary only. When JUNZHJIA customises the case, an insert drawing confirming the groove and centre support is issued before tooling, preventing support-position errors that leave the OD suspended under load.

Q: A cut-off disc warped after getting damp. Can it still be used, and how do I prevent it in transit?

A: Once a cut-off disc is visibly warped, its flatness is lost and it will cut off-track, vibrate or even break at installation, so in principle it should not be used; prevention far outweighs remedy. Transit moisture prevention needs three layers. First, a case rated to IP67 protection blocks external water and humid air. Second, efficient desiccant such as silica gel or montmorillonite plus a humidity indicator card inside reveals on arrival whether dampness occurred. Third, load the whole batch into a high-barrier moisture-proof bag, such as an aluminium-plastic laminate, with a small desiccant and heat-seal before casing, isolating humidity fluctuation outside the bag. This double encapsulation is a mature practice for long-haul sea freight. Also, the container day-night temperature cycle forms condensation inside a sealed case, so a pressure equalisation valve is advisable to reduce breathing. Even so, sample flatness and the humidity indicator on arrival before mounting; thin discs especially demand strict execution because at only 1 to 3 mm thickness damp deformation is nearly irreversible.

Q: Can sandpaper be rolled for transport, or is flat better than rolled?

A: It depends on the sandpaper form and backing, and cannot be generalised. Conventional sheet sandpaper, such as A4 or 230 by 280 mm, should lie flat in stacks clamped between rigid flat plates top and bottom; never bend it, because a crease fractures the abrasive layer and cracks the backing irreversibly, and flat storage best preserves flatness. Abrasive belts and roll sandpaper are the opposite: roll or hang them, but avoid dead-fold creases where both abrasive and backing fracture and cutting force spikes at that location on installation. Rolling needs the original or equivalent core to maintain natural curvature; never force reverse rolling or crush it, and a vertical cradle prevents rolling deformation. Whether flat or rolled, never stack heavy objects on the consumable, and rest the abrasive face on a soft pad, felt or non-woven facing, never face-to-face against another abrasive face. Flap and fan discs have fragile blade edges and need separate cells to avoid mutual gnawing. The flatness-preserving thinking is developed in seal and shock case studies.

Q: How much should protection rating and moisture control differ between domestic short-haul and export sea freight for abrasive cases?

A: The difference comes from the exposure environment rather than the product itself, and chasing the highest IP number blindly brings both cost and condensation problems. For domestic road transport with covered storage, IP54 to IP65 is usually enough, with compartment isolation and edge protection as the main priorities. For export sea freight, open-air storage or rainy, high-salt-fog regions, IP67 is advisable because the container day-night temperature swing drives marked condensation and deck carriage adds salt fog, threatening cut-off discs and sandpaper most. Two points deserve emphasis. First, IP67 only guarantees that external water does not enter; it does not prevent internal condensation, so desiccant and a humidity indicator card are nearly mandatory. Second, the tighter the seal, the larger the internal-external pressure differential during temperature change, making the case harder to open and possibly sucking the gasket out of shape; a pressure equalisation valve is then more effective than a higher IP number. The correct approach is a combination of sealing, desiccant, pressure equalisation and double encapsulation rather than a single figure. If the tender specifies an IP rating, follow the document and require the supplier to provide the corresponding test record.

Q: EVA or structural foam for the lining of abrasives, what is the special consideration?

A: Abrasives add two dimensions, moisture resistance and form retention, so material choice cannot look only at cushioning. The decision still follows form, risk and handling frequency. Large-diameter wheels concentrate weight and need rigid location, so structural foam or high-density EVA is preferable because deformation under compression is small and location is retained. Thin cut-off discs fear creases and need upright separation, so low-rebound EVA slots with soft spacers dissipate energy better. Sandpaper plates need high planar stiffness and can use corrugate or honeycomb laminated with a soft facing. The key is that the material must be moisture-tolerant and non-shedding: prefer closed-cell, surface-laminated EVA or XPE, laminated with a high-barrier film at critical layers. For high-frequency distributor returnable cases, choose a tough material with low compression set and add felt or film facing at critical contact faces. A composite lining is common: structural foam in load zones and EVA or felt in contact and cushioning zones. Run a trial fit and short-route transport check before volume production and let the measured result decide.

Q: Which transport tests should an abrasive case pass, and who performs them?

A: The common verification set is random vibration, shock and drop, stacking, and temperature-humidity cycling, with salt fog added for sea freight and flatness plus dampness sampling for high-humidity-sensitive consumables. Candidate standards include the ISTA series, GB/T 4857, ASTM D4169, or the environmental test methods referenced from MIL-STD-810H, noting that referencing its methods does not imply military certification. Three types of organisation can perform the work: third-party laboratories, the supplier's own laboratory, and joint verification. When choosing, look at three things: does the sequence cover the real route including conditioning; are the samples in production-representative condition rather than hand-built prototypes; were the acceptance criteria confirmed in writing before testing. Write the test items, standard numbers, sample quantities and criteria into the contract annex and assign remediation and retest responsibility for failures. For the abrasive industry, the greatest value of testing is not the report itself but exposing hidden chipping, warping and dampness risk inside the factory rather than at the workshop issue counter.

Q: Is a case scrap after one trip, and how do I decide whether a returnable case can continue in service?

A: No, but you need explicit re-use criteria rather than a subjective judgement. Check at least five items. First, inspect the shell for cracks, deformation and through-damage, especially the floor and corners. Second, check whether the gasket has hardened, cracked, debonded or taken a permanent set, using feel and cross-section recovery. Third, verify that latches and hinges close reliably and carry load without looseness, corrosion or binding. Fourth, check the lining for collapse, fracture, dusting or missing locating blocks such as recesses or slots, because collapse or slot deformation directly lets the next wheel shift and cut-off discs knock together. Fifth, review desiccant failure and humidity-indicator colour change. If any item fails, replace that part before reuse. In practice the gasket, desiccant and lining slot wear are the highest-frequency problems on returnable abrasive cases, and linings carrying heavy large-diameter wheels need close inspection after two or three cycles. A log of case number, cycle count and inspection records is the lowest-cost, most direct management tool available, and the replacement criteria are detailed in protective case service life assessment.

Q: We have over a hundred wheel specs and dozens of cut-off disc diameters, each in small quantity. How can we control packaging cost?

A: The core idea is standard case types, variable linings and interchangeable labels. First, group cases into three to five standard sizes by diameter and pieces per case to cover most specifications, spreading tooling and fixture cost across many specs instead of dedicating one case design to one spec. Second, customise linings per diameter and thickness, but because the case cavity is standard the linings remain interchangeable, reducing inventory and changeover cost. Third, create a packaging record for each specification containing the spec table, lining drawing number, packing photographs and test records, so a repeat order reuses the approved design instead of re-engineering it. Fourth, for very low-volume trial specs use a standard case with a temporary lining as an interim measure and tool a formal lining once the spec stabilises. Fifth, bring cycle count into the cost model: single-use packaging is compared on unit price, while returnable packaging should be compared on unit price divided by cycle count plus maintenance cost, and plastic returnable cases often come out cheaper. Sixth, distributors can use interchangeable labels to share one case type across brands, further lowering inventory. For external cooperation, evaluate suppliers following how to choose a protective case OEM factory.

Q: How do we confirm that a supplier's lining genuinely fits our wheels or cut-off discs rather than merely looking close?

A: Replace visual judgement with quantifiable acceptance. Specify four items in the technical annex. First, first-article trial fitting, in which the supplier issues an insert drawing, the customer confirms fit using the physical part or spec table and retains trial-fit photographs, focusing on whether the wheel OD sits in the buffer ring, the bore is suspended, and cut-off discs stand upright without tipping. Second, location accuracy, defining the tolerance at critical features such as edge clearance, centre support and slot gap, generally judged by the absence of visible displacement and creasing. Third, an inspection rule using AQL sampling to define which appearance, dimensional and assembly characteristics are checked and what the acceptance limits are, especially the match between recess or slot size and part diameter. Fourth, transport verification, running a short-route or standard test for important specs and using the result to confirm lining effectiveness, sampling flatness and edge integrity on arrival. Also require the supplier to provide an assembly process record at the first-article stage, noting how much force is required and whether interference occurs. Any lining that needs significant force to load is over-designed in interference and will damage the consumable edge and the insert over time, so it should be sent back for revision at the first-article stage rather than reworked after volume production. For high-humidity-sensitive consumables, also specify lining moisture control, such as laminated high-barrier film and desiccant quantity, and double encapsulation requirements, with on-site dampness sampling where necessary.

Conclusion and Further Reading

Protecting abrasives and consumables in transit is fundamentally about using engineering method to preserve geometric integrity and a humidity boundary. Wheels suffer OD chipping and bore compression. Cut-off discs suffer warping, dampness and edge contact. Sandpaper and belts suffer folding and abrasive loss. The failure mechanisms differ, so the case and lining logic must differ too. The effective answer is not to buy the thickest case available. It is to decompose the transport route properly, then map shell strength, lining structure, sealing grade and restraint method onto specific loads and specific risks.

For procurement and packaging staff, the route to implementation compresses into four steps: define the route, determine form and risk, select case and lining, then close the loop with testing and first-article verification. Do those four steps properly and most arrival-chipping and installation-breakage problems will surface inside the factory rather than at the workshop issue counter. Where an insert drawing and case configuration proposal are needed for a specific wheel, cut-off disc or sandpaper and belt specification, provide the specification table, diameter and thickness, pieces per case and transport mode to JUNZHJIA, which will issue drawings against the specification and arrange first-article trial fitting.
