Most transit damage to elevator components is not caused by a case that breaks. It is caused by a case that is stiff enough but lined incorrectly, so the component migrates inside, contacts the shell at a single point, and accumulates resonant vibration. Traction machines, door operators and control cabinets are three classic high-value, high-precision categories. A traction machine typically weighs 300 to 1,500 kg, and shaft run-out or brake clearance is often specified in the 0.02 to 0.05 mm range. Door-operator guide rails, door knives and hanger plates are thin-gauge sheet-metal parts that deform permanently under compression. Inside a control cabinet, the variable-frequency drive, main board and encoder interface are highly sensitive to vibration and humidity. Specifying a case for these parts is therefore not a purchasing exercise. It is a protection design for one specific physical route.
This article is written for packaging engineers, procurement staff and quality managers at elevator OEMs, component plants, installation and service companies, and export trading firms. It provides a selection and acceptance method that can be applied directly: damage-mode analysis, lining design for the three component families, sealing and ingress protection, transport-test standards, a packing SOP, and supplier evaluation criteria. All figures quoted here are typical industry values or empirical ranges; the governing inputs are always the component drawing, its weight and centre of gravity, and the customer's acceptance specification. JUNZHJIA supplies custom-moulded inserts, OEM and ODM programmes, and supporting test documentation for elevator component cases.
Table of Contents
- 1. Why Elevator Components Carry Dual Risk: High Value and High Precision
- 2. Six Typical Transit Damage Modes for Elevator Components
- 3. Traction Machine Cases: From Machine Damping to Shaft-End Protection
- 4. Door Operator Cases: Compressive Design for Thin-Gauge Sheet Metal and Rails
- 5. Control Cabinet Cases: VFD, Main Board and Encoder Interface Protection
- 6. Component-to-Case Selection Matrix
- 7. Lining Materials Compared: EVA, PU, XPE and Structural Foam
- 8. Sealing and Ingress Protection: IEC 60529 and GB/T 4208
- 9. Transport Test Basis: ISTA, GB/T 4857, ASTM D4169 and MIL-STD-810H
- 10. Standard Packing Workflow (SOP)
- 11. Unpacking Acceptance, Re-Use and Case Maintenance
- 12. OEM/ODM Customisation and Supplier Evaluation
- Frequently Asked Questions
- Conclusion and Further Reading
1. Why Elevator Components Carry Dual Risk: High Value and High Precision
The elevator supply chain has a distinctive shape. Assembly plants are distributed across regions and countries, but traction machines, door operators and control cabinets are usually produced at a small number of concentrated sites. A component therefore travels from the end of the production line to a hoistway on site while passing through three to seven handling events and one to three warehousing transfers. For export shipments by sea, add 30 to 45 days of salt-laden, high-humidity exposure. For ordinary sheet-metal parts this is only a bump risk. For elevator core components it is a three-layer risk stack covering dimensional accuracy, electrical performance and corrosion protection.
From an engineering standpoint, the risk splits into three chains.
- Mechanical chain: vibration, shock, stacking load and strap compression. The traction sheave shaft and the brake are precision-fit assemblies; a single transient shock above roughly 5 g can change clearances.
- Environmental chain: humidity, salt fog, temperature swing and condensation. Printed circuit boards and copper busbars inside a control cabinet are prone to creepage and oxidation under high humidity. Condensation driven by the day-night temperature cycle inside a sea container is a silent failure source.
- Management chain: missing markings, mixed accessories, and missing documentation at the point of unpacking. A hoistway entrance is not a clean unpacking environment. Once the inside of a case is disorganised, the loss rate for loose parts rises sharply.
A common misconception is to treat shell compressive strength as the only metric. In practice, shell strength addresses external loads, while lining and restraint address internal relative displacement. Most hidden damage to elevator components comes from the second mechanism: the case arrives looking perfect while the component has migrated several centimetres inside it.
A competent elevator component case must therefore answer four questions at once. Can the shell survive stacking and drop loads? Can the lining lock the component into its designed position? Can the sealing system block moisture and salt fog? Can people pack and unpack quickly and without error? The sections below work through these four questions in order.
2. Six Typical Transit Damage Modes for Elevator Components
In after-sales data, transit-related damage to elevator components clusters tightly. It can be reduced to six modes. Understanding these modes is the first step in selection, because each one dictates where the lining must apply force and where the shell must be reinforced.
| Damage mode | Typical components | Trigger | Priority countermeasure |
|---|---|---|---|
| --- | --- | --- | --- |
| Shaft-end and flange deformation | Traction shaft, encoder end cover | Component displaces, metal-to-metal impact | Dedicated shaft cradle plus retaining ring |
| Thin-gauge sheet-metal denting | Door-operator rail, door knife, hanger plate | Stacking load, over-tight straps | Load-bearing skeleton plus surface-contact pad |
| Electronic board vibration failure | VFD, main board, power board | Cumulative long-haul road vibration | Low-rebound pad plus full floating restraint |
| Connector loosening or pin breakage | Encoder plug, terminal block | High-frequency vibration, cable whip | Separate cable channel plus tie-down anchors |
| Coating scuffing and rusting | Brake cover, machine base underside | Rubbing plus humidity plus salt fog | Conforming pad plus desiccant plus high-barrier film |
| Loose accessory loss | Bolts, oil seals, shipping documents | No compartments, no checklist discipline | Compartmented accessory box plus packing list label |
All six modes share one property: the damage occurs in transit but is only discovered on site. Discovery on site means responsibility is hard to assign, rework lead time is long, and customer confidence suffers. Leading elevator companies therefore adopt a pre-shipment verification policy, using transport testing to expose risk inside the factory rather than at the hoistway.
It is worth noting that the ranking of damage modes depends strongly on the transport mode. Domestic short-haul road transport is dominated by stacking pressure and handling shock. Export sea freight is dominated by cumulative vibration, humidity and salt fog. The same traction machine should use a different case and lining specification for domestic distribution than for export by sea, which is why hot, humid and cold-weather case design deserves treatment as its own design topic rather than an afterthought.
3. Traction Machine Cases: From Machine Damping to Shaft-End Protection
The traction machine is the heaviest, most offset and most precise of the elevator components. It typically comprises a machine base, traction sheave, main shaft, brake, encoder and terminal box. Its centre of gravity is usually offset toward the sheave side, and the mass distribution is asymmetric: heavy at one end, with a protruding shaft at the other. This dictates that the case design solve three problems: load-bearing base, centre-of-gravity constraint, and shaft-end protection.
Base and load path. A traction machine should never be left hanging suspended within soft padding. The more robust approach is to let the machine base or dedicated mounting feet bear directly on high-density load blocks, with the case floor and a pallet board carrying the weight together. The load path should run component to rigid block to case floor to pallet, rather than component to soft foam to case sidewall. The latter converts weight into lateral compression, and after prolonged stacking the pad compresses, the component sinks, and alignment is lost. The same logic governs cushion lining and case floor interaction.
Centre-of-gravity constraint. The sheave side usually holds the centre of gravity. That side needs a reinforced support block, and the top needs a locating pressure block, producing three-dimensional "support below, press above" restraint. Strapping should be auxiliary only. Straps relax under long-haul vibration, and once a strap relaxes, the component begins to move.
Shaft-end protection. The protruding shaft, the encoder end cover and the brake release lever are the three most vulnerable points. Two methods are common in practice. The first is a dedicated shaft cradle, an engineering-plastic or aluminium V-block matched to the shaft diameter so the shaft section is never left unsupported. The second is a soft protective sleeve secured with a retaining ring so the shaft cannot contact the case wall or another component. Encoder end covers are usually protruding and thin, so allow 20 to 30 mm of clearance. Never let padding press directly against them.
Brake and terminal box. Brake adjustment bolts and exposed spring ends bend easily. The cable exit on the terminal box must not be side-loaded. Inside the case, orient both features toward the centre and leave clearance around them.
For rental or service-fleet traction machine cases that must survive many cycles, integrate handles into the sidewalls and mark lifting points. Printing or labelling the centre-of-gravity location and lifting-point diagram on the inside of the lid is essential safety information for site rigging. JUNZHJIA typically builds these heavy-component cases with a composite structural-foam and EVA insert that balances load bearing with low rebound, and issues an insert drawing for approval against the specific traction machine model before tooling.
4. Door Operator Cases: Compressive Design for Thin-Gauge Sheet Metal and Rails
The transport challenge for door operators, including landing-door and car-door operators, is the opposite of the traction machine. The weight is modest, but the geometry is long, slender and low in stiffness. A typical door operator includes a guide rail, door knife, hanger plate, door lock, linkage and controller, frequently 1.5 to 2.5 m long. It is a high slenderness-ratio assembly.
The core risk for a high slenderness-ratio component inside a case is mid-span bending. If only the two ends are supported, the unsupported middle section responds to transport vibration with pronounced harmonic motion, and prolonged excitation degrades rail straightness. The correct approach is as follows.
- Use multiple supports, with support spacing generally kept between 500 and 700 mm and a mid-span support block always present.
- Cover the contact faces of support blocks with felt or soft EVA to avoid hard-contact scuffing.
- Orient the rail so it bears load in its strong axis, letting the section with the highest moment of inertia carry the bending moment. Do not lay it on its side.
- Door knives are thin plate parts. Store them vertically in slots or flat in a dedicated layer. Never stack other parts on top of them.
Door locks, linkages and similar small parts should be consolidated into a compartmented box so they cannot move freely. This kind of wandering small part is the most common source of missing-item claims on door operators, and a removable divider system is the practical answer.
Case format. Slender components usually suit a long case or a case-plus-cradle arrangement, and the sidewalls need transverse ribs to resist bulging. For opening method, a long case suits a lift-off lid better than a drawer-style design, because a drawer loses support halfway out and the component can topple.
Rain and pressure equalisation. Door operators are mainly sheet metal. If water enters and cannot dry, internal cavities rust. For export shipments, fit a pressure equalisation valve so the case can breathe without drawing in moisture as altitude and temperature change.
5. Control Cabinet Cases: VFD, Main Board and Encoder Interface Protection
The control cabinet, or control panel, is the most electrically fragile of the elevator components. Its value concentrates in three areas: the variable-frequency drive, the main controller board, and the terminals. The core protection objective is three-fold: anti-vibration, anti-moisture and anti-static (ESD).
Anti-vibration. The failure mechanism for inverters and PCBs is fatigue accumulation. A single vibration event is modest, but several hours of continuous road excitation propagate through solder joints, connectors and screws, eventually producing cold joints or fractures. The standard engineering answer is a floating strategy: wrap the cabinet on all sides in low-rebound, low-resonance-frequency padding so the cabinet never touches the shell rigidly. Compared with structural foam, low-rebound EVA or PU dissipates energy better under repeated excitation, a difference examined in more detail in protective case foam material comparison.
Anti-moisture. A control cabinet is large with many internal cavities, so it breathes as temperature changes. Under IEC 60529, with GB/T 4208 as the equivalent national standard, IP65 resists water jets and IP67 tolerates short immersion. However, an ingress protection rating is not a moisture rating. A well-sealed case becomes a trap: after a day-night temperature cycle, internal moisture cannot escape easily. Practical schemes therefore combine shell sealing at IP65 or better, an effective desiccant, and a humidity indicator card, with a pressure equalisation valve where the temperature swing is large.
Anti-static. Main controller boards are vulnerable to electrostatic discharge during handling. If the case is opened frequently in a dry environment, consider an insert material with ESD capability plus a grounding path, as described in ESD shielding case construction. Note that ESD protection is aimed at board-level transport; when the whole cabinet travels assembled, the cabinet itself acts as a shield, so adding ESD features should follow an actual scenario assessment rather than a default rule.
Cable and terminal management. Pre-wired harnesses whip during transport and can tug terminals loose. Tie the harness to fixed points inside the cabinet before packing, or provide a dedicated cable channel in the case so the cabinet body never presses on the wiring.
Size and handling. Control cabinets are large with a high centre of gravity, so manual handling is risky. The case should integrate castors and a telescopic handle, or provide forklift pockets; case castors and trolley handle options covers the usual configurations. A lid that opens should have a stay or limit so it cannot fall back on the operator.
6. Component-to-Case Selection Matrix
The matrix below gives selection guidance for common elevator components so that procurement and packaging engineers can locate an answer quickly. The values are typical recommendations; the component's measured weight, centre of gravity and actual transport route always govern.
| Component category | Typical weight | Insert scheme | Case format | Sealing guidance | Critical constraints |
|---|---|---|---|---|---|
| --- | --- | --- | --- | --- | --- |
| Traction machine (PM synchronous) | 300-900 kg | Structural foam load blocks with EVA facing | Heavy pallet case or crate with insert | IP65 | Base bearing, shaft clearance, lifting-point marking |
| Traction machine (worm gear) | 600-1,500 kg | High-density load blocks with steel pallet plate | Heavy frame case | IP65 | Offset centre of gravity, oil seal protection |
| Door operator (landing or car) | 40-150 kg | Multi-point supports with felt facing | Long lift-off lid case | IP65/IP67 | Support spacing, rail strong-axis orientation |
| Control cabinet (control panel) | 60-300 kg | Low-rebound EVA, full floating wrap | Upright case with castors | IP65 plus desiccant | Vibration, moisture, ESD |
| Encoder or sensor | Under 5 kg | Compartmented box with soft lining | Carrying case | IP67 | Isolation, crush resistance |

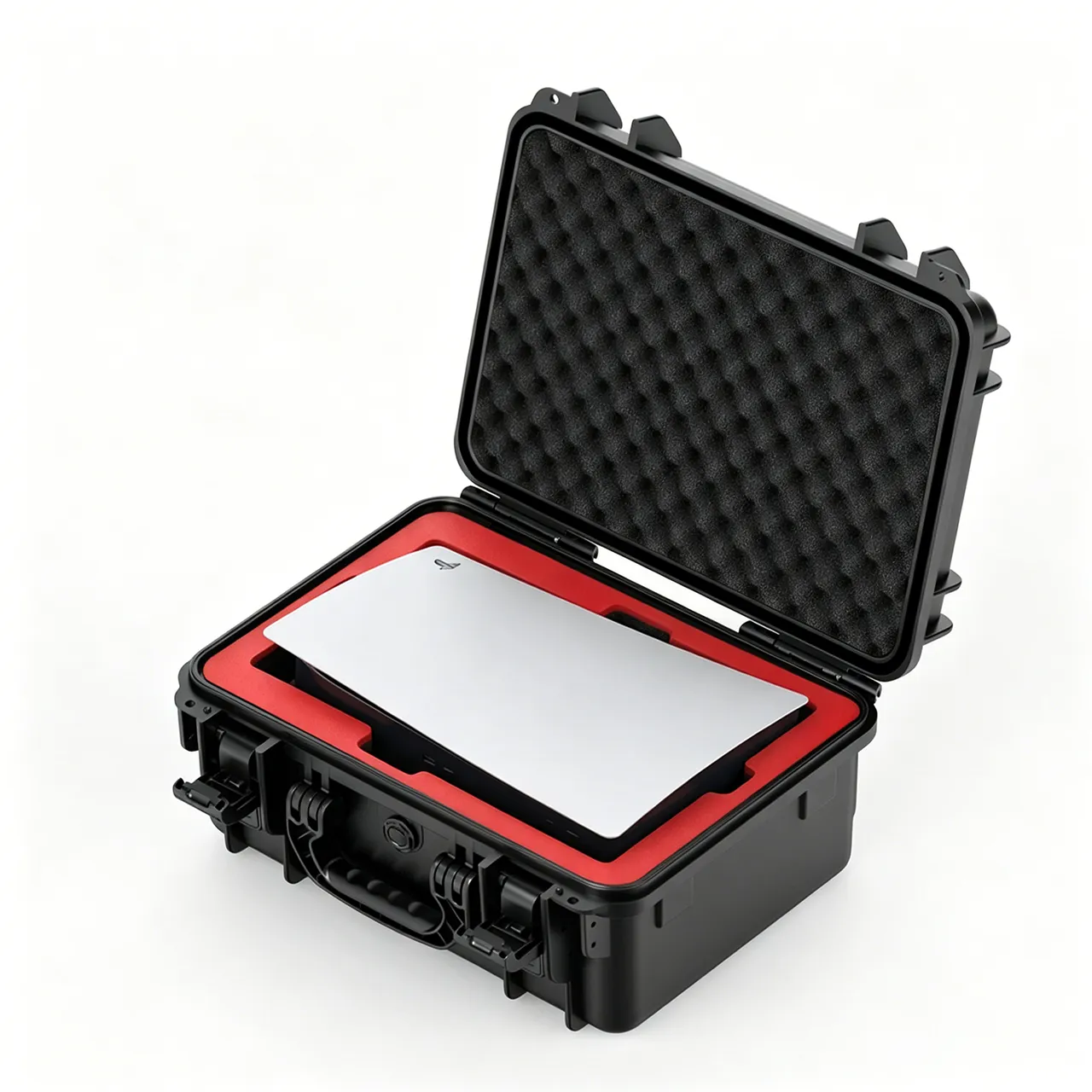

| Accessories (bolts, oil seals) | Under 20 kg | Compartmented accessory box | Internal or clip-on | IP65 | Packing list label, loss prevention |
One empirical rule is worth keeping in mind. Once a component exceeds roughly 60 kg, assume manual handling will eventually fail, so the case must offer mechanical lifting or forklift capability. Once the longest side exceeds 1.2 m, re-check mid-span support. These two rules alone eliminate a large share of site incidents.
7. Lining Materials Compared: EVA, PU, XPE and Structural Foam
The lining is the soul of an elevator component case. The same shell with a different lining can differ by an order of magnitude in protection performance. The four common material families each have a valid range.
| Material | Typical density | Rebound behaviour | Processing | Best-fit components | Cautions |
|---|---|---|---|---|---|
| --- | --- | --- | --- | --- | --- |
| EVA | 40-120 kg/m3 | Low rebound, good damping | CNC cutting, lamination | Control cabinets, precision parts, general use | Softens slightly when hot; verify temperature rating |
| PU foam | 25-60 kg/m3 | Medium-low rebound | Die cutting, cutting | Medium-weight components | May collapse after prolonged compression |
| XPE/IXPE | 30-80 kg/m3 | Medium rebound, good weatherability | Lamination, cutting | Sheet-metal parts, door operators | Limited load-bearing capacity |
| Structural foam (cross-linked PVC/PE) | 60-300 kg/m3 | High rigidity, low deformation | CNC milling | Heavy components such as traction machines | Requires CNC machining; higher cost |
The selection logic reduces to three steps. Define the load first, meaning the pressure per unit area that the component exerts on the pad. Then define the vibration environment, meaning the excitation level of road, sea or air transport. Finally define the handling frequency, since one-way shipment can favour rigidity while repeated cycles favour toughness. Where handling frequency is high, also consider lining wear resistance and cleanability, and factor in how to clean a protective case without degrading the lining.
Composite linings are common: structural foam in the load-bearing zones, EVA or felt facing in the contact and cushioning zones. This combination delivers rigid location and a soft interface at the same time. Before committing to volume production, run a trial fit and a short-route transport check, and let the measured result rather than the material data sheet decide the final specification. The full route from 3D data to finished insert is covered in EVA insert customisation process and custom foam insert design guide. JUNZHJIA normally issues an insert proposal drawing for approval against the component's 3D data before tooling, which prevents the common failure of tooling the wrong geometry first.
8. Sealing and Ingress Protection: IEC 60529 and GB/T 4208
Elevator components face widely varying transport environments. Domestic distribution is mostly dry overland freight, while export shipments by sea face high humidity, salt fog and temperature swing. The goal of sealing design is not maximum tightness but a match to the environment.
What the IP code means. The IP code defined in IEC 60529 uses two digits. The first denotes solids protection (0 to 6) and the second denotes water protection (0 to 9K). The equivalent Chinese standard is GB/T 4208. Typical configurations for elevator component cases are as follows.
- IP54: limited dust protection, splash resistant. Suitable for short domestic routes with covered transport.
- IP65: dust tight, water-jet resistant. Suitable for the large majority of elevator components on domestic and near-sea routes.
- IP67: dust tight, short-term immersion, typically 1 m for 30 minutes. Suitable for sea freight, open-air storage and high-humidity regions.
- IP68: continuous immersion. Needed only in extreme scenarios such as vessel decks or long-term outdoor storage.
Important note: an IP rating verifies that external water does not enter. It says nothing about internal condensation. A sealed case can still condense internally across a day-night temperature cycle, so high-value control cabinets should also carry desiccant and a humidity indicator, with a pressure equalisation valve where the differential is large.
Seal selection. Case sealing relies on gasket profiles, commonly silicone, EPDM or foamed TPE. Silicone offers the best temperature and weathering resistance but costs more. EPDM balances ageing resistance and weatherability for outdoor duty. Foamed TPE has low compression set and suits cases that open and close frequently. The gasket cross-section, whether O-profile, D-profile or adhesive-backed U-profile, must match the case groove, as set out in hinge, latch and seal selection. Seals are wear items and belong on the spare parts list, with replacement intervals set by open-close count and storage environment, which is one of the main drivers of overall protective case service life.
Latches and hinges. Elevator component cases are large and their lids are heavy, so latch count must match lid stiffness. When lid length exceeds 800 mm, three or more latches are advisable to prevent the middle from lifting and breaking the seal. Hinges should be load-bearing metal parts with corrosion protection.
9. Transport Test Basis: ISTA, GB/T 4857, ASTM D4169 and MIL-STD-810H
"Our cases are strong" is not an acceptable statement. An acceptable statement is that the case passed a specific test sequence under a named standard. Four families of standards are commonly used for elevator component cases.
The ISTA series. Test procedures from the International Safe Transit Association are graded by package format and weight. For components above 68 kg shipped as unitised loads or large cases, ISTA 3E for unitised loads or ISTA 3B for less-than-truckload distribution are typical references, while ISTA 2A and 2B suit single packages better. The value of ISTA lies in sequencing: conditioning, then shock or drop, then vibration, then inspection, simulating a whole route rather than a single event, as explained in ISTA transport testing procedures.
The GB/T 4857 series. These Chinese standards cover basic test methods for transport packages, including vibration, shock, stacking and drop. Domestic tenders and acceptance documents reference GB/T 4857 frequently, and its practical application to case design is set out in GB/T 4857 transport packaging.
ASTM D4169. This ASTM standard for performance testing of shipping containers assigns test intensity by distribution cycle, and is widely used for packaging validation targeting the North American market. See ASTM D4169 distribution cycle testing.
MIL-STD-810H. Its environmental test methods, covering vibration, shock, temperature and humidity, and salt fog, are frequently cited. This must be stated clearly: MIL-STD-810H is used here as a source of environmental test methodology and does not imply that any product has obtained military certification. Its value lies in providing a rigorous environmental testing methodology that companies can use to design internal verification programmes, as discussed in MIL-STD-810H environmental test compliance.
| Test type | Common standard | Example parameters | Relevance to elevator components |
|---|---|---|---|
| --- | --- | --- | --- |
| Random vibration | ISTA 3E, ASTM D4169 | Power spectral density, duration | Verifies damping and displacement control |
| Shock and drop | GB/T 4857, ISTA | Drop height, peak acceleration | Verifies shaft-end and thin-wall protection |
| Stacking | GB/T 4857.3 | Load, duration, temperature and humidity | Verifies long-term compressive strength |
| Temperature and humidity cycling | MIL-STD-810H Method 507 | Temperature range, cycle count | Verifies sealing and condensation risk |
| Salt fog | ISO 9227, ASTM B117 | Concentration, duration | Verifies metal parts and coating protection |
Where UL94 applies. UL94 is a flammability classification standard for plastics, used to rate case plastic parts, insert materials and gasket materials. A hoistway is a space with fire requirements, and some customers specify flame-retardant packaging materials, so this should be clarified at the enquiry stage rather than changed later.
On test documentation. Buyers normally want third-party reports or internal test records. Write the test item, standard number, sample quantity, acceptance criteria and report issuer into the technical annex of the contract. Responsibility boundaries then stay clear if a dispute arises.
10. Standard Packing Workflow (SOP)
The same materials produce different outcomes depending on who packs them. Writing the packing process as an SOP and confirming a first article is the most economical investment available for reducing transit loss. The workflow below applies to traction machines, door operators and control cabinets.
- Verify and clean. Confirm the component model, quantity and accessory list. Remove oil, grease and metal swarf, especially from mating surfaces. Once swarf enters a lining, it acts as an abrasive under vibration.
- Pre-treat for protection. Fit soft protective sleeves over exposed shaft ends and brake externals. Apply a thin anti-rust film to bare metal. Cap electrical interfaces with dust covers.
- Pre-fit the lining. Place load blocks and locating blocks into the case according to the position markings, and confirm nothing is loose or misplaced. The first article should be trial-fitted and recorded.
- Position the component. Lower the component into the designed attitude using a lifting device or dedicated fixture. Never drag it and never lift from a single point. After positioning, visually confirm full contact with the padding.
- Restrain and locate. Install the top locating pressure block. Straps are auxiliary only, tightened just short of marking the component surface. Confirm the component shows no perceptible movement when pushed by hand in any direction; an empirical criterion is displacement under 2 mm.
- Accessories and documents. Place bolts, oil seals and special tools in the compartmented box. Put the packing list, certificate and manual into a document pouch fixed to the inside of the lid.

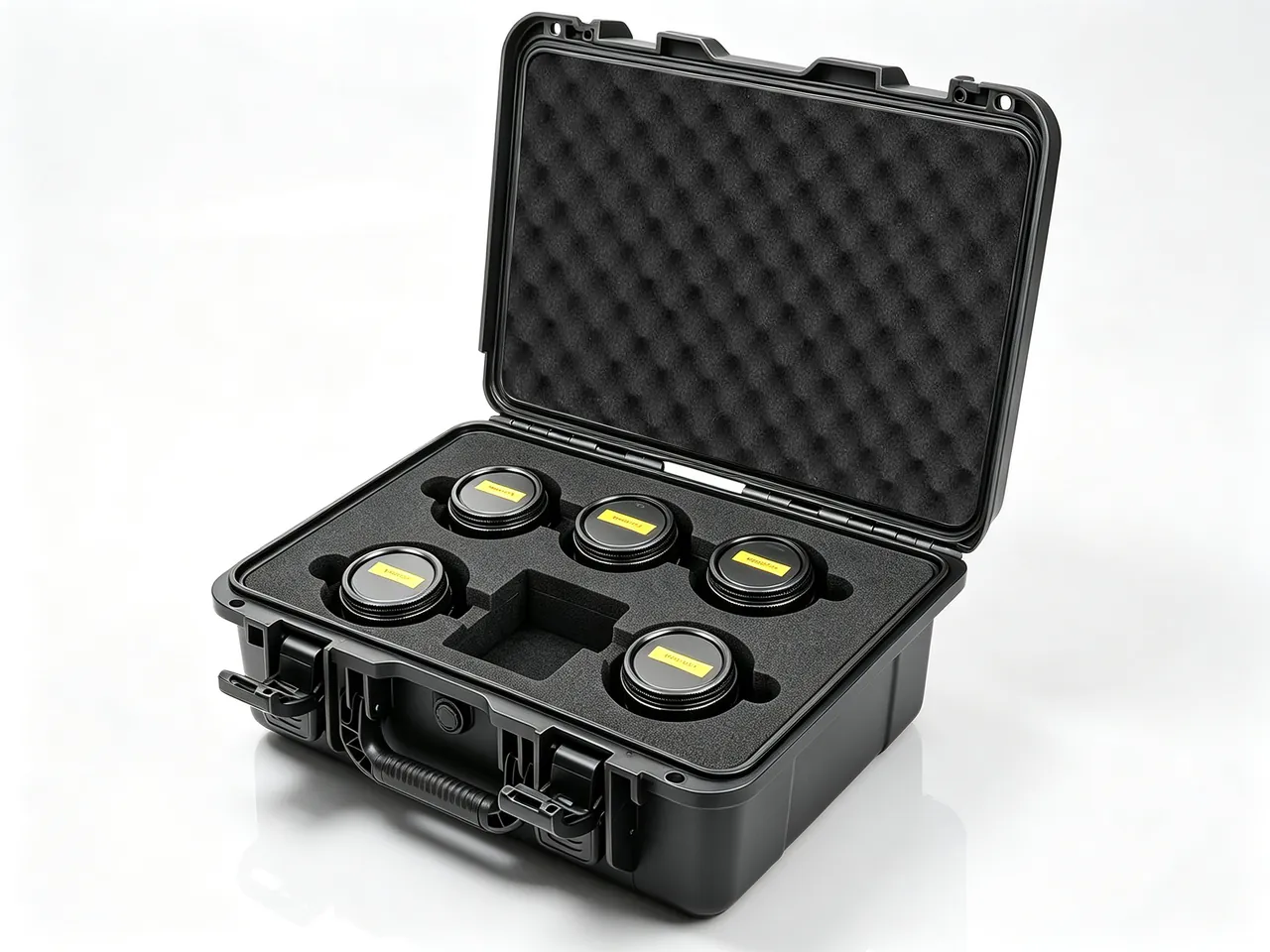

- Seal and dry. Add desiccant and a humidity indicator card. Check the gasket for damage or debris. Close the latches and confirm uniform loading around the perimeter.
- Mark and record. Apply centre-of-gravity, lifting, rain-protection and this-way-up labels. Photograph the packed case and archive the images for traceability.
Field experience: packing photographs are among the most effective evidence for resolving arrival-damage disputes. Take four fixed-angle images covering the empty lined case, the component in position, the completed restraint, and the closed case exterior.
People and tools. Heavy components require lifting equipment, never brute force. During trial fitting, keep a rubber mallet, a marker and feeler gauges available to confirm fit.
11. Unpacking Acceptance, Re-Use and Case Maintenance
Unpacking acceptance. Site unpacking should follow the order of exterior, interior, then power-up. Check the case for drop deformation, water ingress traces and seal integrity. After opening, check desiccant condition and the humidity indicator colour. Verify accessories and documents. Finally inspect the component exterior, shaft ends and coatings. If an anomaly appears, photograph it on the spot, preserve the original packaging, and do not move the component a second time.
Re-use scenarios. In elevator service and modernisation work, component cases are frequently reused: a removed traction machine or door operator goes back to the factory for repair. Re-use demands more of a case than first shipment, because the case has already been through one transport cycle and both gaskets and linings have aged. Before reuse, check three things: whether the gasket has hardened or cracked, whether the lining has collapsed or deformed, and whether the latches close reliably. If any of the three fails, replace the part before reuse.
Routine maintenance. Store cases indoors in a ventilated, dry area. Avoid prolonged direct sunlight, since ultraviolet exposure ages gaskets and plastic parts. Avoid long-term stacking that permanently compresses the lining. Periodically wipe the gasket with a mild neutral cleaner and check for embedded grit. The full routine is covered in how to clean a protective case.
Wear-part list. Build a wear-part list for returnable cases: gasket, latches, hinges, castors and desiccant. In practice, the gasket and desiccant are replaced most often and usually account for the largest share of total maintenance cost.
12. OEM/ODM Customisation and Supplier Evaluation
Elevator component cases are a high-variation, fragmented-batch category. An OEM may hold dozens of component models, each in modest quantity, but all subject to the same requirement. This structure means the procurement strategy should be built around reusable tooling and variable linings.
Standardise the case, customise the lining. Start with a few standard case sizes graded by volume and load capacity to cover most components, then adapt specific models through custom linings. This amortises tooling investment across many models while preserving protection performance, an economic case worked through in custom case mould cost analysis.
Five dimensions for supplier evaluation.
- Engineering capability: can the supplier produce an insert drawing from 3D data, run a trial fit, and support structural calculation or simulation?
- Materials and process: batch consistency of EVA and structural foam density, gasket cross-section and hardness, appearance and fit of moulded parts.
- Test capability: can the supplier provide vibration, drop, stacking and IP water test records, or work with a third party to obtain them?
- Delivery and capacity: capacity flexibility in peak season and reliability of the quoted lead time.
- Quality system: batch inspection rules, appearance acceptance criteria, and non-conforming material handling, using the sampling practice described in custom case acceptance and AQL.
On OEM and ODM. Elevator OEMs often want their own brand on the packaging. OEM and ODM cooperation must clarify appearance marking, whether by silk screen, hot stamp or nameplate; tooling ownership and cost sharing; minimum order quantity; exclusivity terms; and drawing confidentiality. Drawings and 3D data are core assets, so sign a non-disclosure agreement before cooperation and define the return and destruction obligations for materials if the project ends.
Enquiry checklist. A practical enquiry should include the component model and 3D data, weight and centre of gravity, transport mode and route, number of re-use cycles, storage environment, target IP rating, test requirements, marking requirements, annual volume and delivery cadence. The more complete the input, the closer the supplier's proposal will be to a production-ready state. General guidance on evaluating factories is available in how to choose a protective case OEM factory.
JUNZHJIA normally works in the following sequence for elevator component cases: accept 3D data or take a physical impression, issue an insert drawing and case configuration proposal, confirm the first article by trial fitting, then move to volume production with batch inspection and supporting test documentation. For long-term customers, a model archive is maintained so repeat orders for the same component reuse the approved design.
Frequently Asked Questions
Q: A traction machine is very heavy. Is a wooden crate or a plastic protective case the better choice?
A: It depends on weight, re-use cycles and transport mode, not on material preference. For one-way export shipments above roughly one tonne where the case will not be recovered, a wooden crate with a custom lining often has a lower initial cost, but wooden crates absorb moisture, deform, are subject to ISPM 15 heat treatment or fumigation rules for export, and cannot survive repeated handling. For components in the 300 to 900 kg range that must be reused or stored long term, a rotationally moulded or modified-plastic case with a structural-foam load-bearing lining performs better: impact resistance is consistent, the case can be washed, gaskets are replaceable and service life is predictable. A third combination also works well in practice, namely a plastic case body with a wooden load-bearing pallet plate, which balances load capacity and sealing. The decisive step is to answer three questions first: how will the carrier handle the case, will it be stored in the open, and will it be returned. Decide the material after that, otherwise the first cycle will produce cracked shells or collapsed linings.
Q: Does a control cabinet case really need to be IP67?
A: No. The IP rating should match the actual exposure, and chasing the highest number brings both cost and breathing problems. For domestic road transport with covered storage, IP54 to IP65 is usually sufficient. For sea freight, open-air storage, rainy or high-salt-fog regions, IP67 is advisable. Two points deserve emphasis. First, IP67 only guarantees that external water does not enter; it does not prevent internal condensation, and the day-night temperature swing on a sea crossing will produce visible condensation inside a sealed cabinet, making desiccant and a humidity indicator card close to mandatory. Second, the higher the sealing level, the greater the internal-external pressure differential during temperature change, which makes the case harder to open and can even distort the gasket, in which case a pressure equalisation valve is more effective than a higher IP number. The correct approach is a combination of sealing, desiccant and pressure equalisation rather than a single figure.
Q: A door-operator rail loses straightness in transit. What usually causes this?
A: Three causes dominate, and most relate to how the rail is supported inside the case. The first is too few support points or excessive spacing, leaving an unsupported mid-span that bends under transport vibration; keeping support spacing between 500 and 700 mm with a mid-span block is the usual guidance. The second is incorrect orientation: a rail laid on its side has a much lower moment of inertia and therefore much lower bending resistance, so it should bear load in its strong axis. The third is stacking or laying other components on the rail, producing permanent deformation under sustained compression. Two secondary factors also matter: straps tightened directly across the middle of the rail create local stress concentration, and insufficient sidewall stiffness allows the case to bulge under stacking and push the rail sideways. When investigating, record both packing photographs and measured straightness at fixed points on arrival so that an incoming-material problem can be distinguished from a transport problem.
Q: How do I choose between EVA and structural foam for a lining?
A: The decision is driven by the combination of load density, vibration level and handling frequency. Where component weight concentrates on a small projected area, such as machine mounting feet or flange faces, the pressure per unit area is high and structural foam or high-density EVA is preferable because deformation under compression is small and locating accuracy is retained over time. Where the component is thin-gauge sheet metal or a circuit board, the risk is vibration rather than compression, and low-rebound EVA or PU dissipates energy better and reduces transmission. For returnable cases with high handling frequency, the lining must tolerate repeated compression and abrasion, so choose a tough material with low compression set and add felt or a film facing at critical contact faces. A common hybrid approach uses structural foam in load zones and EVA or felt in contact and cushioning zones, combining rigid location with a soft interface. Run a trial fit and a short transport check before volume production and let measured results decide.
Q: Which transport tests should an elevator component case pass, and who performs them?
A: The common verification set is random vibration, shock and drop, stacking, and temperature-humidity cycling, with salt fog added where relevant. Candidate standards include the ISTA series, GB/T 4857, ASTM D4169 distribution cycles, or the environmental test methods referenced from MIL-STD-810H, noting that referencing its methods does not imply any military certification. Three types of organisation can perform the work: third-party laboratories, the supplier's own laboratory, and joint verification by both parties. When choosing, focus on three things. Does the test sequence cover the real transport route, including conditioning? Are the samples in production-representative condition rather than hand-built prototypes? Were the acceptance criteria confirmed in writing before testing? It is also worth checking whether the laboratory can reproduce the specific case size and mass, since a small shaker table cannot faithfully test a 300 kg packed case. Write the test items, standard numbers, sample quantities and criteria into the contract annex. For the elevator industry the greatest value of testing is not the report itself but exposing hidden risk inside the factory rather than at a site hoistway.
Q: Besides vibration, what should an export sea-freight case for elevator components address?
A: The governing variables for sea freight are time, humidity, salt fog and stacking. First, a sea crossing often lasts 30 to 45 days, so desiccant selection and quantity must be calculated from internal volume and duration, with a humidity indicator card for arrival assessment. Second, the day-night temperature swing inside a container drives condensation, so a pressure equalisation valve is advisable so the case does not repeatedly inhale moisture. Third, open-air storage and deck carriage expose metal hinges, latches and handles to salt fog, so these need corrosion protection and steel pallet plates need a defined coating system. Fourth, stacking layers are usually higher at sea, so compressive strength must be calculated for the worst-case stack rather than an average. Fifth, export wooden packaging must meet ISPM 15 fumigation or heat treatment requirements; a plastic case avoids this issue but must still satisfy the destination market's environmental requirements for plastic packaging. Finally, sea freight usually connects to local truck delivery, and that last short leg often produces the most severe handling shock, so it should not be ignored.
Q: Is a case scrap after one trip, and how do I decide whether a returnable case can continue in service?
A: No, but you need explicit re-use criteria rather than a subjective judgement. Check at least five items. First, inspect the shell for cracks, deformation and through-damage, especially the floor and corners. Second, check whether the gasket has hardened, cracked, debonded or taken a permanent set, using feel and cross-section recovery as indicators. Third, verify that latches and hinges close reliably and carry load without looseness, corrosion or binding. Fourth, check the lining for collapse, fracture, dusting or missing locating blocks, since collapse directly defeats location on the next trip. Fifth, review castor and handle wear. If any item fails, replace that part before reuse rather than scrapping the whole case. In practice the gasket and desiccant are replaced most often, and linings carrying heavy components usually need close inspection after two or three cycles. Maintaining a log of case number, cycle count and inspection records is currently the lowest-cost and most direct management method available, and it also gives you the data needed to justify replacement budgets.
Q: We have dozens of component models, each in small quantities. How can we control packaging cost?
A: The core idea is standardised cases, customised linings and numbered management. First, group cases into three to five standard sizes by volume and load capacity to cover most models, spreading tooling and fixture cost across many models instead of dedicating one case design to one model. Second, customise linings per component model, but because the case cavity is standard the linings remain interchangeable, which reduces both inventory and changeover cost. Third, create a packaging record for each model containing 3D data, lining drawing number, packing photographs and test records, so a repeat order reuses the approved design instead of re-engineering it. Fourth, for prototype or low-volume trial items with a limited life, use a standard case with a temporary lining as an interim measure and tool a formal lining once the model stabilises. Fifth, bring cycle count into the cost model: single-use packaging is compared on unit price, while returnable packaging should be compared on unit price divided by cycle count plus maintenance cost, and in many cases plastic returnable cases come out cheaper.
Q: How do we confirm that a supplier's lining genuinely fits our component rather than merely looking close?
A: Replace visual judgement with quantifiable acceptance. Specify four items in the technical annex. First, first-article trial fitting, in which the supplier issues an insert drawing, the customer confirms fit using the physical part or 3D data, and trial-fit photographs are retained. Second, location accuracy, defining the permissible gap range at critical features such as shaft cradles and flange locators, generally judged by the absence of visible displacement. Third, an inspection rule, using AQL sampling practice to define which appearance, dimensional and assembly characteristics are checked and what the acceptance limits are. Fourth, transport verification, running a short-route or standard test for important models and using the result to confirm lining effectiveness. Also ask the supplier for an assembly process record at the first-article stage, noting how much force is required and whether interference occurs. Any lining that needs significant force to load is over-designed in terms of interference, and over time it will damage the component surface and the insert alike, so it should be sent back for revision at the first-article stage rather than reworked after volume production.
Conclusion and Further Reading
Protecting elevator components in transit is fundamentally about managing uncertainty with engineering method. Traction machines suffer shaft-end impact and loss of centre-of-gravity control. Door operators suffer mid-span bending and thin-wall compression. Control cabinets suffer cumulative vibration and moisture ingress. The failure mechanisms differ, so the case and lining logic must differ too. The effective answer is not to buy the thickest case available. It is to decompose the transport route properly, then map shell strength, lining structure, sealing grade and restraint method onto specific loads and specific risks.
For procurement and packaging engineers, the route to implementation compresses into four steps: define the route, determine load and environment, select case and lining, then close the loop with testing and first-article verification. Do those four steps properly and most arrival-damage problems will surface inside the factory rather than at a site hoistway. Where an insert drawing and case configuration proposal are needed for a specific component model, provide the 3D data, weight, centre of gravity and transport mode to JUNZHJIA, which will issue drawings against the model and arrange first-article trial fitting.
