A protective case rarely travels straight from the factory to the point of use. Before it reaches a work site it has usually crossed hundreds or thousands of kilometers by truck, rail, ship, and sometimes aircraft. A pallet bounces across expansion joints, a rail car jolts through a coupling impact, a ship's engine pushes low-frequency roll through the deck, and an aircraft adds a sharp transient at rotation and touchdown. All of this motion travels up through the pallet, the vehicle floor, and the case wall until it reaches the latches, hinges, seal strips, and lining. What separates vibration from a single impact is the time scale. A drop is one brief, high-amplitude event; vibration is a long, low-amplitude, endlessly repeated input. That difference moves the assessment focus away from ultimate strength and toward fatigue, fastener loosening, and resonance amplification. A case that looks flawless after a drop test can still develop cracked welds, rattling hardware, or collapsed foam after weeks of transport. This article walks through the container-side engineering of vibration testing: where the excitation comes from, how sine and random loading differ, how resonance is located, how fixtures shape the result, how linings dissipate energy, how to read failure modes, and how test standards map onto one another. The goal is a practical assessment workflow that procurement, quality, and design teams can actually apply to a protective case program. Throughout, the discussion stays strictly on the container: the shell, the foam, the hardware, the seals, and the way they respond to sustained motion. Nothing here concerns the contents of a case. The container is treated as a mechanical system whose job is to survive the journey intact, and vibration is one of the most persistent threats it must resist.
1. Why Vibration Testing Matters for Long-Haul Transit
A protective case does not retire to a shelf once it leaves the production line; it begins a long logistics journey. Every bounce of the pallet and every undulation of the truck floor travels through the wall and into the latches, hinges, and lining, producing a continuous cycle of small, repeated stress. The central question a vibration test answers is whether that gentle but persistent input erodes the structure a little at a time. Unlike impact, vibration targets fatigue and loosening: it asks whether a weld initiates a crack, whether a screw loses preload, whether foam collapses, or whether a seal hardens. Many of these defects are invisible at unpacking yet surface during the next shipment or a long storage period, driving repair, claims, or downtime. Writing vibration endurance into acceptance criteria moves that risk from the field back into procurement and design. A common industrial approach pairs distribution testing with a drop program, because one governs ultimate strength while the other governs accumulated life, and neither substitutes for the other. Buyers gain data that constrains a supplier's material and structural choices; manufacturers gain a quantifiable record of design verification. Without that record, transport reliability is only a claim. From a cost standpoint, the table time and samples consumed by one complete vibration assessment are usually far smaller than the cost of a batch of field failures. Solving the problem in the lab is cheaper than discovering it in a customer's warehouse, and far cheaper than recalling a product that was never properly screened. In practice, teams that skip this step often discover the cost much later, when a unit that passed every dimensional and mechanical check still fails in service because nobody asked how it would behave across thousands of kilometers of continuous, low-level motion. A vibration program also creates a shared vocabulary between design and logistics, so that a change in packaging specification can be evaluated against concrete data instead of opinion, and so that recurring damage reports can be traced back to a specific structural decision rather than a general sense that transportation is simply hard on equipment.
2. Where Vibration Comes From: Road, Rail, Sea, and Air
Each transport mode injects energy at a different frequency range and for a different duration, and that difference should drive how a test spectrum is built. Road transport is dominated by suspension response, with energy concentrated from a few hertz to a few tens of hertz and periodic pulses added by expansion joints, manhole covers, and speed bumps. Rail coupling introduces stronger longitudinal impulses and pronounced lateral sway, while wheel-rail interaction weaves dense excitation into the higher bands. Sea transport lasts the longest: engine and propeller vibration and wave-induced roll push energy into very low frequencies, but that energy persists for days or even weeks. Air freight compresses everything into a short window, yet the spectrum climbs sharply during taxi, climb, and landing, imposing real stress in minutes. Only by understanding these differences can an engineer match the right spectrum to the right route. Equipment that travels mostly by rail may need its longitudinal and lateral loading proportions set with reference to rail intermodal practice, while sea-heavy batches should extend dwell time at the low end. Multi-modal shipments often require several profiles replayed in sequence on the same machine. Splitting the route into segments and recombining them is how engineers avoid both over-testing and under-testing. Because real excitation also drifts with season, carrier, and vehicle condition, a spectrum should carry a deliberate margin, and that margin has to be justified by data rather than doubled on a hunch. Logging vibration on representative lanes is the groundwork that makes any margin defensible. Documenting the dominant mode for each lane turns a vague assumption into a concrete engineering input, and it lets a supplier propose a realistic test plan instead of copying a generic profile out of a catalogue. When several lanes feed the same distribution network, the worst credible combination, rather than the average, usually drives the design, because a single severe leg can undo the margin accumulated across many gentle ones, and it is the weakest link that ultimately determines whether a shipment arrives intact.

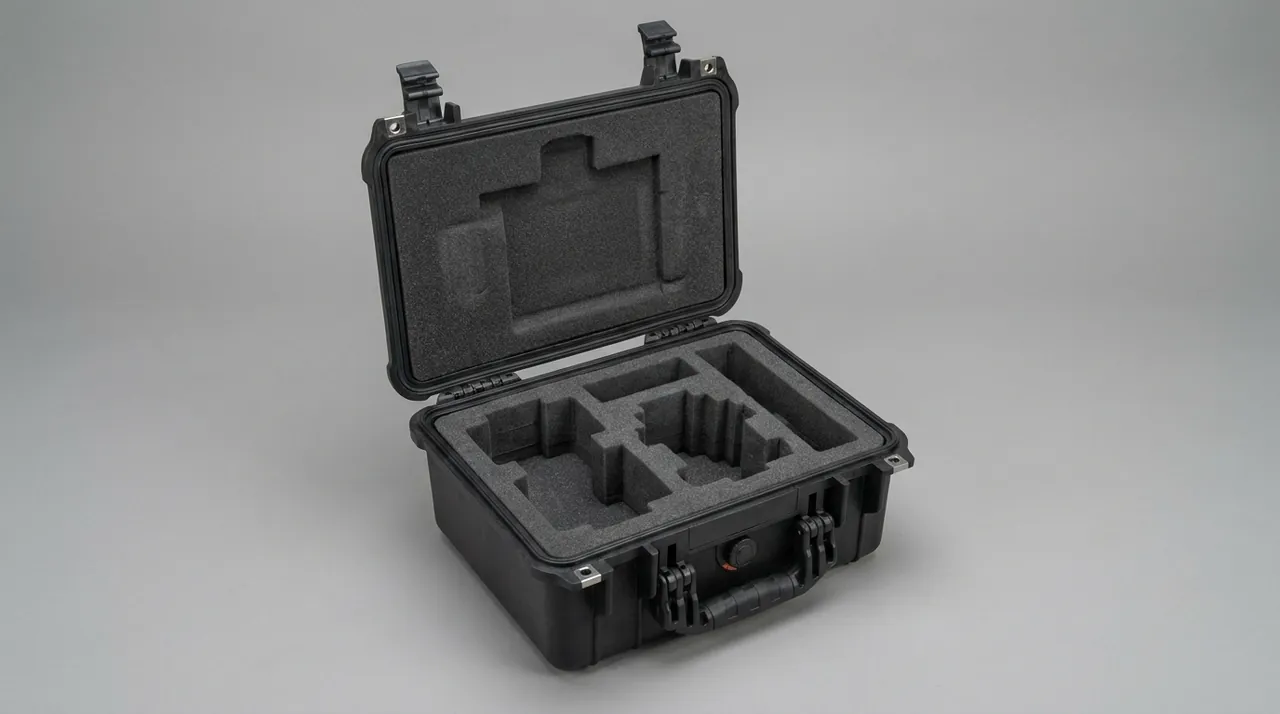

3. Sine versus Random Vibration: What Each Loading Means
Sine vibration sweeps a single frequency at a controlled rate, either logarithmically or linearly, and is ideal for pinpointing resonances, checking structural response at a specific frequency, and observing harmonic and sub-harmonic behavior. Random vibration injects energy across many frequencies at once, described by a power spectral density, and more closely resembles the broadband excitation of a real road or sea state. In practice, engineers sweep with sine to locate the sensitive bands, then run a random profile for the long-duration assessment, and add a sine dwell where a dangerous frequency needs to be magnified. The two loadings are partners rather than rivals: the sweep scouts, the random profile evaluates life, and the dwell confirms. Aligning the peak of a vibration spectrum with a sample's measured resonance exposes latent defects in a shorter run. One caution is often missed: the root-mean-square value of a random profile cannot simply be equated to a sine amplitude. The damage-equivalence relationship depends on the specific spectral shape and on material damping, and swapping one for the other without that conversion leads to over-testing or under-testing. A second subtlety is sweep rate. Run it too fast and the structure cannot respond fully, so measured peaks understate reality and narrow resonances may be skipped entirely; run it too slowly and table time is wasted. Dwell duration and repetition count deserve the same care, because ten minutes and one hour at the same frequency differ enormously in accumulated damage. Before choosing a loading method, decide whether this round is meant to find frequencies, verify life, or replay a known event. Treating the two methods as freely interchangeable is one of the most common sources of dispute between buyer and supplier, because a sample can look excellent under one loading and merely marginal under the other for reasons that have nothing to do with build quality. A written rationale for the chosen method therefore protects both parties and gives the eventual report a defensible foundation that outlasts the individual engineer who performed the work.
4. Resonance Search and Dwell: Locating Sensitive Frequencies
Every structure has natural frequencies, and when the excitation approaches one of them the response is strongly amplified. In a protective case, resonance can appear at the lid-to-body joint, on long unsupported wall panels, at a cantilevered handle, or through coupling between the lining and an internal cavity. A resonance search is usually performed with a low-level sine sweep that advances slowly from low to high frequency while accelerometers track the response at critical locations, producing a transmissibility curve. Peaks on that curve mark candidate resonances, and a dwell test then confirms whether the response at that frequency is stable or damaging. If a resonance lands inside the band where transport energy is concentrated, the structure must be shifted away by thickening a wall, adding a rib, or retuning lining stiffness. Field experience shows that a drop test verifies the limit under a single impact, whereas a resonance dwell verifies endurance under a sustained alternating load; the two constrain the same shell from different directions. Moving a resonance out of a dangerous band is often more effective than adding material, and it is usually cheaper. It is worth adding that resonances do not sit still. Temperature, payload mass, and lining condition all shift them during service: cold makes materials stiffer and typically pushes frequency up, while heat lowers it. For critical models it is therefore wise to sweep once at each temperature extreme and confirm that no resonance peak falls into a dangerous band anywhere across the operating range. This temperature sweep costs little compared with a field failure, and it converts a single-point laboratory result into an envelope that covers the entire service range. Resonance work is iterative by nature, because every structural change shifts the frequencies and may introduce a new peak somewhere else, so a sweep should follow each design revision rather than being treated as a one-time exercise. Teams that repeat the sweep after every change catch these shifts early, while those that test only once often meet the moved resonance for the first time in the field.
5. Reading the Test Spectrum: RMS Acceleration and PSD
Power spectral density describes how energy is distributed per unit of frequency bandwidth, while the overall root-mean-square acceleration expresses total energy across the whole band; together they characterize a random excitation. When reading a spectrum, first confirm the frequency range and its upper limit, then examine the rise and fall slopes across each octave, and finally check whether the total RMS matches the target condition. For container-type samples, a steep drop-off at the high end often means the fixture or table can no longer transmit energy effectively, so the measured response reads low and invites a false pass. Level selection should serve the assessment goal: a conservative spectrum screens more weak points but may reject acceptable products, while a lenient spectrum saves time but may let real defects through. A sound approach fixes a baseline profile from the transport route, then adjusts up or down according to sample value, repair cost, and historical failure data. If a product must satisfy both a military standard and a commercial distribution test, verify each spectrum and duration separately rather than forcing one parameter set onto both systems. On the record-keeping side, the control spectrum and the actual response spectra must be stored together with sensor numbers and mounting details, or later review becomes impossible. For multi-axis excitation, state plainly whether axes were loaded sequentially or simultaneously, because cross-axis coupling changes the response. If control deviation exceeds the allowed tolerance at any frequency, pause the test and inspect the fixture and sensors instead of running to completion with questionable data. Thorough documentation is not bureaucracy; it is what allows a second engineer to reproduce the run a year later and reach the same conclusion without guessing at hidden settings. A spectrum is a communication tool as much as a technical one; when it is recorded clearly it lets a customer, a test house, and a supplier agree on exactly what was demanded and exactly what was delivered, which removes much of the ambiguity that otherwise surrounds any pass or fail claim.
6. How the Shell, Ribs, and Latches Respond
How a shell behaves under vibration depends on the balance of stiffness, mass, and damping. Thin, large panels tend to drum at low-order modes, forming local shapes like a vibrating drumhead. Adding ribs raises local stiffness and pushes resonance upward, but if a rib is bonded or welded weakly it can create a fresh stress concentration at the joint. Latches and hinges are classic cantilever-and-clearance structures; vibration magnifies their relative motion, which in turn drives wear, rattle, and seal-face misalignment. Rotomolded cases have relatively uniform walls and good structural continuity, yet large flat areas still need recesses or stiffening to suppress drumming. Injection-molded cases can achieve a more precisely distributed stiffness through local thickening and rib placement, at the cost of more complex tooling. Whether a response is acceptable depends on the amplification factor at critical points and the accumulated fatigue damage, not merely on whether the shell cracked. In many programs the case shell itself is strong enough, and the problem lies at the connection interfaces, so the assessment must include hardware and lining rather than the shell alone. The origin of damping also deserves attention: the base material itself usually damps very little, and most energy is dissipated at connection interfaces, in the lining, and across assembly clearances. That means fastener preload strongly shapes the whole-case response, and when preload is low, interface slip rises and damping increases. The response then looks suppressed even as wear accelerates, so it is essential to distinguish a genuinely suppressed response from energy that is being harmlessly absorbed. A useful habit is to measure response at both a stiff node and a compliant mid-panel location, because the two often tell opposite stories, and only together do they reveal where the energy is really going. The practical lesson is that a case should be assessed as an assembly rather than as a shell with accessories attached, because the interaction among wall, rib, and hardware determines the response far more than any single component does on its own.

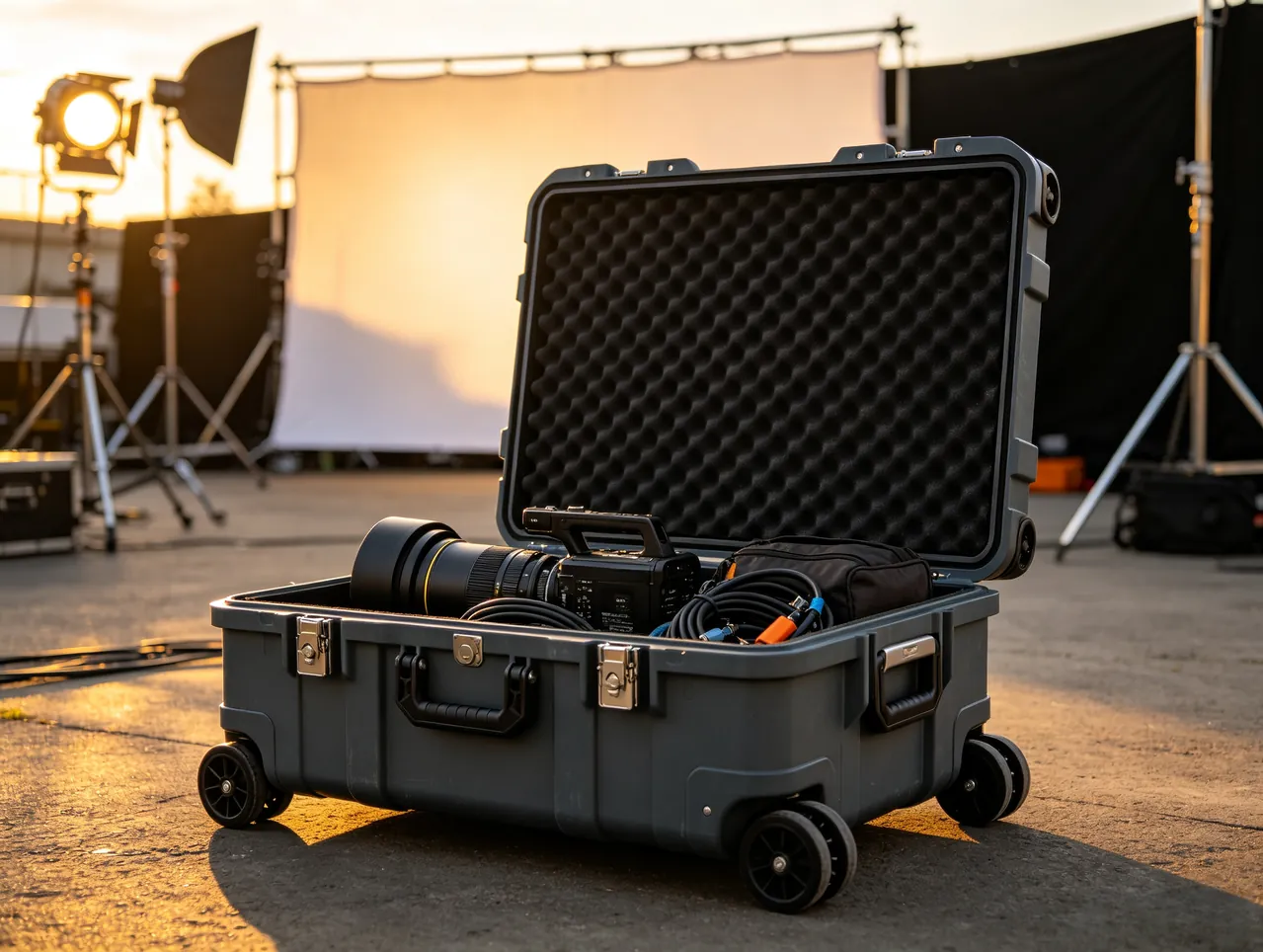

7. Isolation and Damping: How Lining Materials Absorb Energy
Lining plays two roles in vibration control: it replaces the hard contact between payload and wall with a compliant one, and it converts part of the vibration energy into heat through internal friction. Closed-cell foam has modest damping but stable recovery and good moisture resistance, making it suitable for repeated loading and unloading. Open-cell foam damps more effectively yet tends to absorb moisture and gradually lose resilience. Rubber-like materials excel in the low-frequency band, but low-temperature stiffening and aging must be considered. Lining thickness, density, and compression ratio must be matched by test: too soft and the payload rattles inside the cavity and generates secondary impacts, too hard and it barely attenuates anything. Good designs often use layered combinations, with a stiffer outer layer limiting displacement and a softer inner layer absorbing energy. If the case must also manage temperature, a foam lining can be combined with a temperature-controlled structure so that isolation and insulation do not interfere with each other. Before selecting a material, it is best to measure transmissibility on a small coupon, establish the dynamic stiffness, and then scale up to a full case. One frequently overlooked detail is how well the lining conforms to the wall. If a cavity is left between them, the foam slaps against the wall on every cycle, creating extra impact and noise and eventually abrading the inner surface. Die-cutting or thermoforming the lining to fit closely improves both isolation and durability. For housings that must breathe, the pressure-equalization valve and the lining have to be coordinated so the lining never blocks the vent path. The right lining is therefore a compromise among damping, weight, cost, and durability, and it ought to be selected with the same evidence-based discipline that is applied to the shell itself. In practice this means the lining specification should be revisited whenever the payload, the transport route, or the storage temperature changes, because a design that isolates well under one set of conditions may be largely ineffective under another.
8. Fixtures and Mounting: How Boundary Conditions Shape Results
The sensitivity of test results to the fixture is routinely underestimated. A fixture has two jobs: hold the sample securely on the table, and transmit the table's motion into the sample with as little distortion as possible. If the fixture itself lacks stiffness, it introduces its own resonances in the mid and high bands, shifting the measured response away from reality. If the mounting points differ from the way the case is actually supported in transit, the load path changes as well. When designing a fixture, the support points should correspond to the real pallet or vehicle-floor contact positions, and the fixture's first resonance should sit well above the upper limit of the assessed band. Bolt count, preload, and distribution matter too: local over-tightening adds stress to the shell, while under-tightening introduces gaps and rattling. For case profiles with stacking corners or feet, the fixture must leave room so that corner hardware and fixture do not crush each other. Recording fixture modes and mounting torque is the precondition for a repeatable test. When the sample is large or its center of mass sits high, a multi-tier frame fixture is preferable, with accelerometers placed at critical nodes to monitor the fixture's own response. If the fixture amplifies markedly in the mid band, treat that as a fixture defect rather than a sample property, correct the fixture first, and then evaluate the sample. For case profiles that need multi-axis assessment, the fixture should permit rapid reorientation without changing the mounting attitude, otherwise data from different axes cannot be compared. Check the fixture's fastener state before and after every run, so that long-duration vibration does not quietly loosen a screw and alter the boundary condition. A fixture that is easy to build but difficult to measure against is a poor bargain, because the data it produces cannot support a confident decision. A documented fixture drawing, with certified dimensions and a record of its modal behavior, is among the most useful assets a test laboratory can maintain, and it saves considerable time whenever a new sample of the same family arrives for evaluation.
9. Test Equipment and Tables: Electrodynamic versus Hydraulic
Vibration systems split broadly into electrodynamic and hydraulic types. Electrodynamic shakers cover a wide frequency range and control waveforms precisely, supporting random, sine sweep, and shock modes, which makes them the most common choice for container assessment. Hydraulic shakers offer large displacement and force capacity, suiting heavy, low-frequency samples, but their waveform fidelity in the high bands is inferior to electrodynamic units. When selecting equipment, verify three things: whether maximum force covers sample mass times target acceleration, whether maximum displacement satisfies low-frequency, large-stroke conditions, and whether table size and fixture weight stay within limits. Table uniformity matters as well, since edge and center responses can differ, so measurement points should sit close to the actual load path. For long dwell runs, pay attention to cooling and continuous-duty capability so that accumulated damage is not interrupted by a mid-test shutdown. Equipment behavior drifts with use, so periodically comparing against a standard sample or a reference part such as a handle load test artifact reveals gain or frequency-response anomalies early. Grounding and isolation of the table also affect data quality: ground-borne vibration entering through the frame can contaminate low-frequency, low-level runs if background noise is high. For extended tests, configure an automatic abort when the response exceeds a limit, which protects the sample and records the triggering moment for later review. The natural frequency of the equipment and that of the fixture should be kept apart, so that the two do not resonate together and fabricate a phantom amplification peak. A modest investment in calibration and a clean data log usually pays back faster than upgrading to a larger machine, because a trustworthy measurement outperforms raw capability every time. Choosing a machine is therefore a matter of matching capability to the specific demand rather than buying the largest available unit, since a right-sized system used carefully will almost always yield more useful data than an oversized one run carelessly, and it will cost less to operate and be easier to calibrate on a regular basis.
10. Sample Preparation: Temperature, Mass, and Loading State
Sample condition determines whether a test conclusion is trustworthy at all. Container assessments normally require loading to a realistic mass, and the mass distribution should imitate the real payload rather than substituting a single steel block that shifts the center of gravity. Temperature and humidity preconditioning cannot be ignored: cold embrittles plastics and stiffens foam, while heat softens materials and reduces preload, so a product intended for extreme climates should be conditioned at the corresponding temperature before it goes on the table. The loading method must be fixed as well, because an empty case and a fully loaded case respond very differently and their results cannot be interchanged. For cases with lining, record the compression state and installation method, since repeated assembly and disassembly progressively reduces foam resilience. If the product also serves a cold-chain role, adopt a temperature control verification approach and overlay temperature cycling on the same set of samples so the test reflects the real route more closely. Sample count and grouping must also be planned in advance: samples reserved for destructive examination cannot be reused, while samples reserved for functional retest must be assembled and disassembled in a consistent way. If the test requires mid-run unpacking, define a uniform inspection interval and record sheet so that different operators do not introduce subjective differences. For case profiles with a directional requirement, mark the up direction during loading and fix the ballast position so the center-of-gravity shift stays consistent between batches, which is what makes data from different runs comparable. If a sample must be reused, assess its performance decay after each run rather than treating an already fatigued unit as new. Recording every preparation choice turns a sample from an anonymous object into a described specimen, and that description is what makes the eventual result defensible. The guiding principle is simple: the more closely a sample resembles the real shipped article in mass, distribution, and condition, the more its result can be trusted to predict field behavior rather than merely describe a laboratory artifact.

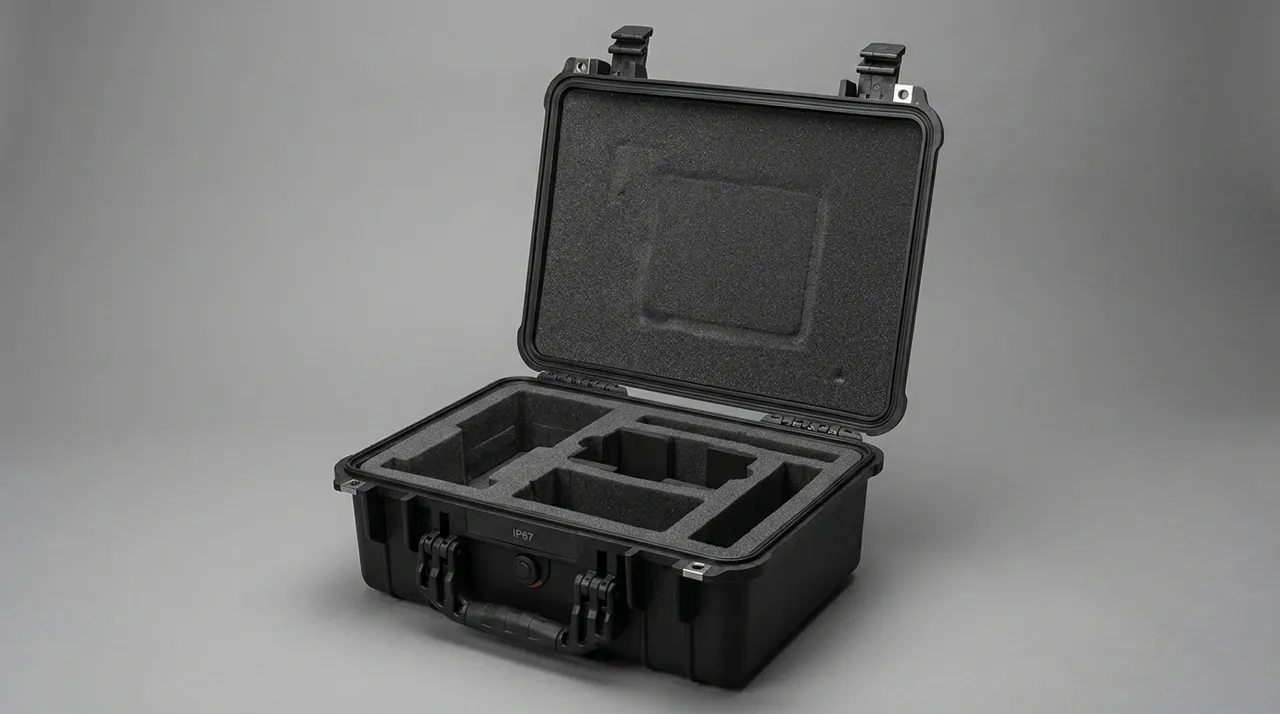

11. Failure Modes: Cracks, Loosening, Seal Loss, and Wear
After a vibration test ends, the reading has to cover appearance, function, and sealing. Visually, inspect the shell for cracks, whitening, and deformation, and the welds and rib roots for fine lines. Functionally, confirm that latches open and close properly, hinges do not seize, and handles stay tight. For sealing, re-check airtightness or watertightness, because vibration often produces microscopic misalignment at the seal face. Common failure modes include gradually loosened fasteners, collapsed foam that no longer supports the payload, seal strips permanently deformed after repeated compression, and cables or lines that rub through against the wall. Reading the results means asking not only whether something broke, but where it broke, why, and whether it can be reproduced. If seal damage is suspected, check compression on the seal strip and confirm with an immersion test whether protection has truly been lost. For samples used in marine environments, add a salt spray exposure to observe how corrosion and fatigue interact. Another key step is establishing a baseline: before the test, record latch opening torque, seal compression, and lining thickness and rebound, then re-measure each after the test and compare against the baseline, because quantified change is far more reliable than an impression that nothing looks broken. For samples that rattle, partial disassembly localizes the friction source and separates structural loosening from lining misalignment. If the same batch fails repeatedly at the same location, treat it as a design problem rather than a coincidence and return to the structural concept. Finally, write the reading into a checklist that maps each conclusion to a design parameter and a corrective direction, so the follow-up retest has a definite target. A structured reading, performed the same way every time, is what turns a single test into a dependable source of design feedback rather than an isolated verdict. Above all, the reading should distinguish a defect that would genuinely compromise protection from a cosmetic change that has no practical effect on the payload, so that corrective effort and cost are spent only where they actually matter.
12. Standards and Compliance: ISTA, ASTM, GB/T, and MIL-STD
Different standards systems emphasize different things. Systems built around the distribution environment split a real shipment into reproducible test sequences whose parameters reflect logistics statistics. Systems built around environmental engineering emphasize tailoring a product's life-cycle environment and allow severity and duration to be adjusted to the mission context. Before choosing a standard, confirm the end purpose: internal design verification, supplier admission, or a third-party report for external use. Where hazardous-goods packaging admission is involved, UN certification requirements must be layered on top. Where rail intermodal transport is planned, the extra packaging provisions associated with rail certification need to be reviewed. Where a product carries a protection rating, verification methods tied to that IP rating have to be sequenced with the vibration steps so the two do not interfere. The relationship among standards is not a simple hierarchy of strictness; it is a difference of applicable scope, and any mixing must state the basis and the tailoring rationale. The version year of a standard is another common oversight: the same number can change its spectrum, severity, and acceptance criteria between editions, so the edition must be cited to prevent disputes. A third-party report also depends on the issuing laboratory's accredited scope and on sample traceability, or it may be rejected at acceptance. If a customer specifies a particular test order, such as vibration before immersion, document how the order affects results and keep the supporting evidence rather than reshuffling it. Whatever standard is cited, the plan's first page should state the applicable edition, the tailoring basis, and the acceptance criteria, so that any later reviewer can reconstruct the entire chain of decisions. Clarity here protects both sides: the buyer understands exactly what was verified, and the supplier understands what remains the buyer's responsibility to confirm. Ultimately the standard is a tool for structuring evidence rather than an end in itself, and the value of any program comes from how clearly it documents what was tested, under what conditions, and with what result.
13. From Report to Design Loop: Closing the Improvement Cycle
A useful vibration report lets a reader judge the reliability of the conclusion without digging through raw waveforms. It should state sample condition, fixture modes, sensor locations, the control spectrum and actual response spectra, key frequencies and amplification factors, and the observations recorded at each dwell or segment. Beyond the data, the more important step is translating anomalies into design actions: if a band amplifies strongly, revisit rib layout or wall thickness distribution; if fasteners loosen, switch to a locking design or add preload redundancy; if the lining collapses, adjust material density and compression ratio. After the change, run another verification round to form a closed loop of measure, analyze, modify, and retest. For batch production, transport marking can carry handling cautions onto the packaging so that the logistics step becomes part of the design as well. A follow-up retest need not repeat every item of the first program, but it should cover the bands and locations that previously failed and keep the same clamping and loading conditions so that before-and-after data remain comparable. It should be noted that this article deals only with the container structure of a protective case, including the shell, lining, hardware, sealing, and vibration isolation, and does not address the nature or purpose of anything packed inside. Where a container is intended for cross-border movement or export, its compliance status must be determined by the responsible party against the laws in force in each jurisdiction along the route, applicable export-control lists, and carrier requirements. The methods and findings described here are not a compliance determination and must not be treated as one. Over several product generations, this loop is what separates a manufacturer that repeats its old mistakes from one that steadily raises the reliability of every case it ships. The discipline of closing the loop, rather than the sophistication of any single instrument, is what converts a one-off test into a lasting capability within the organization and gives every future design a measurable head start.
Frequently Asked Questions
Q: Can a vibration test and a drop test substitute for each other? A: No. A drop test evaluates tolerance to a single high-amplitude impact, while a vibration test evaluates long-duration, low-amplitude fatigue accumulation. The damage mechanisms, loading waveforms, and evaluation metrics all differ. A structure may pass a severe drop yet develop loosened fasteners or fatigued welds after extended random vibration, and conversely a case that performs well against vibration can still crack at a corner during a drop. The right approach treats the two as complementary screening tools, with severity and sequence chosen from product value, transport route, and failure history rather than using one to cover the other's job. When time or budget is limited, state the trade-off explicitly and record the uncovered risk in the report. This keeps the test program honest and prevents a single passing result from being mistaken for complete transport confidence. Treating one bench result as proof of field readiness is among the most common and most expensive misreadings in packaging validation, and it is precisely the error a paired program is designed to prevent.
Q: Should random vibration or sine vibration be scheduled first? A: The usual order is a sine sweep first, then a random run. A sine sweep locates natural frequencies and response peaks quickly at low level, and its output informs how the random profile should be shaped. Random vibration then applies broadband energy that mimics a real road or sea state and accounts for long-duration life accumulation. Reversing the order leaves the random profile untargeted, which can over-test the sample or miss the genuinely dangerous band. If solid transport data already exists, an engineer may run the measured profile directly and then add a sine dwell to confirm stability at the critical frequency. Scheduling also depends on machine availability and sample count, so each round should be designed to answer a specific question. Documenting why the order was chosen makes the program reproducible and defensible during later review. In short, the sequence itself is part of the engineering design rather than an administrative afterthought, and it should be justified in writing before the first sample is mounted.
Q: Must a resonance frequency always be avoided entirely? A: Not necessarily, but it must be addressed when it falls inside a high-energy band. If a resonance peak sits where transport excitation is concentrated, the response is amplified continuously and long-term exposure invites fatigue and loosening, so stiffness increases, mass redistribution, or lining retuning are used to move the frequency away. If the peak lies in a high band where energy has already decayed, or if that frequency is rarely encountered in transit, it can be accepted after the amplification factor is evaluated and a dwell test confirms stability. Acceptability depends on amplification, duration, and how sensitive the payload is, not on a simplistic pursuit of zero resonance. Quantifying the risk and then making a deliberate trade-off is far more economical than reflexively adding material to every wall, and it keeps weight and cost under control. What matters is that the decision is documented, quantitative, and revisitable whenever the transport route, the payload, or the supplier changes, so that an old acceptance does not silently outlive the conditions it was based on.
Q: How long should a vibration test run before it counts as sufficient? A: Duration follows the assessment goal and the chosen spectrum; there is no universal fixed value. If the objective is defect screening, a shorter intensified profile may suffice. If the objective is to simulate one real shipment, the table time should be derived from the route's distance and duration, using an acceleration factor to shorten it when necessary. Acceleration is not unlimited: an excessive level activates failure modes that would never appear in real transport, so the result becomes unrealistic. A sound method fixes a damage-equivalence principle first, then sets duration and level accordingly, and writes the conversion basis into the report. For batch production, a full-duration run on selected samples combined with a shorter intensified screen on the rest balances cost against coverage, giving both depth and breadth from a limited test budget. An arbitrary duration chosen by habit, rather than derived from a stated equivalence rule, is the weakest possible basis for any claim of transport reliability, and it will not survive scrutiny from a customer or a regulator.
Q: How much does lining material change the vibration outcome? A: Often more than expected. Lining acts as both an isolation layer and a constraint: too soft and the payload rattles inside the cavity and generates secondary impacts that worsen local loading, too stiff and it barely attenuates energy, effectively passing vibration straight into the payload. Foam density, thickness, compression ratio, and rebound jointly determine isolation performance; rubber-like materials are strong in the low band but need attention to low-temperature stiffening and aging. Lining also collapses gradually with use, weakening support and widening clearance, so its compression state should be recorded before testing. Measuring transmissibility on a coupon first and then scaling up to the full case avoids blindly stacking material that adds weight and cost without improving isolation. In short, lining is an engineered component, not padding, and it deserves the same design discipline as the shell. When lining is treated as an afterthought, no amount of shell strength can compensate for the secondary impacts it fails to prevent inside the cavity.
Q: Why do some products pass in the lab but fail in the field? A: The most common cause is a mismatch between test boundary conditions and real logistics. A lab fixture is often much stiffer than a pallet, and its mounting points may differ from the supports used in transit, so the measured response deviates from reality. Substituting a single steel block for the real payload also distorts center of gravity and moment of inertia. A second cause is incomplete route coverage, such as running only a road profile while ignoring long-duration, low-frequency sea transport, or assessing a single leg while overlooking the accumulation across multiple transfers. A third is insufficient reading, checking only whether the shell cracked while skipping sealing and function retests. Closing the gap requires making the fixture, loading, and temperature as realistic as possible and folding logistics data into the spectrum tailoring rather than leaving it to assumption. Any one of these gaps, left unaddressed, quietly converts an apparently successful test into a misleading one that provides false assurance to everyone downstream.
Q: Which data in a vibration report deserves the closest attention? A: Start with whether the control spectrum and response spectra agree. If the response drops abruptly in some band, the fixture or table has likely lost transmission capability, and the conclusion should be discounted. Then examine key frequencies and amplification factors, which directly reflect how sensitive the structure is to excitation. Next, review sample condition records, including preconditioning, loading method, and disassembly count, because these shape comparability between runs. Finally, read the anomaly descriptions and photographs to confirm that the failure locations and forms match the data. A complete report should also state the test basis, the tailoring rationale, and any uncovered risk. Without these elements, attractive numbers alone cannot support a design decision, and a reviewer has no way to judge whether the test answered the right question. A figure that cannot be traced back to a documented sample condition, fixture setup, and loading state should be treated as a hint rather than as hard evidence, however impressive it may look at first glance.
Q: Are vibration tests mandatory for protective cases in export shipping? A: Whether a mandatory requirement exists depends on the packaging category, transport mode, and destination regulations, so it cannot be generalized. For ordinary industrial goods, distribution testing is usually a contractual matter agreed between buyer and seller, whereas packaging that falls under hazardous-goods classification may be pulled into a mandatory admission system. Even without a legal mandate, an importer or carrier may impose its own test and documentation requirements. Before exporting, therefore, clarify the product classification and the applicable regulations, then determine which tests and reports are needed. This article discusses only the test methods for container structures; whether a specific regulation's mandatory requirements are met must be verified by the responsible party against the current legal text and official interpretation, and nothing here should serve as a compliance conclusion. When in doubt, consult the responsible compliance function and the current regulatory text rather than relying on a secondary article or an old sample report.
Q: How should a case be improved after a vibration test failure? A: Improvements should target the failure mechanism rather than adding thickness indiscriminately. For local drumming, adjust rib layout or change wall curvature first. For loosened fasteners, switch to a locking design or raise preload consistency. For collapsed lining, tune material density and compression ratio. For seal-face misalignment, improve latch stiffness and assembly tolerances. After the change, verify on a small sample that key frequencies and amplification factors have genuinely improved, then return to a full-case retest. For batch products, also assess the effect of the change on tooling, cost, and lead time so that solving one weak point does not create another. Recording the cause and effect of every improvement builds a company's own design guidelines over time, and those guidelines become more valuable than any single test result as the product family grows. The real value of a failure lies entirely in what the organization learns from it and writes into its next design guideline.
