Rolling Mill & Roll Cases: Roll & Chock Component Protection

Rolls are among the most expensive and most delicate spares on a rolling line. A roll that has been rough ground, finish ground and possibly chrome plated or laser textured carries the surface roughness and crown that set strip surface quality and shape. Yet a roll weighing several tonnes will take permanent bow from its own weight in transit if the support points are badly chosen, and its journal or barrel will take indentation from any hard contact. The conclusion up front: a rolling mill and roll case is fundamentally a heavy-load support engineering problem. Rolls need cradles designed on the principle of multiple supports, support points close to the journals, and controlled contact stress. Chocks and oil-film bearing components need compartmented location and individual wrapping to protect their mating faces. The shell should be rated at least IP65, and IP67 is recommended for ocean-freight export or long-term open-yard storage.

The second problem is the damage you cannot see. Rolls are large and heavy, and many plants assume that something so massive cannot be damaged by handling. Attention goes entirely to lifting safety, and contact stress, residual bow and mating face corrosion are ignored. The reality is the opposite. Heavy parts do not avoid damage, they hide it better. A faint local indentation on the barrel becomes a periodic bright mark on the strip once the roll is in the finishing stand. Light corrosion on a journal seat shifts the clearance and temperature rise of the oil-film bearing after assembly. Under hot, high-speed, high-load rolling conditions these problems are amplified significantly.

This article works backwards from failure modes to packaging design, and gives support schemes, insert structures, corrosion strategy, lifting and securing points and an inspection checklist for equipment engineering, spare-part management, roll shop and procurement teams in ferrous and non-ferrous rolling operations.

Table of Contents

• 1. Why Rolls and Chocks Need Dedicated Cases
• 2. Where Rolls Fail: Barrel Surface, Journals and Roll Necks
• 3. Chocks and Oil-Film Bearings: Liners, Seals and Mating Faces
• 4. Heavy Support and Bow Prevention: Support Count, Spacing and Contact Stress
• 5. Impact Prevention: Barrel Hardness, Coatings and Handling Contact Control
• 6. Case Shell Selection: IP Rating, Material and Load Capacity
• 7. Insert Design: V-Block Cradles, Compartments and Contact Surface Control
• 8. Moisture, Rust and Oil-Film Protection: Desiccants, VCI and Cleanliness
• 9. Vibration and Shock: ISTA, ASTM D4169 and GB/T 4857
• 10. Heavy Lifting and Transport Securing: Rigging, Saddles and Lashing
• 11. Incoming Inspection, Traceability and AQL Sampling
• 12. Custom Workflow and OEM/ODM Delivery
• 13. Selection Decision Tables and Common Misconceptions
• Frequently Asked Questions
• Conclusion & Related Reading

1. Why Rolls and Chocks Need Dedicated Cases

Roll condition is tightly coupled to the continuity of rolling production. Roll changes are routine, but if the roll being fitted already carries transport damage, the outcome is rarely as simple as changing it again. In mild cases the strip shows periodic surface defects and must be downgraded or reclassified. In severe cases shape control is lost, the mill vibrates, and neighbouring stands suffer roll and bearing damage. Those losses propagate along the entire line and dwarf the value of a spare roll.

From a protection engineering standpoint, rolls and chocks share three characteristics.

1. High mass, high length-to-diameter ratio and limited bending stiffness. Roll diameter is not large relative to length, particularly for work rolls and intermediate rolls. Self-weight plus single-point support produces significant bending moment. Heavy parts are not immune to deformation because they are heavy. On the contrary, self-weight is the dominant load source.
2. Surface condition is sensitive and irreversible. The barrel is a functional surface. Once the ground crown, roughness, texture or coating is crushed or scored, the only remedy is re-grinding, and every grind reduces diameter and shortens roll life. The journal is the same story, with fits toleranced in microns.
3. Many mating parts and a long accuracy chain. Chocks, oil-film bearings, liners, seals and end covers form an accuracy chain. Damage to any one mating face changes the clearance and load distribution of the whole assembly.

The value of a dedicated case is therefore that it keeps mechanical loads, meaning self-weight, shock and vibration, plus humidity loads and particulate loads, inside the component's allowable range during transport and storage. This follows the sensitivity-tiered approach in the instrument case selection guide, with the difference that roll-class parts are sensitive to self-weight deformation and surface condition rather than to shock in the ordinary sense.

One misconception needs correcting: putting a roll into a sturdy steel box is not adequate protection. Shell strength solves the problem of the outer box being crushed. Whether the roll bows or the barrel is crushed depends on the support point positions, the contact area and the stiffness of the cradle material. The shell is the enclosure. The cradle is the protection.

2. Where Rolls Fail: Barrel Surface, Journals and Roll Necks

Roll types differ substantially, covering work rolls, intermediate rolls, backup rolls, section rolls and non-ferrous rolling rolls, but the distribution of transport damage follows consistent patterns.

The critical rule: rolls must be supported at multiple points, denser near the journals, with fully soft contact surfaces. The most reliable field method is a V-block or arc cradle that lets the barrel sit over a generous contact arc rather than on two lines or a few points. High-density EVA, polyurethane, or a plywood and composite core with a soft contact layer are the usual cradle materials.

On support spacing, industry practice is to place the end supports as close to the journals as possible, while still clearing the journal itself and the bearing seat, landing on the end region of the barrel. Intermediate supports are added according to length-to-diameter ratio, with spacing generally not exceeding 15 to 20 times the barrel diameter. For work rolls with a very high length-to-diameter ratio, four to six support points are recommended.

Note: where the support lands matters more than how many supports there are. Putting a support on the journal crushes the bearing fit. Crowding supports into the barrel centre stacks up local contact stress. The correct region is the barrel close to each end but with a margin from the end face.

3. Chocks and Oil-Film Bearings: Liners, Seals and Mating Faces

Chocks and oil-film bearings are the heart of mill accuracy, and they are also the parts most likely to be wedged into a corner of a case without thought.

• Chock bodies. Heavy castings or forgings with good inherent stiffness, but the liner faces that fit the housing window and the bores that fit the roll journal are extremely sensitive in flatness. Once a chock is knocked or crushed in transit, the roll axis tilts after assembly and shape control suffers directly. Priorities are a separate compartment, a lint-free separator between mating faces, and compatible rust protection on those faces.
• Oil-film bearings and sleeves. High-precision sliding bearings with clearances measured in microns, where internal surface quality determines oil film formation and load capacity. These must be packed individually and must never share a compartment with other metal parts. Wrap them fully in lint-free cloth or PE film before placing them in a profile-cut compartment.
• Liners and bearing shells (babbitt or bronze). Soft material with a low melting point, easily scored. Any hard contact leaves an indentation. They need their own compartments and must never be packed with bolts, tools or metal spacer blocks.
• Seals and end covers. Rubber and FKM, sensitive to oil, ozone, heat and strong light. Pack in individual sealed bags, store the case away from light and heat, and track shelf life. Material compatibility boundaries are collected in seal material and case compatibility.
• Fasteners and small parts. Bolts, pins, dowels and shims are numerous and easily lost. Pack them by size in individual sealed bags with the quantity marked, or fix them in a multi-compartment small-parts tray.

On storage and ageing control for elastomer seals, there is a detail that is easily overlooked. Seals sit in a corner of the roll shop in their case for six months, ultraviolet light and day-night temperature swings age the rubber early, and leaks appear shortly after installation. A light-blocking case, desiccant in the insert and a discipline of moving parts into the warehouse on arrival are far cheaper than replacing seals later.

Where parts must be picked frequently by size and batches are mixed, the removable divider system allows the layout to change with the batch while retaining the required location accuracy.

4. Heavy Support and Bow Prevention: Support Count, Spacing and Contact Stress

The packaging challenge for roll-class parts is entirely about self-weight. A roll that is 2 m long and weighs over 500 kg, simply supported at both ends with an unsupported middle, can develop dynamic deflection several times its allowable value under transport vibration. Four engineering principles apply.

1. Determine support count and position from the bending moment distribution. End supports sit close to the barrel ends, clearing the journal. Intermediate supports are added according to length-to-diameter ratio. Spacing should generally not exceed 15 to 20 times the barrel diameter, and four to six supports are recommended above a 15:1 ratio.
2. Contact stress must be controlled. The contact stress between cradle and barrel depends on the contact arc length, contact width and material hardness. A hard cradle with a small contact patch is the most common fatal error in roll packaging. It concentrates impact into a tiny area and leaves an indentation on the barrel.
3. All contact surfaces must be soft and non-shedding. Line every contact point against barrel and journal with EVA, polyurethane, felt or lint-free cloth. Metal-to-metal contact is never acceptable, and degraded foam must never be used.
4. The journal must never be a load point. The journal is the bearing fit with micron tolerances. The cradle must clear the journal region and route the load into the barrel.

Cradle materials and structures are compared below.

For the mechanical curves, compression set and behaviour under humidity-temperature cycling of these materials, the case foam material comparison provides a fuller dataset, while the cushion liner design guide sets out the structured method behind multi-point support and energy dissipation paths. Both can go directly into a selection review.

Rule of thumb: for roll-class parts, indentation depth at the support points after drop and vibration testing should stay within 0.02 mm, or be confirmed by optical inspection as showing no visible indentation. The change in barrel straightness after testing should not exceed half the drawing tolerance.

5. Impact Prevention: Barrel Hardness, Coatings and Handling Contact Control

Roll barrels are hard, often above HS 90 for work rolls and higher still in some cases. That does not mean they tolerate impact. On the contrary, high hardness implies comparatively greater brittleness, so point impact is more likely to produce indentation, microcracking or coating spalling, and barrel damage is irreversible.

Impact control operates at three stages.

First, contact control inside the case.

• Every surface touching the barrel must be soft, flat and free of hard spots.
• Never allow fixings with metal rivets, clips or wood screws to touch the barrel directly.
• Never lash the barrel directly with steel wire, steel banding or hard zip ties. Straps must have soft padding and must avoid the working zone of the barrel.
• Never stack barrels directly against each other. When several rolls share a case, use layers with a rigid divider plus a soft contact layer.

Second, contact control during lifting.

• Use dedicated slings (nylon webbing slings or soft slings) or dedicated lifting gear. Never sling the barrel or journal with steel wire rope.
• Choose lifting points on the barrel outside the journal region, or use dedicated lifting fixtures, so the sling does not squeeze the journal.
• Prevent the roll from striking the case, racking or equipment during lifting. Use tag lines to control swing during lift and landing.
• Confirm the cradle is in position and correctly aligned before setting the roll down. Never land the roll first and then try to insert the cradle, which scores the barrel.

Third, contact control during loading and transfer.

• Forklift tines must never touch the barrel. Use a pallet or dedicated fixture to carry the load.
• Never roll a roll along the floor unless a dedicated roller cradle is used and the area is designated for it.
• For short transfers between the roll shop and the roll store, use a dedicated roll rack trolley or a heavy-duty case with castors, reducing the number of lifts and the associated contact risk.

Work note: sling protection sleeves are a low-cost, high-return accessory. Fitting soft sleeves where the sling meets the barrel prevents grit and metal particles carried on the sling from being pressed into the barrel surface under load.

6. Case Shell Selection: IP Rating, Material and Load Capacity

The shell underpins everything else. For heavy roll-class components, selection must lock down protection rating, material, load-bearing structure, hardware configuration and lifting interfaces, not just internal dimensions.

Ingress protection follows IEC 60529, the international standard for degrees of protection provided by enclosures, and its Chinese equivalent GB/T 4208. The commonly used ratings are shown below.

Note: an IP rating describes the shell's protection against solids and water. It does not guarantee the contents are safe. IP67 keeps water out but does not stop an impact from reaching the roll after a drop. Impact resistance comes from the cradle and structural design, and should be verified as a combined sealing and shock structure where relevant.

Given roll weights, the case structure is usually not a simple container but a combined case and load-bearing base frame.

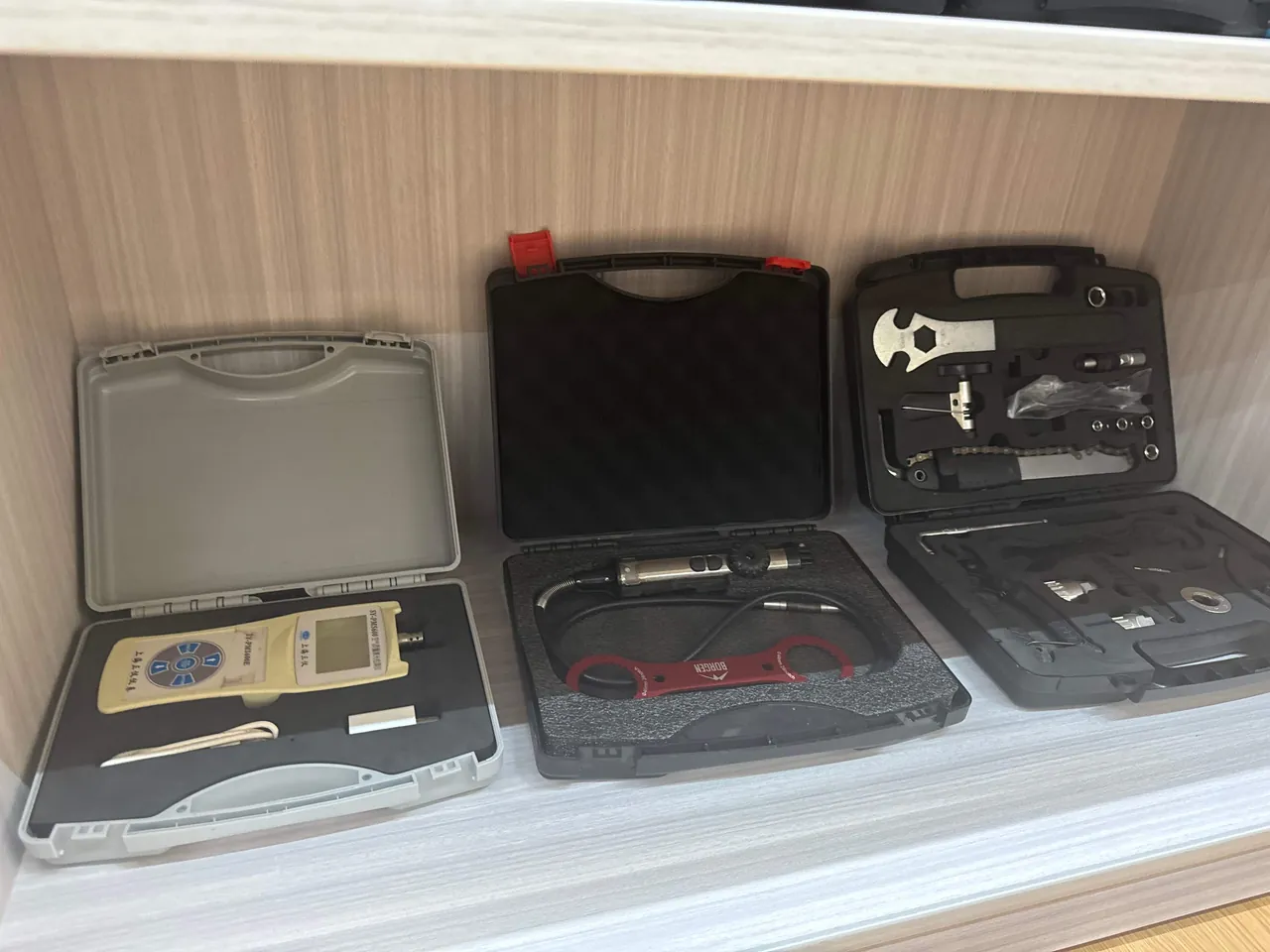

1. Injection-moulded cases. Suited to small and medium rolls, non-ferrous rolling rolls and precision accessories. Good sealing and low weight, but load capacity is limited by structure and size.
2. Panel with aluminium frame. Flexible dimensions and available extra-long, suited to intermediate rolls and long rolls. Must be used with a load-bearing base frame and reinforcing ribs.
3. Rotomoulded LLDPE cases. Best impact resistance, large sizes available, and a metal internal skeleton can be added. Suited to heavy rolls, with the trade-off of weight and volumetric cost.
4. Steel load-bearing base frame with protective cover. The usual solution for very large backup rolls. The frame carries V-saddles, lifting points and forklift pockets, while the cover provides sealing and dust and water protection. Sealing depends on the gasket between cover and frame, so overlap length and compression force need particular attention in design.

For flame behaviour, if the case is stored in an area with fire-risk requirements, require a UL94 vertical burn rating such as UL94 V-0 and obtain the material certificate. This is not a claim that the case is explosion-proof or fireproof; it only reduces the material's own flammability risk.

Structure and hardware are the weak links in service life. Selection and fatigue testing guidance for hinges, latches and gaskets is in toolbox hinge, latch and seal. For heavy cases, JUNZHJIA uses metal corner guards, reinforcing ribs and replaceable gaskets, fatigue-tests hinges and latches against open-close cycles, and can supply material and test documentation for incoming acceptance.

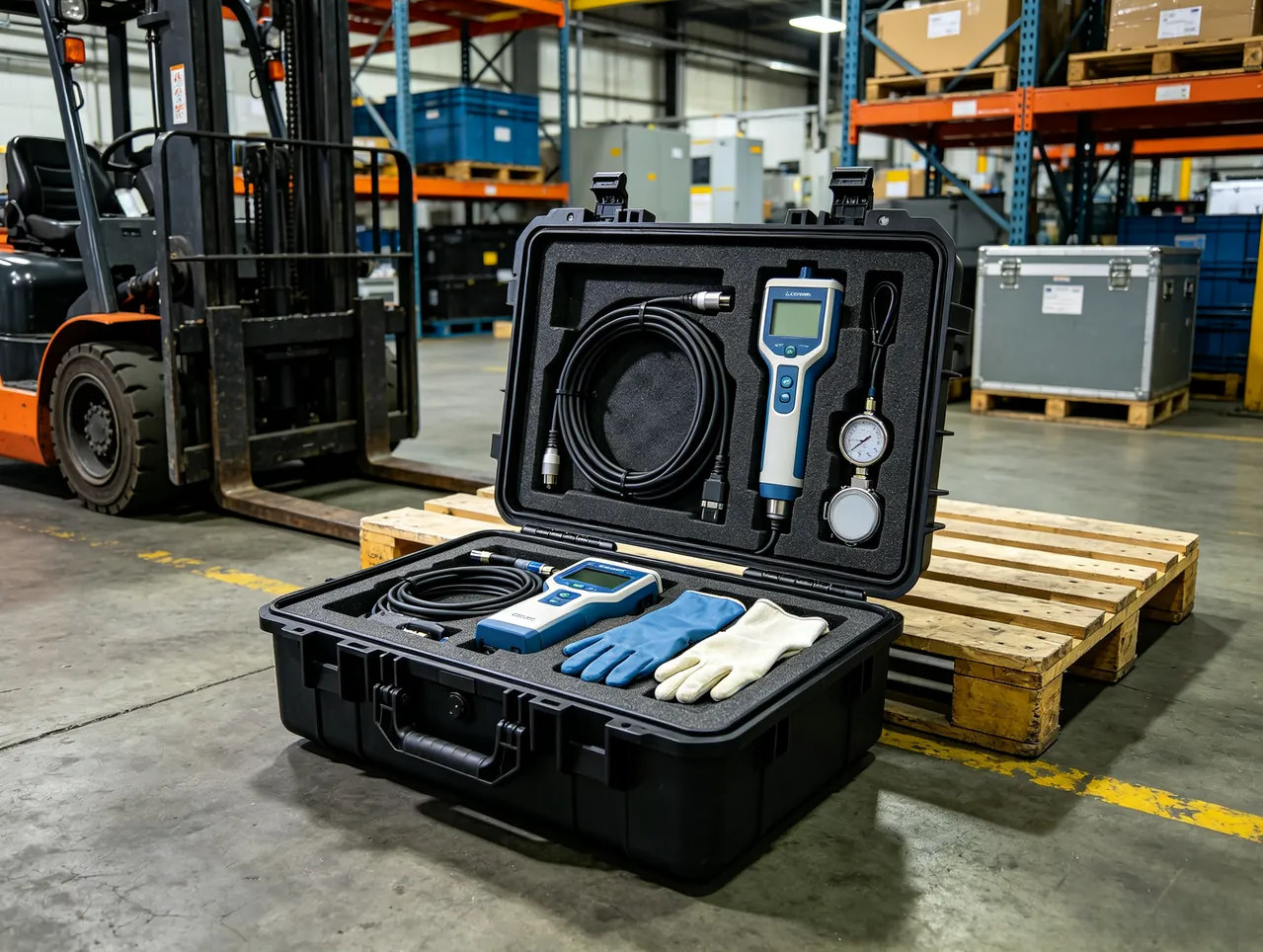

7. Insert Design: V-Block Cradles, Compartments and Contact Surface Control

The insert is the last deceleration zone in the protection system and carries most of the value of a heavy-duty case. The workflow for roll and chock cases is as follows.

1. Build the component list. Record rolls and accessories, weight, envelope dimensions, centre of gravity, sensitive faces (barrel working zone, journal, bearing mating face, keyway) and permitted contact areas.
2. Calculate the support scheme. Determine support count and position from the bending moment distribution, check contact stress, and select cradle material and contact width.
3. Fix the shipping attitude. Rolls lie horizontally on multiple supports, never cantilevered vertically for long periods. Chocks should be loaded so their mating faces carry load rather than their edges.
4. Divide the insert into compartments. One part per compartment, heavy parts never on top of light ones. Chocks and oil-film bearings must have their own compartments and must never share one with a roll.
5. Design location and restraint features. Use V-grooves, arc cradles, steps, bosses, clamping bars and straps to restrain the part in all three axes, so that it does not roll, shift or lift.
6. Control contact surfaces. Line every contact point against barrel, journal and mating face with EVA, polyurethane, felt or lint-free cloth. Separate stainless from carbon steel to avoid galvanic corrosion.
7. Leave ergonomic allowance. Add handle slots or tipping chamfers to heavy parts so nobody levers them out with a crowbar.

The V-block cradle is the classic and most efficient roll support form. It stabilizes the roll centre of gravity inside the groove for a self-centring effect and lowers contact stress by increasing the contact arc length. Design points include the following.

• The V angle is typically 60 to 120 degrees. A smaller angle gives stronger self-centring but greater radial restraint; a larger angle gives a longer contact arc but weaker centring.
• The groove mouth and root must have radiused transitions, so a sharp corner cannot form a line contact on the barrel.
• The cradle inner surface needs a soft facing of EVA or polyurethane, with thickness set by weight and impact level, typically not less than 5 mm.
• The cradle must be long enough. A very short cradle creates a local high-stress zone, and contact length should typically be at least 0.5 times the barrel diameter.

For chock-class components the design rule is different: mating faces, meaning the liner faces that fit the housing window and the bores that fit the roll journal, must be cleared so that non-mating surfaces carry the support load. This requires the cradle drawing to state explicitly which surfaces may take load and which must never take load.

8. Moisture, Rust and Oil-Film Protection: Desiccants, VCI and Cleanliness

Corrosion of rolls and chocks is particularly problematic at coastal mills, during monsoon transhipment and on ocean-freight exports. Humidity control has two main threads: reduce the initial moisture content inside the case, and block external moisture from entering.

Specific measures:

• Desiccant selection and quantity. Montmorillonite, silica gel and molecular sieve desiccants are common. Size the quantity from free volume, transit duration and target humidity. A common rule of thumb is 1 to 2 kg of high-efficiency desiccant per cubic metre of free volume, doubled for long ocean voyages.
• Humidity indicator cards. Place a card where it can be read easily on opening, as acceptance evidence. A target of 60 percent relative humidity or below at opening is typical, and 50 percent or below for journals and bearing seats.
• The boundary for vapour phase corrosion inhibitors. VCI works well on carbon and alloy steel, but compatibility with bronze liners, babbitt bearing shells and chrome or nickel plated barrel surfaces must be confirmed separately. Liners and shells usually contain copper or lead-based alloys, which are non-ferrous, and some VCI chemistries risk accelerating their discolouration.
• Surface preparation. Coat journals, bearing seats and mating faces with a compatible rust-preventive grease and fit protective sleeves. Barrel working zones generally should not carry heavy grease, because it affects later use and roughness measurement, so rely on dry sealing instead.

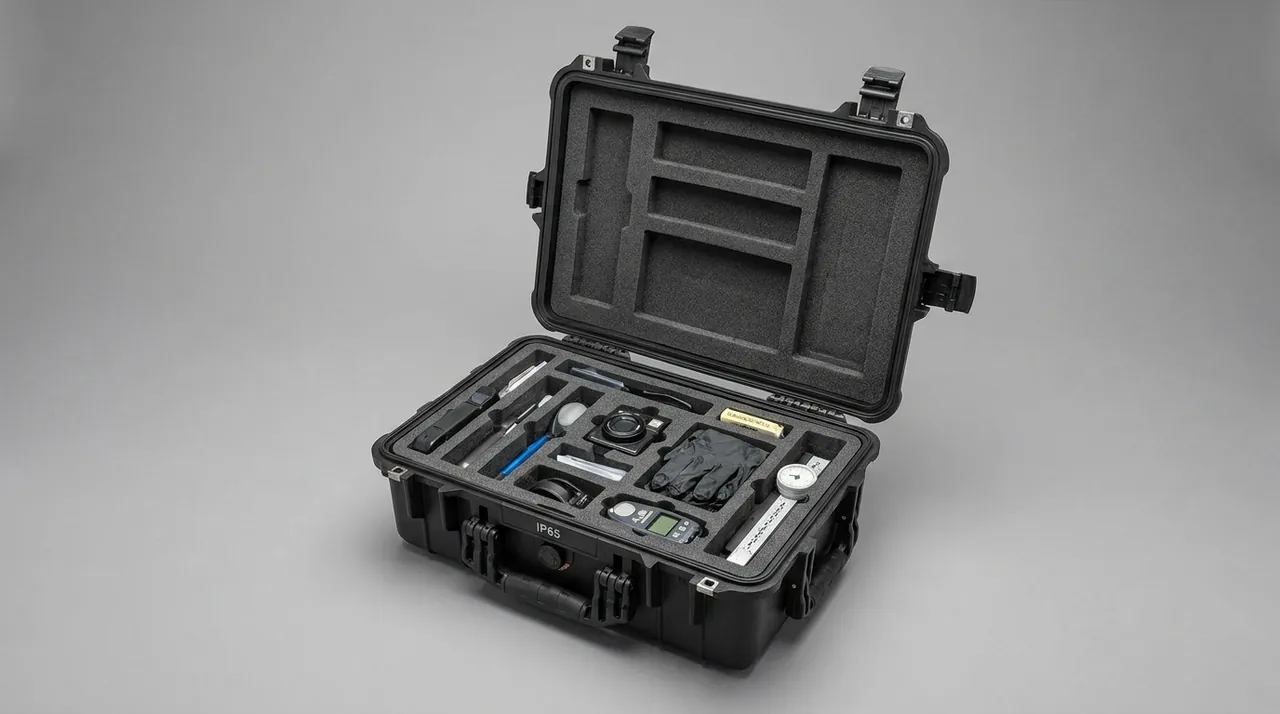

• Sealing and pressure differential management. The gasket keeps the case airtight, but pressure differences across climate zones or on air freight make the case breathe. Fit a pressure equalization valve; selection guidance is in pressure equalization valve configuration. This avoids both a hard-to-open case and a crushed gasket.
• Isolation requirements. Separate stainless rolls from carbon steel parts to avoid galvanic corrosion. For export, timber must meet fumigation and moisture content requirements so that extractives and moisture from the wood do not affect the components.

On cleanliness, oil-film and sliding bearings are extremely sensitive to particulate contamination. ISO 4406 is the standard way of expressing the solid particulate contamination level of hydraulic fluid, using three numbers for the count levels of particles above 4, 6 and 14 micrometres. Although aimed at fluid in service, it is meaningful in a packaging context: particles, fibres and dust inside the case that enter a bearing cavity or a mating face are effectively pre-installed abrasive.

Workable cleanliness measures:

1. Choose low-outgassing, non-shedding closed-cell foam. Never use foam that has already degraded.
2. Clean insert cavities with lint-free cloth and isopropyl alcohol before packing, and let them dry naturally.
3. Cap all oil ports and mating bores with dedicated plugs or heat-shrink caps.
4. Double-pack precision parts: PE bag for dust, then the insert for shock, secured with a tie at the opening.
5. Unpack in a clean area, such as the roll shop or the assembly bay, rather than beside the mill.

9. Vibration and Shock: ISTA, ASTM D4169 and GB/T 4857

Transport vibration energy comes mainly from road excitation and handling drops. The first is long-duration, low-amplitude vibration, a fatigue-type load. The second is short-duration, high-amplitude shock, a strength-type load. Heavy packages add a further factor: the inertial load from self-weight is far greater than for light packages. At the same acceleration, a 500 kg roll generates ten times the inertial force of a 50 kg case.

Three test families are commonly combined.

• ISTA series. ISTA 1 series, non-simulation integrity tests, works as a pass-fail check before dispatch. ISTA 3 series, general simulation performance tests, includes temperature and humidity conditioning, random vibration, drop and shock, and comes closer to the real distribution environment. Heavy packages should note how the ISTA 3 series partitions by weight. Method selection is detailed in ISTA transport testing procedure.
• ASTM D4169. This standard uses the distribution cycle as its framework and selects a test sequence and assurance level per transport mode. Assurance level selection for heavy packages needs particular care. See ASTM D4169 distribution cycle testing.
• GB/T 4857 series. The basic test methods for transport packages in China, covering stacking, vibration, shock and drop. It is the most frequently cited basis in Chinese tender documents. Key points are collected in GB/T 4857 transport packaging.

MIL-STD-810H is often cited as a source of environmental test methods, for example Method 514 vibration, Method 516 shock and Method 507 humidity. It must be stated clearly that citing MIL-STD-810H methods only standardizes test conditions and levels. It does not mean the product holds any military certification, and it does not mean all test items were passed. Wording boundaries are covered in MIL-STD-810H compliance notes.

For roll and chock cases, the recommended verification package is as follows.

1. Random vibration to ISTA 3 or GB/T 4857.23, watching for cradle displacement, any contact between roll and case wall or divider, and indentation growth at cradle contact surfaces.
2. Drop testing. For heavy packages, drop tests are often limited by equipment capacity and by the standard's scope. Substitute a combination of horizontal impact, inclined impact and edge drop, focused on the case corners and base frame. The test sequence must be chosen from the actual package weight and the applicable scope of each standard.
3. Stacking and compression using a static load estimated from warehouse stack height and duration, confirming the case does not collapse and the cradle does not take a set. Heavy packages are usually not stacked, so the relevant case is lateral squeeze while secured.
4. Humidity and temperature cycling to simulate an ocean container, followed by vibration and impact.
5. Post-test inspection: visual and optical check on the barrel, dimensional and roundness check on journals, straightness measurement on the barrel, and permanent deformation check on the cradle.

Rule of thumb: for heavy roll cases, permanent deformation at the cradle contact surface after testing should stay within 10 percent of the original facing thickness. Barrel straightness change should not exceed half the drawing tolerance, and journal roundness change should be negligible.

10. Heavy Lifting and Transport Securing: Rigging, Saddles and Lashing

Roll and chock cases are heavy freight, with individual weights from several hundred kilograms to tens of tonnes. A packaging design that is not developed together with the lifting, lashing and transport securing plan simply transfers safety risk onto the people doing the work and onto the driver.

Lifting points:

• Lifting points must be specified by the structural design. Never sling from hinges, latches, handles or straps. Handles are for manual carrying, not for lifting.
• Rigging selection. Prefer dedicated lifting fixtures or wide soft webbing slings. Never let steel wire rope touch the barrel or journal directly.
• Centre-of-gravity marking. Mark the centre of gravity and the lifting points on the outside of the case with a durable label, so the load does not swing after take-up. Cases with an offset, such as those holding asymmetric heavy parts, must be marked individually.
• Swing control. Use tag lines during lift and landing to prevent contact with equipment, racking or other workpieces.
• Job briefing. Follow the site's crane operating procedure, with a technical briefing covering the load, lifting points, signalman instructions and exclusion zone.

Transport securing points:

Safety note: the liftability of a packaging case must be guaranteed by structural design and verified by load testing. It cannot be assumed because the case looks sturdy. For very heavy cases, write the rated load at each lifting point and the verification method into the procurement technical requirement. For cases that shuttle frequently in-plant, a heavy-duty base frame with castors can be fitted, but the rated load of the wheels must match the total weight and the floor conditions. The structural form is described in case wheels and trolley handle configuration.

11. Incoming Inspection, Traceability and AQL Sampling

The value of a packaging scheme is proven at incoming inspection. Three items should be written into the purchase contract.

1. Arrival visual check. No case damage, no water ingress traces, gasket intact, humidity indicator card showing normal, seal numbers consecutive, lashing and securing intact.
2. Opening and sampling. Determine the sampling plan under GB/T 2828.1, the counting sampling inspection procedure, and judge the lot against an AQL value. The method and typical values are covered in custom case acceptance and AQL sampling.
3. Component condition confirmation. Check barrel, journal, mating faces and liners item by item, recording deviations against the dispatch record.

A suggested sampling checklist:

Roll numbering and service record management is the core of this work. Use a weather-resistant tag on every case showing roll number and specification, the stand and stand position it serves, crown and roughness parameters, grinding date and grind count, packing date, a unique case number and a QR code. For a rolling mill, the value of rolls that can be found, matched and traced usually pays for itself during a single unexpected stoppage caused by fitting the wrong roll.

12. Custom Workflow and OEM/ODM Delivery

For steel mills and roll manufacturers that need long-term, repeat supply, the packaging scheme should be managed inside the supplier system rather than bought ad hoc per order. JUNZHJIA, manufactured by Kexin New Material (Guangdong) Co., Ltd., serves wholesale, distribution and OEM/ODM customers worldwide and provides end-to-end support from shell selection and cradle and insert customization to document delivery. The typical workflow is as follows.

1. Requirement capture. The customer supplies roll or chock drawings, a packing list, transport modes (sea, air, rail, road), target-market regulatory requirements, annual volume and batch rhythm.
2. Concept design. Output shell specification, material, protection rating, load-bearing base frame structure, cradle layout drawing, insert layering drawing and a 3D assembly view.
3. Sample approval. Build the first case and cradle so the customer can load the parts and verify handling convenience, restraint performance and lifting feasibility.
4. Test verification. Run vibration, impact, stacking and humidity-temperature cycling as agreed, and issue test records.
5. Production and quality control. Sample by batch and retain the first article plus process records.
6. Document delivery. Provide material certificates, protection rating statements, load capacity statements, test records, packing drawings and label templates.
7. Continuous improvement. Adjust cradles and hardware based on field feedback, with version-controlled drawings.

When choosing a supplier, the evaluation dimensions in how to choose a protective case OEM factory are useful. Focus on three things: the ability to build non-standard sizes and high-load structures, the ability to provide verifiable test records and load calculations, and relevant industry delivery experience. For tooling and structural part amortization, minimum order quantity and lead-time structure, see custom case mould cost analysis. The process path from drawing to finished insert and cradle is described in EVA foam insert custom process and the custom foam inserts guide.

Users should also manage packaging assets over their service life. Both case and insert age: gaskets harden, foam powders, cradles take a permanent set, latches loosen, hinges deform, base frames corrode. Use protective case service life management to build a periodic inspection schedule, typically a full assessment at 3 to 5 years or after 200 or more open-close cycles, with routine cleaning covered in how to clean a protective case.

13. Selection Decision Tables and Common Misconceptions

For quick decision making, common scenarios are summarized below.

Common misconceptions:

• Misconception 1: heavy parts cannot be damaged by a drop. Heavy parts generate greater inertial load, and impact energy scales with mass, so they need more careful support and cushioning, not less.
• Misconception 2: a harder case is a better case. A rigid case with a poor cradle concentrates impact on the barrel. Split the roles: the shell resists compression, the cradle absorbs energy and spreads contact stress.
• Misconception 3: a smaller cradle contact patch is more precise. A small contact patch means high contact stress, which leaves indentations on the barrel. A roll cradle wants a long contact arc and low contact stress.
• Misconception 4: using the journal as a support point. The journal is the bearing fit with micron tolerances. It must never be a support or lifting point.
• Misconception 5: IP67 solves everything. IP covers only dust and water, not shock, vibration, static or humidity-temperature cycling.
• Misconception 6: slinging the barrel with steel wire rope. Wire rope crushes the barrel surface. Use soft webbing slings or dedicated fixtures, with protective sleeves.
• Misconception 7: treating MIL-STD-810H as a certification. It is a source of test methods, not a certificate, and the wording must be precise.
• Misconception 8: a cradle designed once lasts forever. Cradles take a compression set and must be included in the periodic inspection and replacement plan.

Frequently Asked Questions

Q: Rolls are heavy, so why do they need a dedicated case at all? Would a timber pallet and rope not work?

A: Weight does not mean immunity to damage. On the contrary, heavy parts generate greater inertial load, and impact energy scales with mass at the same acceleration, so the demands on support and cushioning are higher rather than lower. A timber pallet with rope fails in three ways. First, the support points cannot be placed accurately along the bending moment distribution, so an unsupported mid-span easily produces residual bow. Second, contact stress is uncontrolled, and rope or hard timber creates high-stress contact points that leave indentations on the barrel. Third, there is no humidity control at all, so journals and mating faces corrode on ocean freight or during monsoon transhipment. A professional case turns support point position, contact arc length, contact material hardness and internal humidity into parameters that can be designed, verified and accepted. For a roll, barrel damage is irreversible and journal corrosion requires re-grinding, and every grind reduces diameter and shortens roll life. The packaging investment is very small relative to roll value and line downtime.

Q: How should support points be laid out when packing a roll?

A: The principle is to place the end supports close to the barrel ends, add intermediate supports according to length-to-diameter ratio, and always clear the journal. In practice, the end supports sit on the barrel near each end face but must keep clear of the journal and bearing seat. Intermediate supports are added according to length-to-diameter ratio, with spacing generally not exceeding 15 to 20 times the barrel diameter. Work rolls above a 15:1 ratio should have four to six support points so no long unsupported span remains. Prefer a V-block or arc cradle, which lowers contact stress by increasing the contact arc length. The V angle is typically 60 to 120 degrees, the groove mouth and root need radiused transitions to avoid a sharp corner forming a line contact, and contact length should typically be at least 0.5 times the barrel diameter. The cradle inner surface needs a soft facing of at least 5 mm. The most common error is putting a support on the journal, which crushes the bearing fit directly, and journal tolerances are measured in microns, so the only remedy is re-grinding.

Q: Can chocks and oil-film bearings share a case with the roll?

A: Technically yes, but they must be compartmented and strictly isolated, and separate cases are the better engineering answer. The two component classes have completely different sensitivity profiles. A roll's sensitive surfaces are the barrel and journal, which need large-area low-stress support. A chock or oil-film bearing's sensitive surfaces are the mating bores and internal surfaces, which need absolute freedom from metal contact and from particulate contamination. Sharing a case creates three risks. A chock is a hard heavy part and will crush the barrel if it contacts it under vibration. Liners and bearing shells are soft and will be scored if packed with bolts or other hardware. Particulate contamination is very hard to control inside a shared case and is a fatal hazard for oil-film bearings. If they must share, give the bearing components their own compartments and wrap them fully in lint-free cloth or PE film, cap the mating bores, put a rigid divider between the bearing and roll compartments, zone the desiccant, and mark the packing drawing with the component assigned to each compartment and the restrictions that apply.

Q: The barrel has been chrome plated or laser textured. What extra packaging requirements apply?

A: More demanding ones. Plating and texture are surface structures, and once crushed or scored they cannot be repaired by local polishing. The only remedy is re-grinding and re-processing, and in some cases the roll is scrapped early. Four extra requirements apply. First, contact surfaces must use non-shedding, hard-spot-free soft materials, and fixings with metal rivets, clips or wood screws must never touch the barrel directly. Second, straps must be soft padded and must avoid the barrel working zone, and the barrel must never be lashed with steel wire, steel banding or hard zip ties. Third, lifting must use wide soft webbing slings or dedicated fixtures with protective sleeves, and steel wire rope must never touch the barrel, because grit carried on a sling is pressed into the surface under load. Fourth, the barrel and the insert cavities must be thoroughly cleaned before packing, so particles do not become abrasive under contact stress. Coated rolls are also more humidity sensitive, so keep relative humidity at opening below 50 percent.

Q: How do I choose cradle material, and what is the difference between EVA, polyurethane and timber cores?

A: EVA is a closed-cell, CNC-machinable, bondable foam with a wide density range, commonly 60 to 120 kg/m3. Its compression rebound is controllable and it sheds little, making it suited to arc cradles for small and medium rolls and non-ferrous rolling rolls, with a good balance of cost and performance. Polyurethane has better load capacity and wear resistance than EVA, and its rebound behaviour better absorbs impact energy, making it suited to heavy rolls, though oil and weather resistance need attention because long exposure to oil or ultraviolet light accelerates ageing. A plywood or composite core with a soft contact layer offers the highest load capacity, suited to very heavy rolls and backup rolls, but the timber must have controlled moisture content and meet export fumigation requirements, and the surface must be moisture treated so extractives do not affect the barrel. A steel saddle with a thick soft pad offers the highest load capacity of all, suited to very large backup rolls, but the pad must be thick enough and matched to the weight, otherwise impact goes straight through to the barrel. Also confirm the material contains no sulphur, no chlorine and no recycled content.

Q: Which standards should packaging validation cite, and what is special about heavy packages?

A: Organize the answer along three lines: transport performance, environment and materials. For transport performance, the ISTA series and ASTM D4169 with its distribution cycle sequences are common, while Chinese tenders usually cite GB/T 4857. Heavy packages need three special considerations. First, drop test height and weight brackets are limited by the scope of the standards and by equipment capacity, so very heavy items often cannot be drop tested in the standard way. Substitute a combination of horizontal impact, inclined impact and edge drop, and state in the documentation exactly which test conditions were actually run rather than copying clauses from the standard. Second, stacking tests are often not meaningful for heavy packages, because in practice they are not stacked, so verify lateral squeeze and lashing conditions instead. Third, the assurance level must match the actual package weight and transport mode, supported by a contact stress calculation. For environmental conditions, cite MIL-STD-810H method numbers and levels but state that this is only a source of test methods and does not represent military certification or full item pass. At material level, UL94 covers flame ratings and ISO 9227 covers salt spray.

Q: Does the case need explosion-proof certification?

A: No, and it should not be required. A protective case is an outer packaging container, not electrical or mechanical equipment for explosive atmospheres, so the corresponding equipment certification systems do not apply. Packing a roll in an IP67 case creates no explosion protection certification effect. Conversely, the fact that the roll serves a rolling shop does not imply that the packaging needs such certification. The correct approach is to define the boundary: the case is opened and handed over in the roll store, the roll shop or the plant periphery, and the case itself never works while energized or in operation. If handling inside an area with special requirements is unavoidable, follow the site's hot work, static and area management rules and avoid dragging metal parts across the floor, which can produce sparks. If the contents are returned parts carrying large amounts of oil or emulsion, handle them under the relevant dangerous goods packaging requirements, with draining and cleaning first, and mark the contents and any precautions on the case.

Q: Do inserts and cradles need periodic inspection, and what should be checked?

A: Yes, and more frequently than a general packaging case. Cradles and inserts are consumable protective structures that take a compression set, powder, crack and shift with use. Build a periodic inspection checklist covering at least the following: whether the cradle contact surface shows permanent indentation or collapse, with a rule of thumb that deformation should not exceed 10 percent of the original facing thickness; whether the foam powders or sheds; whether the insert has shifted or debonded; whether any hard spot has become exposed at the groove mouth; whether gaskets have hardened or cracked; whether latches and hinges have loosened; and whether the base frame is corroded or deformed. Set the interval from open-close cycles and the operating environment, typically every six months for high-intensity shuttling and annually for general use, with a full assessment at 3 to 5 years or after 200 or more cycles. As soon as a cradle contact surface shows permanent deformation it must be replaced, because a deformed cradle creates a local high-stress contact point that will directly damage the barrel.

Q: How do I confirm the lifting capability of a case, and can I lift it by the handles?

A: Never lift by the handles. Handles and grab rails are designed for manual carrying, and their load capacity is typically only a few hundred newtons, whereas the dynamic load during lifting can be several times the combined weight of case and contents. The two are not remotely in the same class. The correct approach is that lifting points must be specified by the structural design, participate in the load calculation as part of the structure, and be verified by load testing. Mark the outside of the case durably to distinguish lifting points from carrying points, and label the rated load at each lifting point. Prefer dedicated fixtures or wide soft webbing slings, and never let steel wire rope touch the barrel or journal directly. Use tag lines during lift and landing to prevent contact with equipment and racking. For very heavy cases, write the rated load at each lifting point, the verification method and the required documentation into the procurement technical requirement, and inspect the lifting points visually before every lift to confirm no deformation, cracks or corrosion thinning.

Conclusion & Related Reading

The essence of a rolling mill and roll case is translating three characteristics, namely sensitivity to self-weight deformation, irreversible surface condition, and a long accuracy chain of mating parts, into executable support and insert language. Use V-block cradles and multiple supports to handle self-weight bow. Use long contact arcs and fully soft contact surfaces to handle barrel indentation. Use compartmented location and individual wrapping to handle bearing mating face damage. Use desiccant, compatible rust prevention and cleanliness control to handle corrosion and particulate contamination. Use lifting point marking and job briefings to handle the safety of heavy handling. Do these and the three high-frequency losses, namely barrel indentation, residual barrel bow and journal corrosion, fall systematically.

Write the protection rating, cradle form, support point layout principle, test basis and acceptance method into the procurement technical requirement, and require the supplier to provide material certificates, load calculations and test records. JUNZHJIA, manufactured by Kexin New Material (Guangdong) Co., Ltd., serves wholesale, distribution and OEM/ODM customers worldwide and supports non-standard heavy-duty case design, V-block cradle and insert customization and volume delivery, with inspection and packing documents per project, so that ferrous and non-ferrous rolling operations can bring packaging into the spare-part quality system instead of leaving it as evidence for a post-incident investigation.

Related Reading

• Cushion liner design: multi-point support and energy dissipation paths
• Waterproof case IP design: desiccants, humidity cards and pressure equalization valves
• Protective case service life management and periodic inspection
