Cleaning a protective case is far more than cosmetic care; it is the precursor to seal retention and contamination control. Sand left in the seal groove turns into abrasive particles that wear the gasket on every close, and salt spray or chemical residue slowly attacks the shell through micro scratches while feeding mold when humidity allows. For cases carrying food, medicine or precision electronics, poor cleaning causes cross contamination that compromises the contents. Experience shows that standardized cleaning extends gasket life by about forty percent and cuts odor and mold complaints from contamination by over sixty percent. Field teams that adopt this routine report fewer weather related failures and noticeably less downtime during deployments, because small soil issues are caught before they grow. This article builds an actionable workflow around cleaning grading, pre cleaning preparation, shell dusting, stubborn stain removal, seal groove care, latch and hinge service, liner cleaning, wheel and handle wash, pressure valve clearing, hygiene management, scenario based cleaning, cleaner selection and post clean drying and storage, and it complements Protective Case Maintenance: Service Life Extension and Seal Retention, Protective Case Stacking Guide: Warehouse Stacking Safety and Load and Protective Case Accessories Upgrade: Latches Wheels Handles and Pressure Valves. In practice grading also links to asset value. High value precision instrument cases deserve higher frequency and finer daily cleaning with a dedicated seal groove check after each task; ordinary tool cases run weekly or monthly. A cleaning calendar lets teams execute without missing steps. Merge the cleaning record with the overall maintenance cycle for a continuous file that feeds life assessment and spare buying, while cutting the seal wear from unexpected opening. The same log supports audit and traceability across a mixed fleet of cases used by several departments.

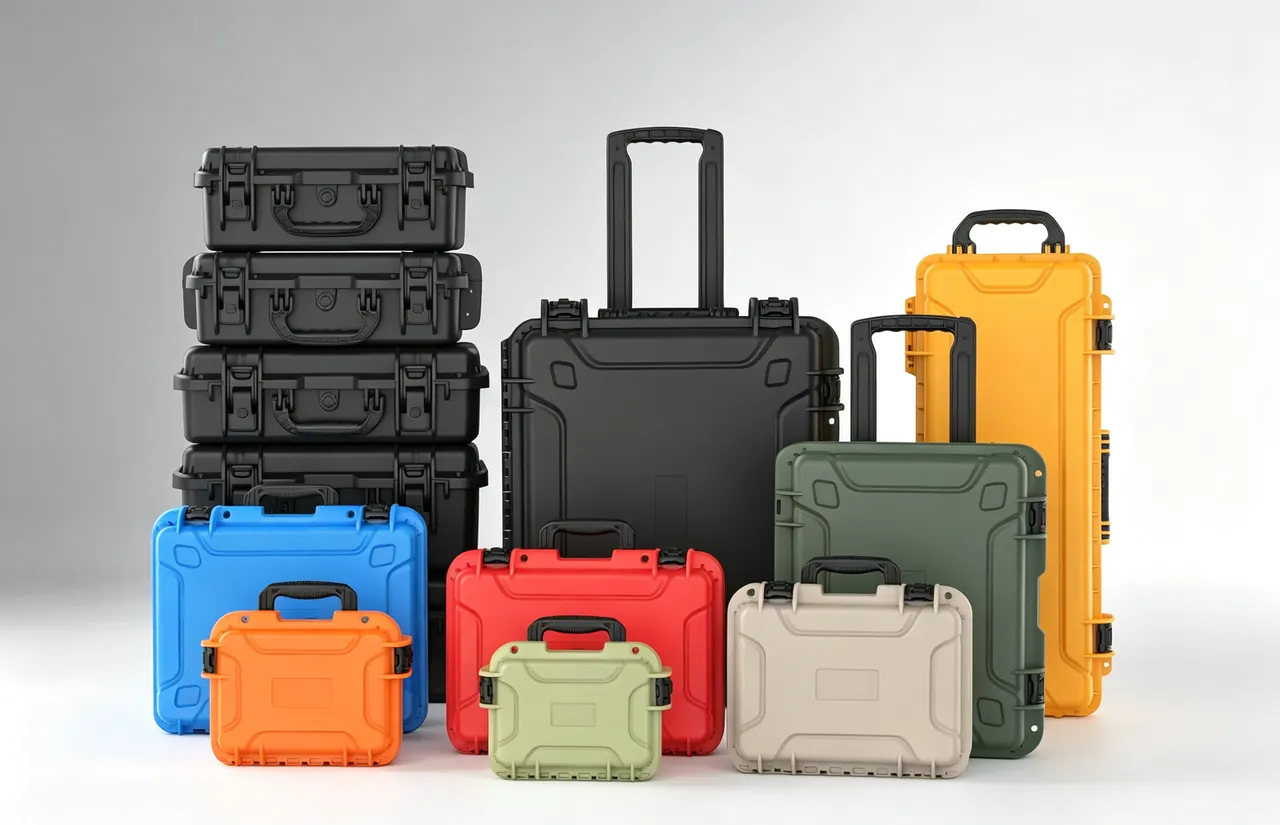

1. Overall Principles and Cleaning Grades
Cleaning follows four rules: outside before inside, dry before wet, zone graded, clean on contact. Outside before inside means clearing shell dust and soil before opening, so external dirt is not carried into the cavity by hands. Dry before wet requires a dry brush and cloth first, confirming no grit remains before any wet method that could scratch the shell and print. Zone grading separates pollutants: ordinary dust uses dry method, oil and salt spray use neutral wet method, chemical residue uses a dedicated neutralizer. Clean on contact stresses that fresh soil is easiest to remove; once dried it costs far more. For medical and food cases, cleaning enters a hygiene workflow per the cleanliness requirements in Field Medical Case Standard. Frequency can be scheduled with the overall maintenance cycle in Protective Case Maintenance: Service Life Extension and Seal Retention to avoid repeated opening.
2. Preparation and Protection Before Cleaning
Make four preparations before cleaning. First, empty the cavity and remove all equipment and liners so wash liquid cannot enter instrument ports; if equipment must stay, wrap it in a waterproof bag with ports facing up. Second, choose a flat, drained, lit bench with an anti scratch mat to avoid shell ground friction. Third, gather tools: neutral detergent, soft brush, microfiber cloth, compressed air, deionized water, silicone oil and lithium grease; wire wool and strong solvents are banned. Fourth, wear gloves and goggles, especially for unknown chemical residue. Verify the case label and pocket map so items return to place after cleaning. For cases with electronic locks or sensors, disconnect power and cap ports before washing, per Instrument Case Selection Guide. Good preparation lets later cleaning be thorough yet harmless, and it protects electronic parts discussed in Protective Case Accessories Upgrade: Latches Wheels Handles and Pressure Valves. Preparation should also confirm cleaner compatibility with the shell, testing in an inconspicuous spot when unsure. For teams cleaning many cases, split wash, rinse and dry zones into one way flow so clean cases are not re soiled by wastewater. Clean tools after use so detergent does not cake on brushes. For cases with breath or pressure valves, tape or plug the port before high pressure rinse so water cannot backflow through the valve into the cavity, a detail stressed in the pressure valve structure guide above. Good prep saves far more time than it costs on a busy bench.
3. Shell Dusting and Soil Removal
Daily shell care is mostly dry. Sweep seams along the reinforcing ribs with a soft brush, and blow recesses with compressed air at moderate pressure to avoid lifting print. For plastic shell dust and fingerprints, a dry microfiber cloth suffices; stubborn prints yield to a breath fog and light wipe. Metal shells should be finished with a dry cloth to cut water marks and rust triggers. For soil, use diluted neutral detergent on a half wrung cloth, wiping one direction so liquid does not run into locks and joints. Work top down so cleaned areas are not re soiled by upper runoff. For long outdoor cases, learn dust patterns from Outdoor Case Dustproof Design. Shell cleaning is also the moment to spot cracks; log new ones and judge repair per Repair Cracked Case Shell. Do not close immediately after dusting; move to the seal groove step next. Shell dusting should watch label and print integrity. Once print is damaged by solvent or hard object, the identity and management information is lost, so treat printed areas with a dry soft cloth only. Pasted transport warnings and asset barcodes need gentle handling; press lifted edges back or fix with clear tape. Label care is part of asset tracking, per color visual management and QR code tracking already noted. Clear labels ease daily counting and let staff quickly confirm items returned after cleaning, closing the loop between wash and inventory accuracy on the bench.
4. Removing Stubborn Stains
Dried mud, insect resin, sap and oil need stepwise softening. Soak mud with water to soften, then brush gently; never scrape with hard objects that scratch the shell. Insect resin and sap can be lifted with an isopropanol pad applied briefly, then wiped and immediately removed with a damp cloth so solvent does not stress the plastic. Oil is emulsified with neutral detergent, rinsed with deionized water, and blotted with degreasing cloth if needed. On painted or printed areas, test any solvent in an inconspicuous spot first. Rust appears only on metal shells; early spots take fine sandpaper and touch up paint with sealant, per Metal Toolbox Rust Prevention. Strong acid, alkali, banana oil and xylene swell or embrittle engineering plastic and are banned on shells. Protect the seal area so solvent cannot flow back into the groove, as noted in Case Seal Strip Guide. Stubborn stain work should also respect temperature. Cold plastic is more brittle, so scraping in low temperature cracks easier; move the case to room temperature before cleaning in cold regions. On old cases with thin paint, test solvent cautiously, preferring several light passes over one hard pass that bares the substrate. After stain removal, photograph the shell to set a scratch baseline and judge next time whether new damage came from handling. This filing habit echoes the crack repair assessment and builds a useful visual history per case.

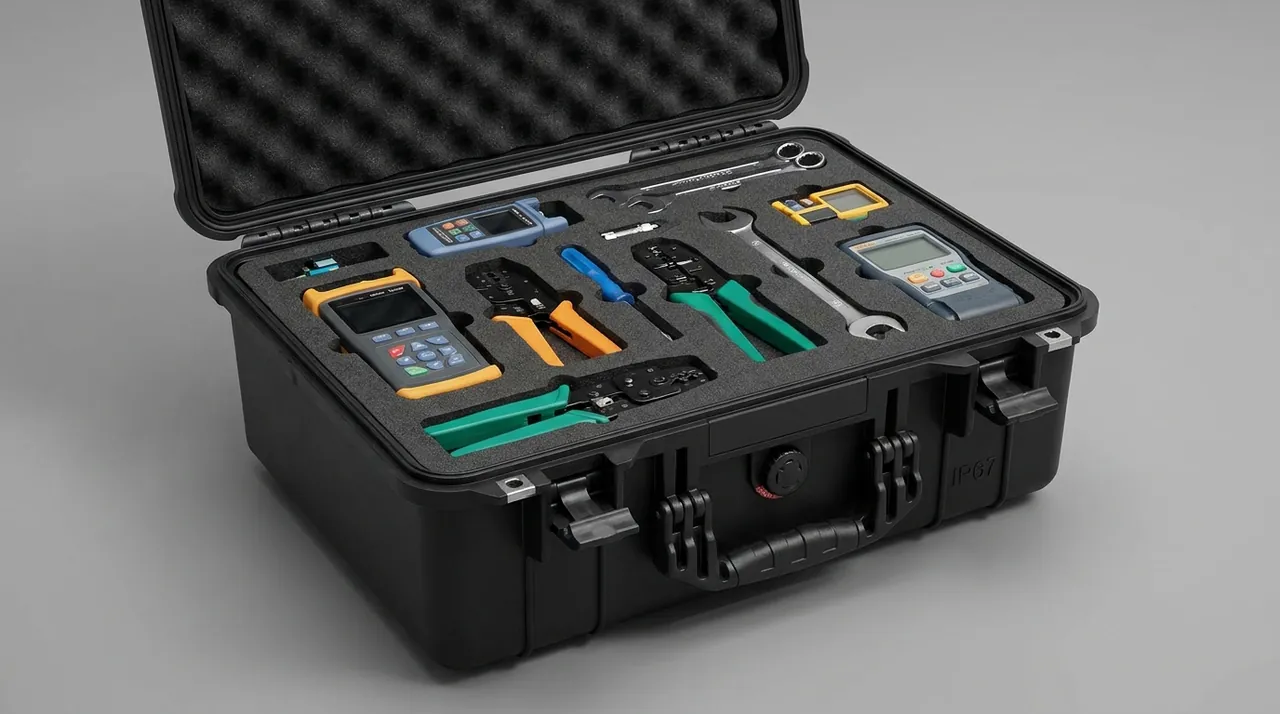

5. Seal Groove and Gasket Cleaning
Seal area cleaning is the core of the whole process and decides waterproof life. First clear the groove bottom and corners with a soft stick or spent toothbrush, lifting sand, salt crystals and aged rubber crumbs; keep motions light to avoid nicking the gasket section. Wipe the gasket itself with neutral detergent and a soft cloth to remove surface oil film and adhered grit; petroleum solvents such as gasoline or oil are forbidden because they swell rubber. Rinse with a damp cloth and dry fully, confirming no detergent remains in the groove. For double seals, clean inner and outer separately; the inner is hidden yet collects more dust. After cleaning, a thin silicone film helps, with technique in the seal care section of Protective Case Maintenance: Service Life Extension and Seal Retention. If the seal is hard or cracked, assess replacement per Gasket Aging and Replacement. Always dry the groove before closing to avoid trapped moisture. Seal groove cleaning should mind tool material. Use wood or plastic soft sticks for corners, never metal points that scratch the groove wall and seed future dirt and leaks. For thick section gaskets, gently pull to confirm it still seats; lift means debris inside or a deformed seal. If the case will wait, cover the groove with clean film against dust and peel before assembly. Combined with the replacement criteria in gasket aging, this turns cleaning into a quick seal check that lifts maintenance efficiency without extra opening of the lid. A useful field habit is to keep a small cleaning kit with the case: a foldable soft brush, a microfiber cloth, a tube of neutral detergent and a few alcohol pads. When the case is deployed far from a workshop, this kit turns a potential seal failure from ingressed sand into a five minute trail side clean. Train operators to spot the first gray haze on the gasket so they report it before the next mission rather than after a leak is found during inventory, which keeps the whole fleet reliable over many deployment cycles.
6. Latch and Hinge Cleaning and Lubrication
Latches and hinges are easy to skip yet most vulnerable to dirt. Brush latch body dust, blow the cavity and tongue gap with compressed air so grit cannot grind the plating during use. Keyways take a little lock lubricant; after salt spray, clear crystals promptly. Hinges need sand and old grease removed from the pin area to bare metal, then a dot of neutral lithium grease worked in by a few open close cycles. Hinges with rubber dust caps come off, clean and reseat. Watch the latch to frame contact; dirt under it prevents full close and presses the seal, per Toolbox Hinge Latch Seal. Removable hinges can be swapped whole when badly fouled, per Case Hinge Replacement Guide. Wipe excess grease so it does not attract dust and re contaminate; details also tie to Latch Hardware Material Guide. After cleaning latches and hinges, verify function. Open and close several times to confirm tongue rebound, no hinge drag and no noise; persistent catch means sand remains or wrong grease. For keyed types, check key insert and turn, adding lock lube if needed. Functional verification catches mechanical damage that cleaning cannot fix, before a mission reveals a failed latch. Merge this check with the inspection in the maintenance cycle to cut repeated opening that wears the seal and raises contamination risk during each needless access.
7. Liner and Foam Cleaning
Liner cleaning removes dust, crumbs and occasional liquid without harming cushion. Open cell polyurethane and cross linked polyethylene foam take a soft dry brush, with recess crumbs blown out at low air; water soluble stains are blotted with a wrung cloth, never soaked, because foam swells and dries slowly when wet. Removable liners go to a ventilated area for tapping out dust; heavily soiled ones are cheaper to replace than to wash repeatedly, per Case Custom Foam Factors. Fabric liners take a light neutral scrub and rinse, then dry before fitting. While cleaning, check pocket fit to the device; loose or cracked spots are fixed per Foam Relining and Recutting. Incomplete liner drying breeds mold, so always shade dry fully and use desiccant if needed, per Condensation Control in Cases. Liner cleaning grades by material. Open cell foam wets easily and must not be washed; cross linked polyethylene resists water better but still stays dry method. Anti static liners need anti static cloth and grounding to avoid friction sparks near sensitive parts, per the anti static case guide. Yellowing, brittleness or crumbling during cleaning signals aging; log the batch for replacement. Liner state drives cushion, so its cleaning and swap belong in the material comparison selection that sources more stain resistant, easy clean foam from the start of the program for lower lifecycle cost.
8. Wheel and Handle Cleaning
Wheeled cases pick up stone and sand in the wheel gap during drags, so focus on wheels and handle joints. First lever out gravel, hair and mud from the wheel frame and gap with a flat tool, then rinse the wheel and spin it to confirm no catch or noise. If the bearing is reachable, dry it and add a little dry film or lithium grease. Brush the handle grip and rivet gaps; telescopic rail dust jams travel, so blow it clear and add dry film lube. For trolley handles, follow the structure points in Case Wheels and Trolley Handle to leave nothing missed. Log any frame deformation or loose handle for repair rather than use while faulty. Wheel cleaning must also stay consistent with handling safety in Warehouse Stacking Moisture Cases. When replacing wheels, the selection advice in Protective Case Accessories Upgrade: Latches Wheels Handles and Pressure Valves keeps the swap matched to case load. Wheel and handle cleaning should also read wear. Watch for uneven tread, frame cracks and grip splits that hint at overload or harsh ground. Uneven wheels make the case drift and vibrate the frame, so log and replace after cleaning. Cases often lifted over steps loosen the handle joint; tighten screws and add thread lock while cleaning. Note wheel mileage or drag distance in the record to give the durability load test a real basis, so service targets the right case instead of guessing across a mixed and busy fleet of wheeled boxes. For cases moved by vehicle, secure the wheels so they do not roll during transit; a simple strap across the trolley base prevents the case from shifting and scraping the shell against the load. After cleaning, spin each wheel once more to confirm no grit remains caught in the bearing, since a single stone can wear the race within a few kilometers of rough road. Log the wheel condition photograph with the cleaning record so wear trends are visible across the fleet and replacements can be planned before a failure strands critical equipment at the worst moment of a task.
9. Pressure Valve Cleaning
The pressure valve vent is tiny and clogs easily, so clean it patiently. Brush loose dust from the body, then clear the vent from outside in with a fine needle or compressed air, never enlarging the hole or the relief setpoint is lost. Valves with a screen come apart for a water rinse, dry and refit; seat soil is lifted with a water damped swab, no solvent. After cleaning, test open close for lively rebound and free venting. A lost cap lets dust and water straight into the cavity, so fit a spare, with structure in Case Pressure Equalization Valve and Outdoor Case Pressure Valve. For frequent air or high altitude moves, value cleaning with the altitude profile in Outdoor Case Air Transport. Confirm the seat seal is present so the closed case does not weep at the valve, per Outdoor Case Seal Ring. Valve cleaning should count by environment. Sandstorm, beach and site cases foul faster, so shorten the interval and stock caps. Salt frost around the valve body means long salt spray exposure; add shell desalting and drying. For auto return valves, press a few times after cleaning to confirm snap back; slow rebound means diaphragm aging and a spare is due. Merge valve care with the maintenance cycle valve section to avoid repeated opening and duplicated work, keeping the same single access efficient for both cleaning and service of the case.
10. Hygiene Management and Contamination Control
Cases for medicine, food and biological samples must treat cleaning as hygiene management. Keep a cleaning log with date, agent, operator and reviewer, plus before after photos. Dedicate cases by cargo or grade by risk to avoid cross contamination; when sharing is unavoidable, fully decontaminate and dry before reuse. Choose food or medical grade neutral cleaners and verify no residue after rinse. Wipe reachable interior surfaces with alcohol based disinfectant and let it fully evaporate before loading. Run periodic microbial swab checks against the standard in Medical Case Series Guide and Lab Sample Transport Case. For classified or high cleanliness cases, clean in a separate controlled area, consistent with Cleanroom Equipment Case. The aim is an interior always acceptable at open. Hygiene management needs trained staff and duties. Cleaners should be trained, with critical medical and food scenes using two person check, one cleans and one accepts and signs. Training covers dilution, disinfectant evaporate time, waste handling and personal protection to avoid residue or cross contamination. Single use wipes and gloves go to centralized disposal after use. Measure hygiene by periodic swab checks, consistent with the medical case series standard, so the case becomes a trusted clean carrier rather than an unnoticed source of contamination in transit or storage.

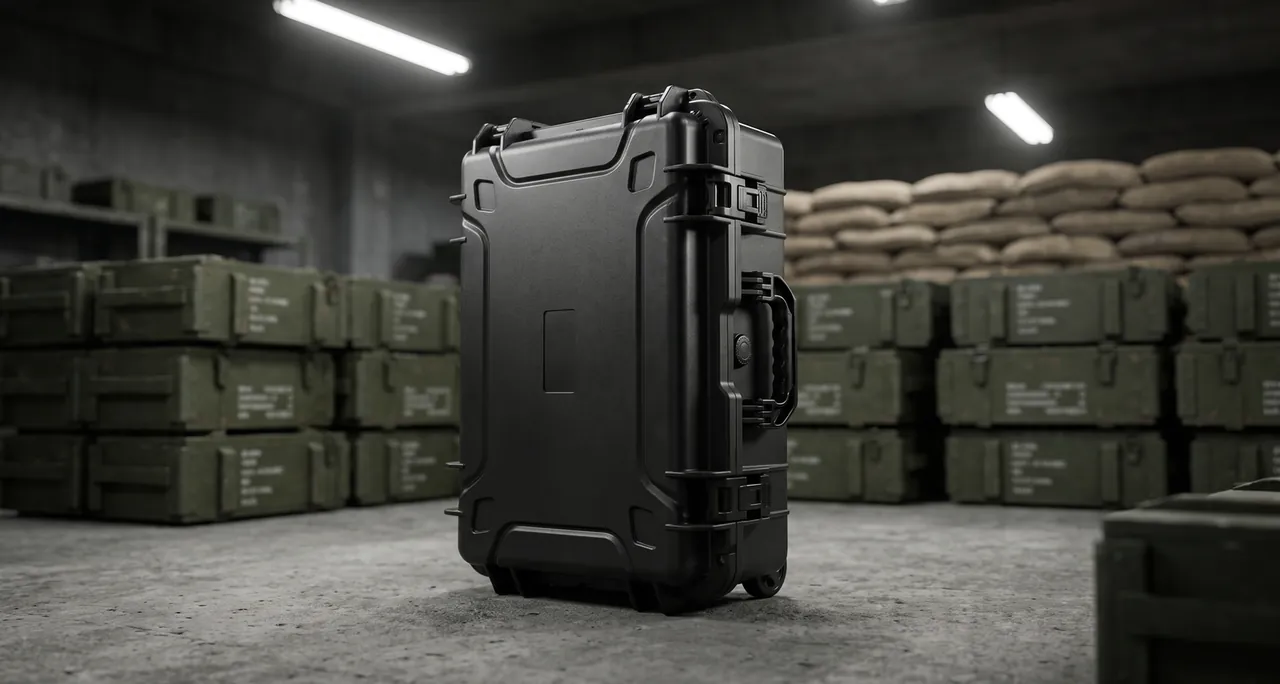

11. Scenario Based Cleaning Points
Scenes change the focus. Exploration cases face sand and salt; rinse salt after every return and dry, with derust steps from Marine Engineering Case Guide. Workshop cases carry oil and metal swarf; degrease then magnetically lift iron residue. Medical emergency cases stress hygiene per section ten with disinfection. Food and cold chain cases fight odor and mold; ventilate and desiccate after cleaning, per Cold Chain Case Guide. Electronic precision cases fear moisture and static, so dry method and anti static cloth per Antistatic ESD Case Guide. Military field cases balance dust and concealment; avoid harming camouflage and labels, per Tactical Hard Case Spec. Clear scenes let cleaning resources land precisely, wasting nothing and missing no key soil. Scenario cleaning should keep a pollutant lookup table. List common soils such as sand, salt, oil, blood, chemical residue with matching cleaner, tool and taboo on the wash wall so novices pick fast. For cases serving mixed scenes, clean to the strictest grade of the current task; medical plus outdoor means hygiene first. Update the table with standards and feed it into the procurement pitfall checklist so bought cleaners and consumables work on arrival, cutting on site trial and error, risk and delay before a scheduled deployment or shipment of the protected contents.
12. Cleaner Selection and Taboos
Cleaner choice follows neutral first, test then expand, dedicated by symptom. Daily use is pH neutral dish soap or dedicated plastic cleaner; oil takes neutral degreaser; unknown chemical residue takes its neutralizer. The ban list is firm: gasoline, kerosene, banana oil, xylene and acetone swell or crack engineering plastic and rubber seals; chlorine bleach accelerates metal corrosion and print loss over time; abrasive paste and wire wool scratch shell and seal faces. Silicone and EPDM seals tolerate alcohol briefly but must be dried at once, never soaked. Buy cleaners with a safety data sheet and verify compatibility with the shell material, listed in Protective Case Plastic Materials and Waterproof Box Material Choice. Sourcing tips also appear in Case Procurement Pitfall Checklist to avoid unknown products that harm assets. Cleaner taboos reach tools too. Beyond solvents, wire wool, rough scour and metal scrapers scratch shell and seal faces and are banned; prefer microfiber, soft brush and plastic scraper. Even neutral labeled industrial cleaners should be proven harmless to print and seal on a sample before broad use. Dispose wash water per local rules; oil and chemical laden water never goes straight to drain. Log cleaner purchase and storage to avoid expiry or mix up, tying the consumable account to the total cost of ownership for finer management of the cleaning program across sites.
13. Drying and Storage After Cleaning
Post clean handling decides whether cleanliness holds. Every part must be fully dry before assembly; shell and seal are blotted with lint free cloth then shade dried in ventilated shade, avoiding sun that stresses plastic and hardens seals. Undried foam must not be refitted; use desiccant or low warm air, not high heat. Assemble liner first then equipment, confirming pockets seated and ports up, before closing latches. Storage follows Case Warehouse Storage Rules: wall gap, ventilation, relative humidity below seventy percent; long idle cases loosen latches every two months for seal rebound. Rotate and log desiccant per Condensation Control in Cases. File the cleaning record with the case or in storage as the baseline for next service. Proper drying and storage close the loop and secure the next transit cycle. Drying and storage should mind stacking compatibility. Clean cases stacked on a rack must have a grit free base so the upper box does not scar the lower top and carry contamination; stacking points are in warehouse stacking moisture cases. Cases with electronic locks or humidity modules need battery and sensor status confirmed before long storage. Label desiccant bags with change date and manage them visually. Electronically link the cleaning file to the case QR for any user to trace last clean time and state, truly closing the loop from clean, dry to stored with continuous improvement built in.
FAQ
Q: What cleaner should I use on a protective case? A: Daily use is pH neutral dish soap or a dedicated plastic cleaner; oil takes a neutral degreaser and unknown chemical residue takes its matching neutralizer. Never use gasoline, banana oil, xylene or acetone, which swell or crack engineering plastic and rubber seals; chlorine bleach accelerates metal corrosion and print loss over time, and wire wool or abrasive paste scratches the shell. Verify cleaner compatibility with the shell material before broad use. Silicone and EPDM seals tolerate alcohol briefly but must be dried at once and never soaked, or they lose elasticity and seal performance in the field. Keep a small labeled kit of approved agents at the wash station so nobody reaches for an untested solvent under time pressure. Mix only per label directions, never blend products, and keep safety data sheets in the same folder as the cleaning log so audits find everything together. Replace any agent past its printed expiry date.
Q: Can I wipe the gasket with alcohol? A: You can use an isopropanol pad briefly on local stubborn spots like resin or sap, but keep contact short, wipe residue off at once with a damp cloth and dry fully; never soak. Petroleum solvents such as gasoline or oil are absolutely forbidden because rubber swells and loses spring. After cleaning, pass a damp cloth and dry thoroughly so no detergent remains in the groove, then thin silicone oil as care. If the seal is already hard or cracked, assess replacement rather than keep patching, since a compromised gasket cannot hold the rated ingress protection under real transit stress. Store alcohol pads sealed and check the expiry date, because dried pads scratch instead of clean. Work on one small section at a time and keep a fresh cloth for the final pass, so residue never dries back onto the rubber during long cleaning sessions at the bench. Ventilate the work area well.
Q: How often should cleaning happen? A: Frequency grades by use intensity and soil. Cases in frequent outdoor or salt spray service should be cleaned after every return; workshop and medical scenes clean by shift or task cycle; long stored cases can run quarterly but open and inspect every two months. The rule is clean on contact, because fresh soil is easiest and dried soil costs far more. Align frequency with the maintenance cycle to avoid repeated opening that needlessly wears the seal and raises contamination risk during each unnecessary access to the interior. Keep a simple wall chart that maps each case family to its interval, so new staff apply the same rule without asking. After heavy events like a dust storm or a saltwater trip, clean early instead of waiting for the scheduled date, and note the extra service in the log. Consistency beats heroic deep cleans. Review the chart with the team each quarter.
Q: Can I wash a foam liner with water? A: Open cell polyurethane and cross linked polyethylene foam should not be fully washed, because they swell and dry slowly when wet and can harbor mold inside. Instead dry brush the surface, blow recess crumbs out at low air, and blot water soluble stains with a wrung cloth, never soak. Removable liners go to a ventilated area for tapping out dust; heavily soiled ones are cheaper to replace than to wash repeatedly. After any cleaning, shade dry fully with desiccant and confirm no moisture before refitting, or mold will grow in the closed cavity. Label replacement liners with the cleaning date so the next user knows the history at a glance. Keep spare foam in sealed bags away from dust, and cut new cavities only on a clean bench, since debris pressed into fresh foam is almost impossible to remove later. Dry brushing first always helps. Shade drying always beats forced heat.
Q: What is special about cleaning a medical device case? A: Medicine and biological sample cases must treat cleaning as hygiene management with a log of date, agent, operator and reviewer plus before after photos. Use food or medical grade neutral cleaner and verify no residue after rinse; wipe reachable interior surfaces with alcohol based disinfectant and let it fully evaporate. Dedicate cases by cargo or grade by risk, and fully decontaminate before reuse. Run periodic microbial swab checks against the medical case series standard so the interior is always acceptable when opened for the next patient or sample handling task. Train at least two people per shift on the log format so coverage never depends on one person. Keep swab test results with the batch record, and escalate any failed check to quality rather than quietly repeating the clean, because repeated failures usually trace to a worn seal or a hidden residue source. Good documentation is part of the clean itself.
Q: How do I clear a clogged pressure valve? A: Brush loose dust from the body, then clear the vent from outside in with a fine needle or compressed air, but never enlarge the hole or you lose the relief setpoint and the seal behaves wrongly. Valves with a screen come apart for a water rinse, dry and refit; seat soil lifts with a water damped swab, no solvent. After cleaning, test open close for lively rebound and free venting, and fit a spare cap if the original is lost. Replace the valve only with the original bore size to keep seal continuity, and raise frequency for air or altitude heavy users. Never oil the vent, because lubricant gathers dust and blocks the passage within weeks. Keep a small brush and a needle taped inside the maintenance kit lid so the job can be done on the road. If several valves clog in the same month, review the storage environment instead of blaming the parts. Blocked vents quietly strain lid seals over time.
Q: Can I just lock the case after cleaning? A: No, never clamp it tight at once. Every part must be fully dry before assembly; blot shell and seal with lint free cloth then shade dry in ventilated shade, avoiding sun that stresses plastic. Undried foam must not be refitted. Assemble liner first, then equipment with pockets seated and ports up, then close. Long idle cases should loosen latches every two months for seal rebound. Sealing while damp lets condensation form under temperature swing and grow mold, undoing the cleaning, so drying is the necessary final step of the loop. Set a timer for drying rather than guessing, because a lid closed an hour early is a lid closed wet. Point a small fan across the open case in humid weather, and keep the keys out of the lock until the seal has fully rebounded, so nobody is tempted to stack early. Patience here protects everything downstream. Dry fully, then close once.
Q: Does metal shell cleaning differ from plastic? A: Yes. Plastic shells take neutral detergent but not strong solvent; clean with soft cloth and neutral liquid, and treat stubborn spots with brief isopropanol locally. Metal shells need drying and rust proofing after degreasing, with early rust lightly sanded, painted and sealed. Both ban wire wool and abrasive paste that scratch surfaces. Plastic fears sun stress cracks, metal fears salt rust, so drying and storage differ; metal cases belong on ventilated racks not on the floor, per metal toolbox rust prevention and the storage rules already cited above for safe housing. Use separate cloths for metal and plastic benches to avoid cross contamination of residues. After any rust treatment, record the affected zone in the case history so the next inspection looks there first. In coastal depots, shorten the metal shell interval noticeably, because salt films form even indoors near open doors. Rust spreads quietly under paint. Early attention keeps repairs small. Inspect monthly at minimum.
